Product Reference
Environment Indoor
Installation Ceiling Recess
Construction & Materials
Housing Aluminium
Primary Lens Polycarbonate
Primary Reflector PC metallised
Secondary Reflector -
Body Finish White,Black,Custom
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed Asymmetric
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 3.4W
System Power Watts 4.2W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted CREE COB LED 36Vdc/130mA
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,CASAMBI,Non Dimmable

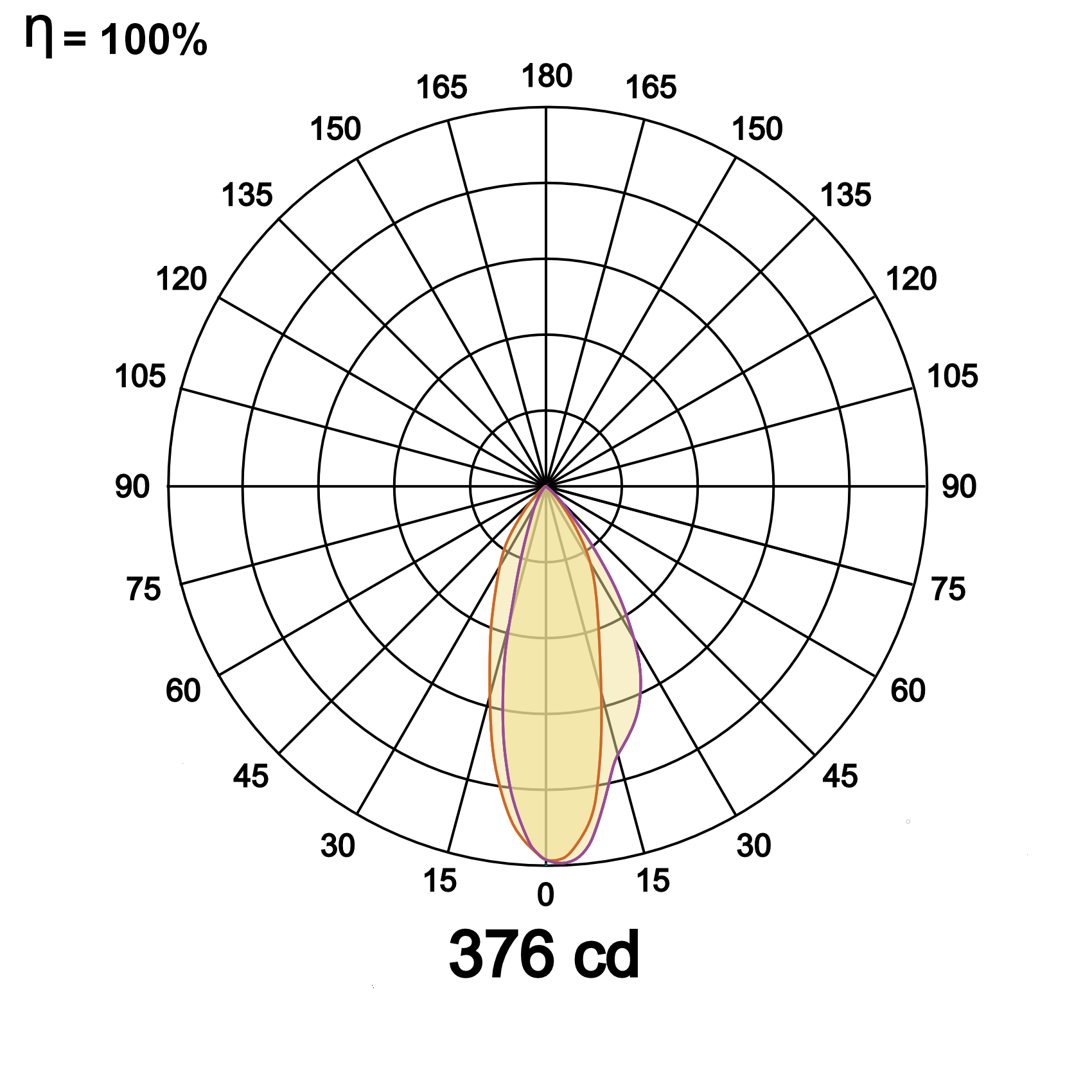

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Tiny Wash | 5W | WW27K | CRI80 | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tiny Wash | 5W | 218 | 52 | 2700K | WW27K | CRI80 | White | SWH | Non Dimmable | On/Off | |
| 231 | 55 | 3000K | WW30K | CRI90 | Black | SBL | Phase Dimmable | PDIM | |||
| 244 | 58 | 4000K | NW40K | Custom | CSM | Dali Dimmable | DDIM | ||||
| 252 | 60 | 5700K | CW57K | Casambi | CBTM | ||||||
| Tiny Wash | 5W | WW27K | CRI80 | SWH | On/Off | ||||||
