Product Reference
Environment Indoor
Installation Ceiling Recess
Construction & Materials
Housing Aluminium
Primary Lens Polycarbonate
Primary Reflector PC metallised
Secondary Reflector -
Body Finish White,Black,Custom
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 7.1W
System Power Watts 8.2W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted CREE COB LED 36Vdc/180mA
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

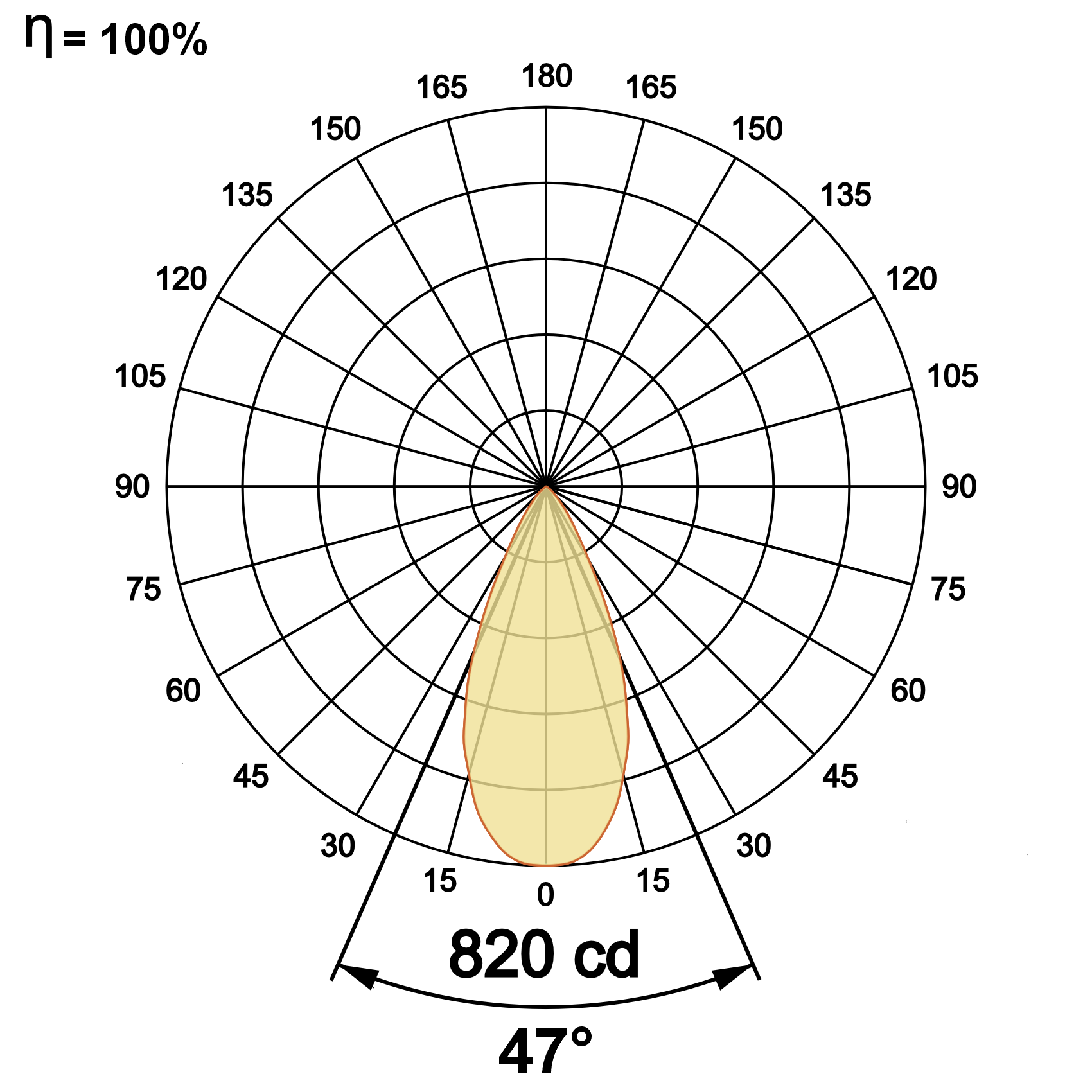

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Tiny DR | 8W | WW27K | CRI80 | 34°(MD) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Tiny DR | 8W | 508 | 62 | 2700K | WW27K | CRI80 | 34°(MD) | White | SWH | Non Dimmable | On/Off |
| 525 | 64 | 3000K | WW30K | CRI90 | 47°(WD) | Black | SBL | Phase Dimmable | PDIM | ||
| 549 | 67 | 4000K | NW40K | Custom | CSM | Dali Dimmable | DDIM | ||||
| 566 | 69 | 5700K | CW57K | Bluetooth Dimmable | BTTM | ||||||
| 2700K-5700K | TW | Casambi | CBTM | ||||||||
| Warm to Dim | W2D | ||||||||||
| Tiny DR | 8W | WW27K | CRI80 | 34°(MD) | SWH | On/Off | |||||
