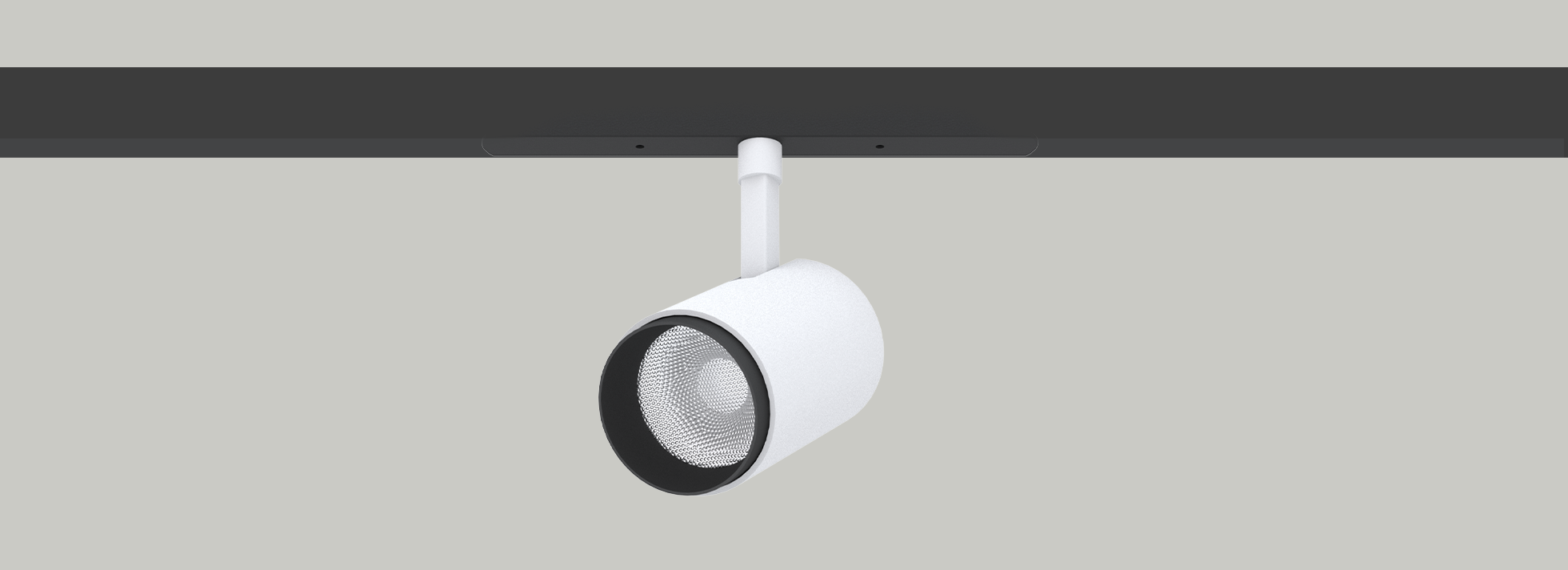

Product Reference
Environment Indoor
Installation Track Mounted
Construction & Materials
Housing Die Cast Aluminium,Milled Aluminium
Primary Lens PMMA
Primary Reflector -
Secondary Reflector -
Body Finish White,Black
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Adjustable
Tilt Yes
Swivel Yes
Electrical System
Driven with Constant Voltage Driver
Input Voltage/Hz 48V
Control Gear Included
Mounting Remote
LED Power Watts 12.6W
System Power Watts -
Operating Voltage Vin 48V
Power Factor p.f. -
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted Cree COB LED 33V-36Vdc/350mA
Controls
Standard Switchable On/Off
Optional DDIM,BTTM,CASAMBI,Non Dimmable
Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Spotboy 48V 50 | 12.6W | WW27K | CRI80 | 23°(SS) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Spotboy 48V 50 | 12.6W | 1508 | 120 | 2700K | WW27K | CRI80 | 23°(SS) | White | SWH | Non Dimmable | On/Off |
| 1552 | 123 | 3000K | WW30K | CRI90 | 30°(MD) | Black | SBL | Dali Dimmable | DDIM | ||
| 1624 | 129 | 4000K | NW40K | 33°(WD) | Bluetooth Dimmable | BTTM | |||||
| 1653 | 131 | 5700K | CW57K | 50°(VWD) | Casambi | CBTM | |||||
| 2700K-5700K | TW | ||||||||||
| Warm to Dim | W2D | ||||||||||
| Spotboy 48V 50 | 12.6W | WW27K | CRI80 | 23°(SS) | SWH | On/Off | |||||
