Skylight MPD 22 | 30W

Product Reference

Environment Indoor

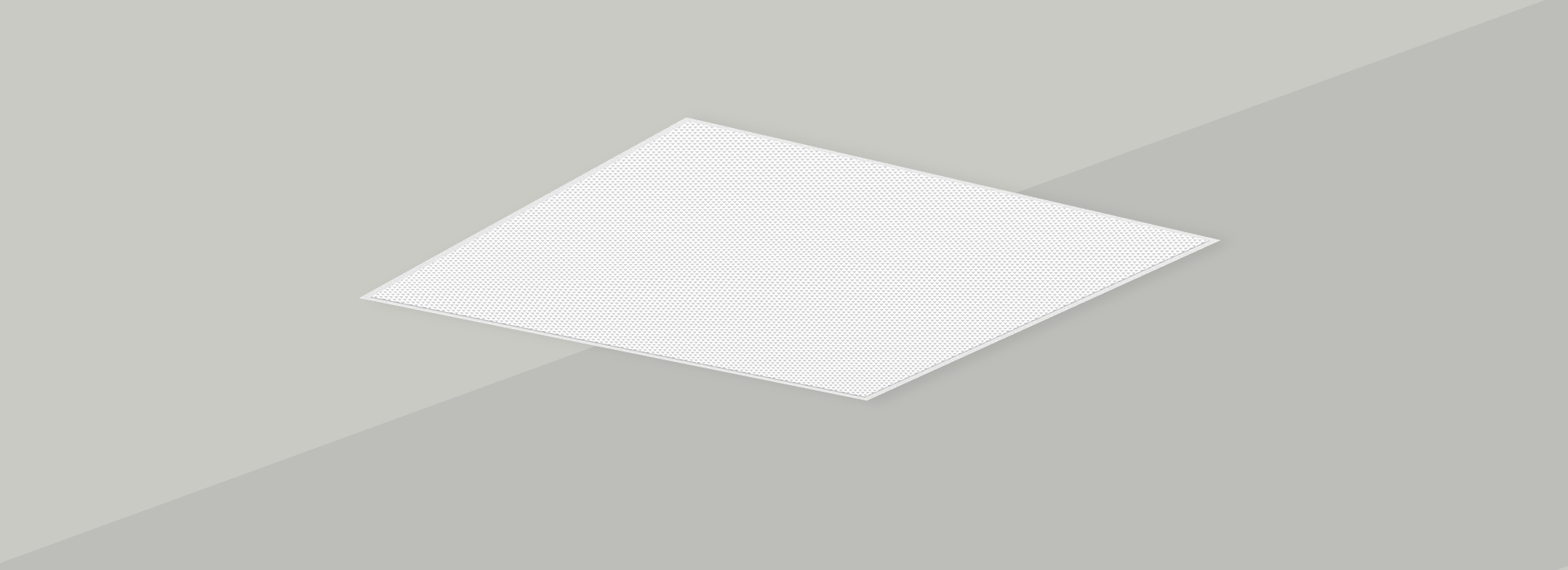

Installation Ceiling Recess

Construction & Materials

Housing Mild Steel

Primary Lens -

Primary Reflector -

Secondary Reflector -

Body Finish White

Diffuser Microprismatic

Antiglare Baffle -

Thermal Management

Heat Sink Material CRCA

Cooling Technique Passive Cooling

Optical System

Beam Direction General Diffuse

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Remote

LED Power Watts 23.1W

System Power Watts 26.5W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid power LED array 30V-36Vdc/700mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Download Data Sheet

Back to Skylight family
Optional

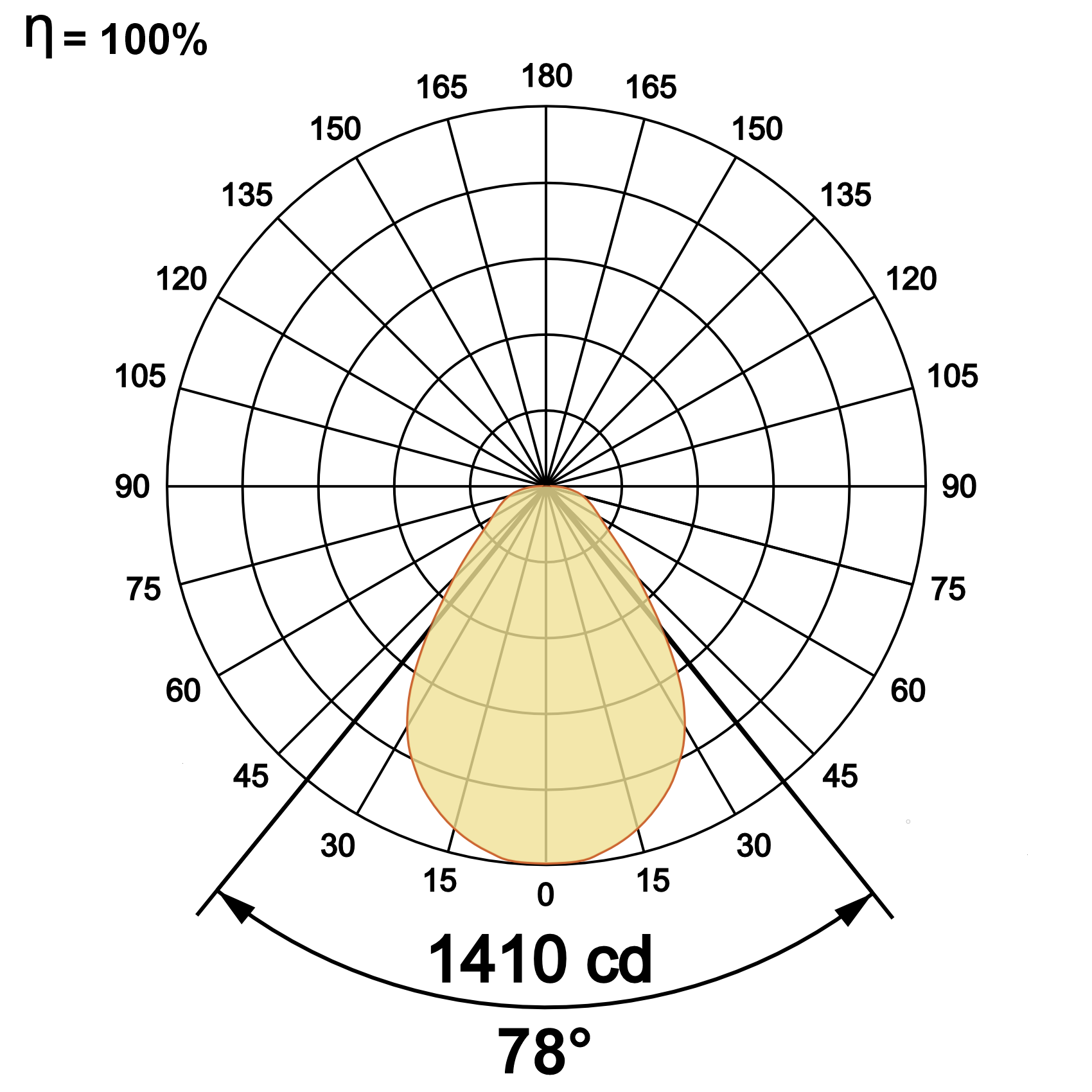

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Skylight MPD 22 30W WW27K CRI80 78° SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Skylight MPD 22 30W 2359 89 2700K WW27K CRI80 78° White SWH Non Dimmable On/Off
2465 93 3000K WW30K CRI90 Phase Dimmable PDIM
2624 99 4000K NW40K Dali Dimmable DDIM
2677 101 5700K CW57K Bluetooth Dimmable BTTM
2700K-5700K TW Casambi CBTM
Skylight MPD 22 30W WW27K CRI80 78° SWH On/Off
