Rio V2 | 22W

Product Reference

Environment Indoor

Installation Ceiling Recess

Construction & Materials

Housing Die Cast Aluminium

Primary Lens PMMA

Primary Reflector PC metallised

Secondary Reflector Anodised

Body Finish White,Black,Custom

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Remote

LED Power Watts 17.8W

System Power Watts 20.5W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted VS COB LED 36Vdc/500mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control

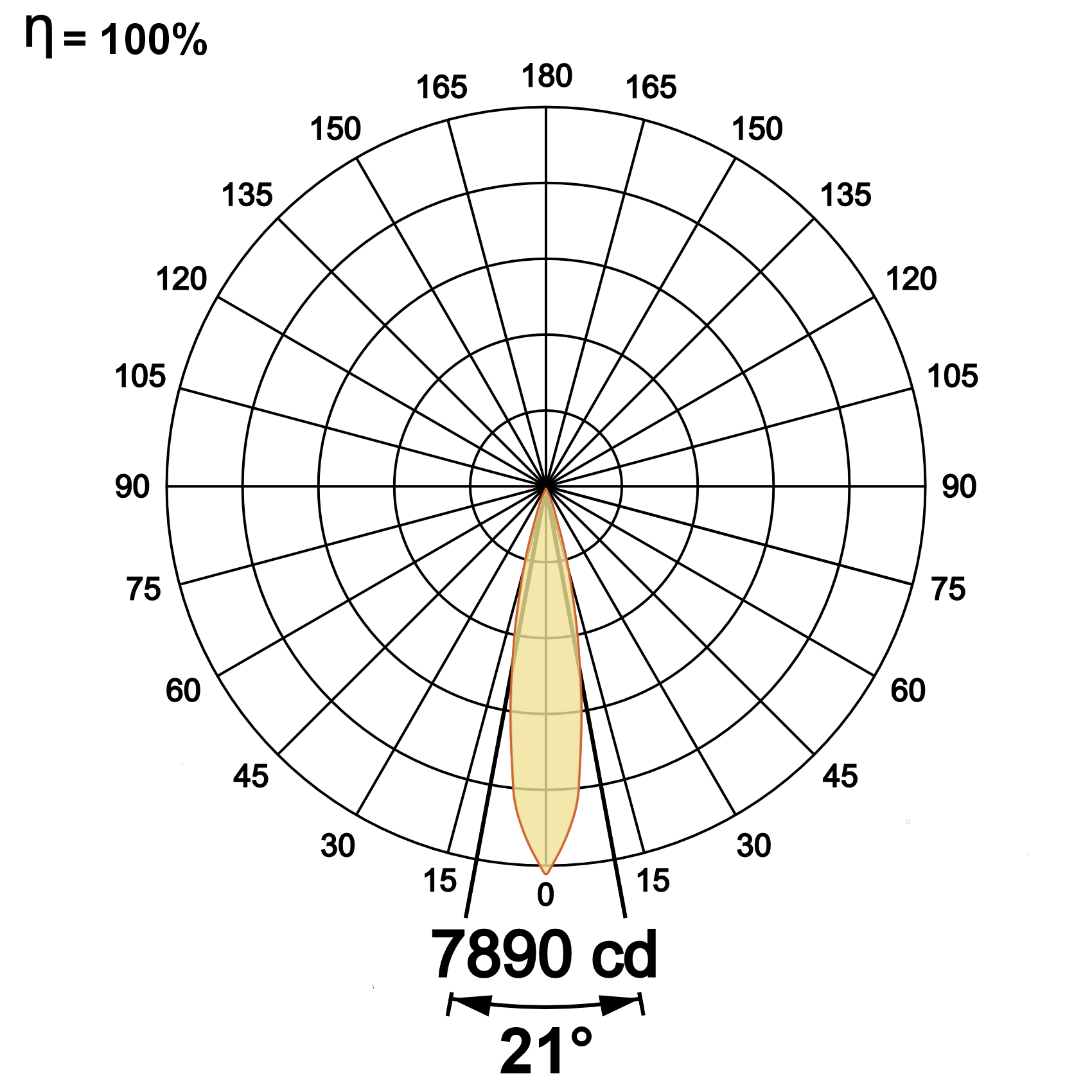

Rio V2 22W WW27K CRI80 21°(SS) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Rio V2 22W 1271 62 2700K WW27K CRI80 21°(SS) White SWH Non Dimmable On/Off
1312 64 3000K WW30K CRI90 26°(MD) Black SBL Phase Dimmable PDIM
1374 67 4000K NW40K 36°(WD) Custom CSM Dali Dimmable DDIM
1415 69 5700K CW57K Bluetooth Dimmable BTTM
2700K-5700K TW Casambi CBTM
Warm to Dim W2D
Rio V2 22W WW27K CRI80 21°(SS) SWH On/Off
