Product Reference
Environment Indoor
Installation Ceiling Recess
Construction & Materials
Housing Die Cast Aluminium
Primary Lens PMMA
Primary Reflector -
Secondary Reflector Anodised
Body Finish White,Black
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt Yes
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 15.3
System Power Watts 17.6
Operating Voltage Vin 220-240Vac
Power Factor p.f. >0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted -
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

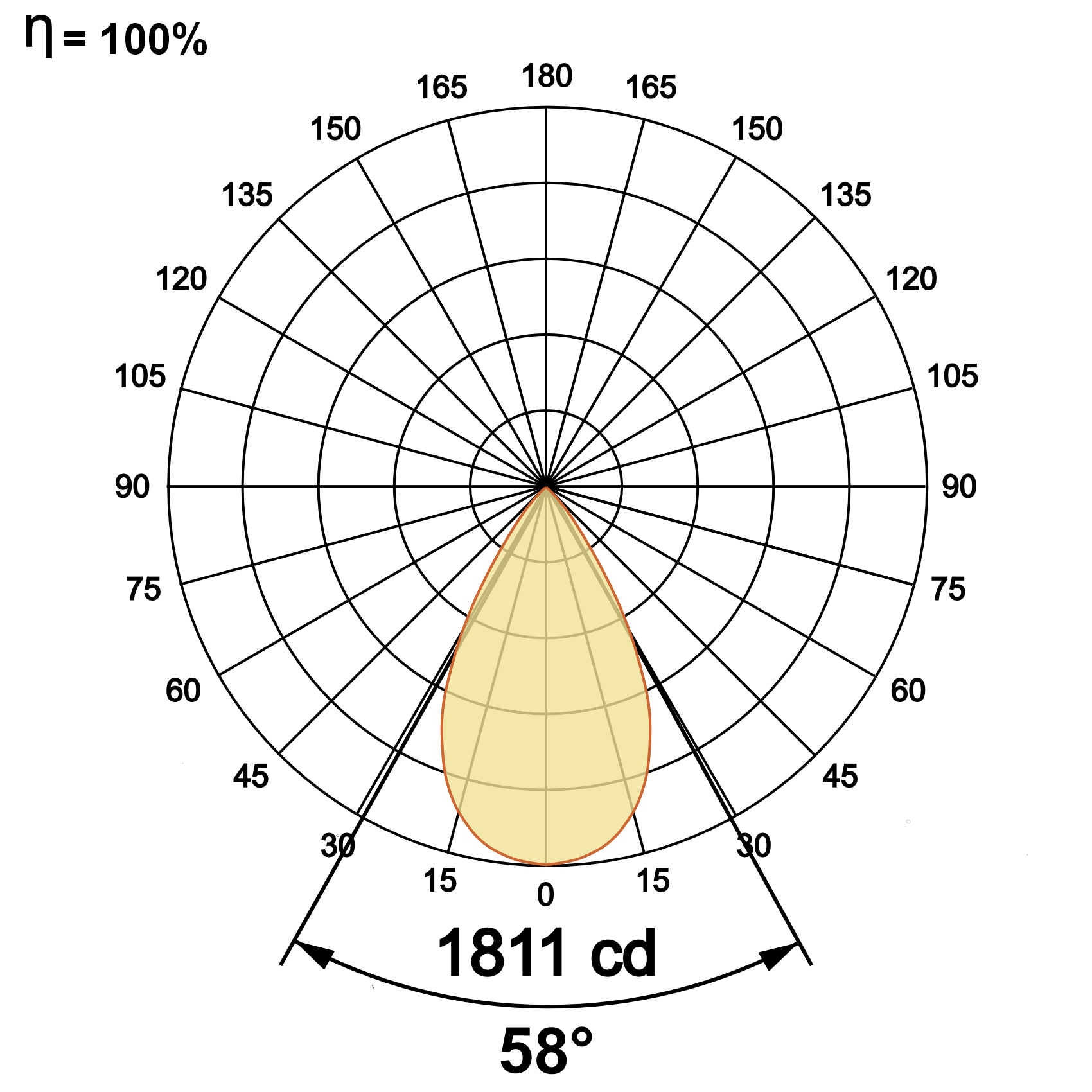

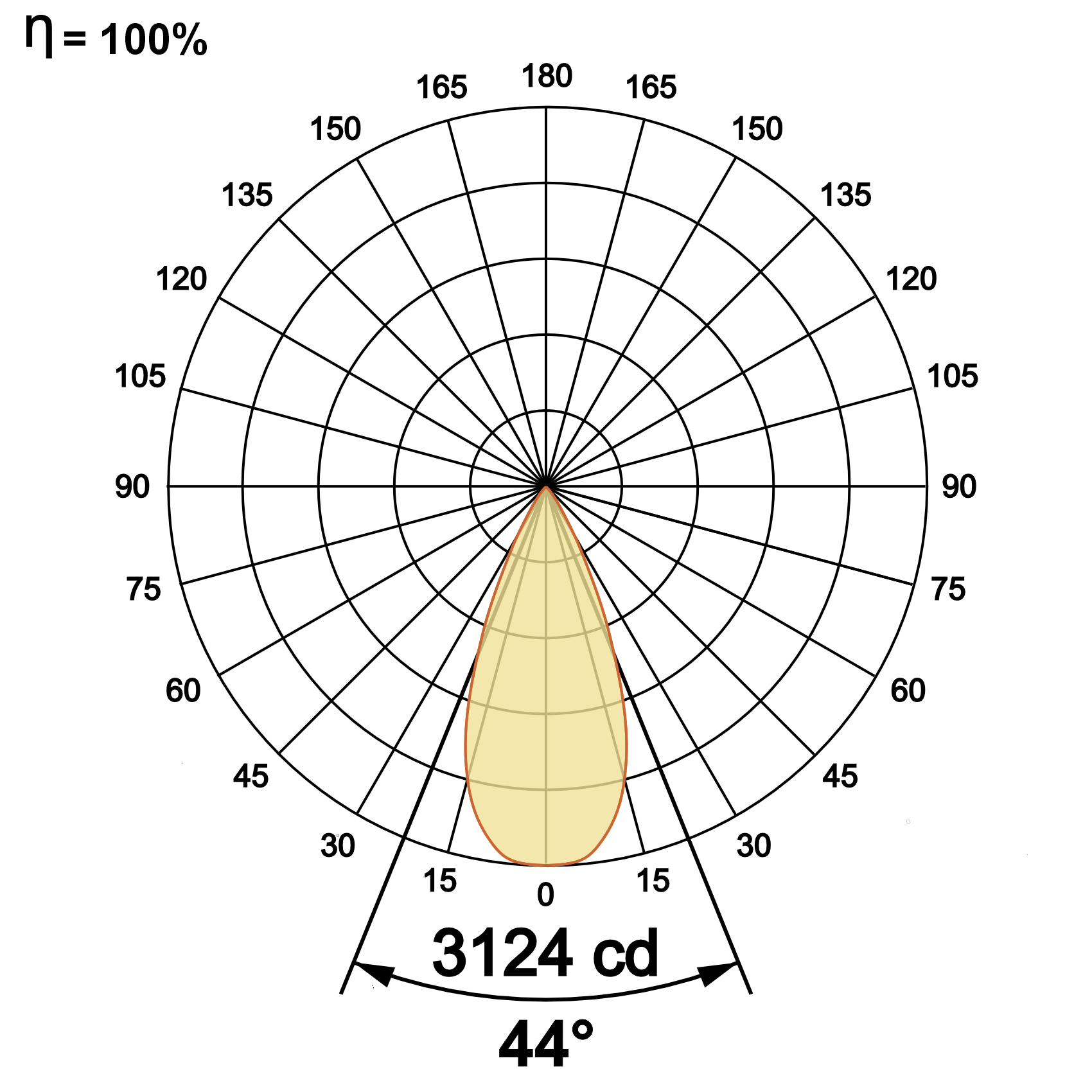

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| ProLed 75 | 18W | 2700K | CRI80 | 26°(MD) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ProLed 75 | 18W | 1426 | 81 | 2700K | 2700K | CRI80 | 26°(MD) | White | SWH | Non Dimmable | On/Off |
| 1478 | 84 | 3000K | 3000K | CRI90 | 44°(WD) | Black | SBL | Phase Dimmable | PDIM | ||
| 1549 | 88 | 4000K | 4000K | 58°(VWD) | Dali Dimmable | DDIM | |||||
| 1584 | 90 | 5700K | 5700K | Bluetooth Dimmable | BTTM | ||||||
| 2700K-5700K | 2700K-5700K | Casambi | CBTM | ||||||||
| Warm to Dim | Warm to Dim | ||||||||||
| ProLed 75 | 18W | 2700K | CRI80 | 26°(MD) | SWH | On/Off | |||||
