Product Reference
Environment Indoor

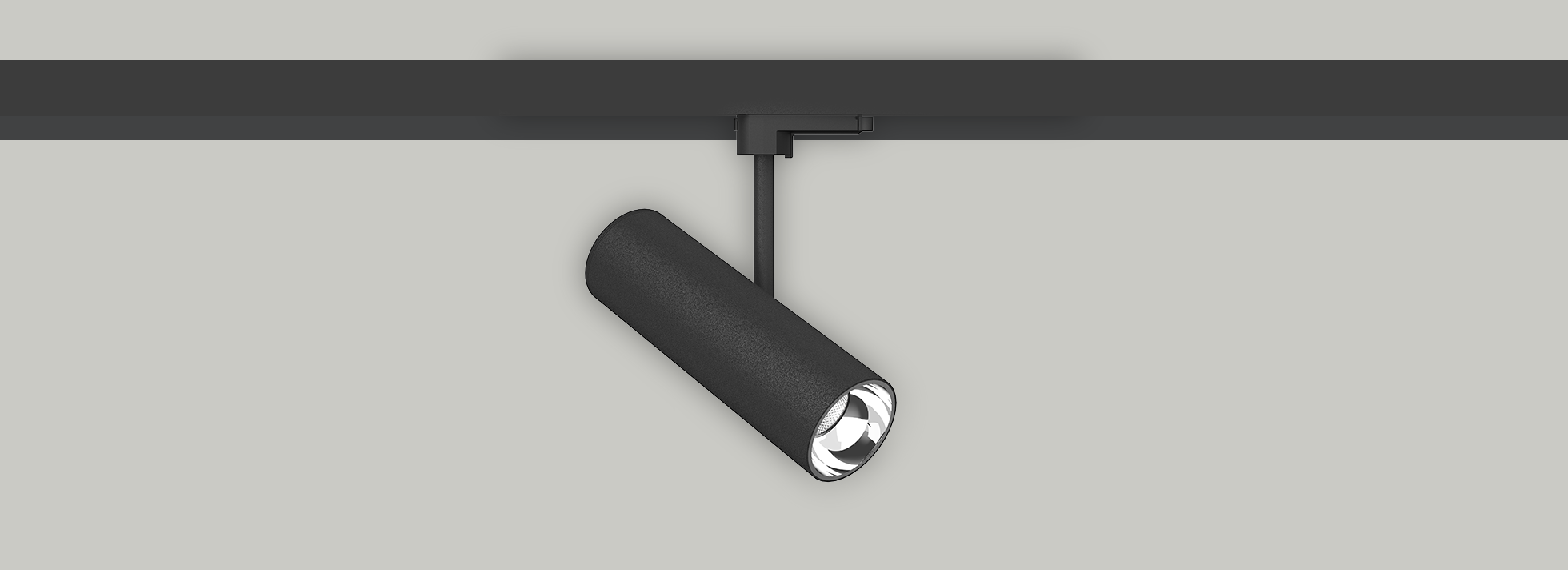

Installation Track Mounted
Construction & Materials
Housing Aluminium
Primary Lens PMMA
Primary Reflector PC metallised
Secondary Reflector -
Body Finish White,Black
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System

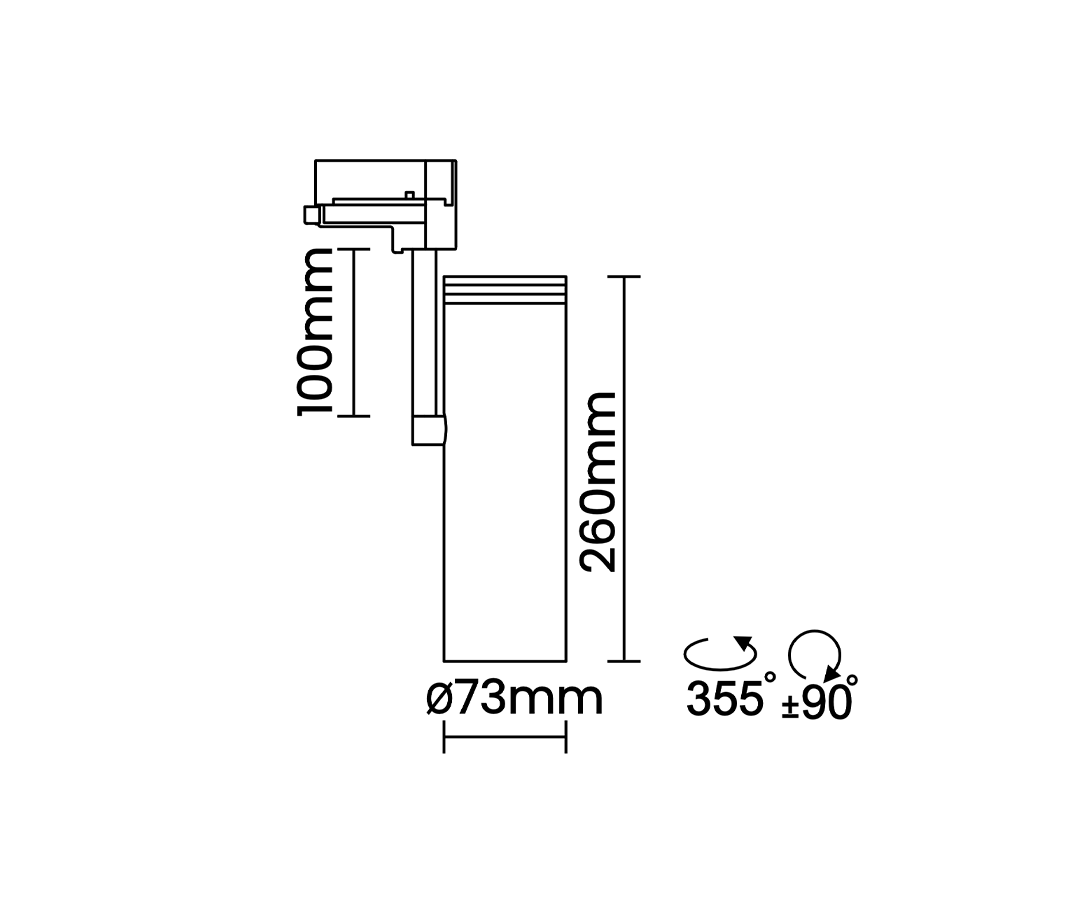

Beam Direction Adjustable
Tilt Yes
Swivel Yes
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 12.8W
System Power Watts 14.7W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted CREE COB LED 36Vdc/700mA
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,Non Dimmable

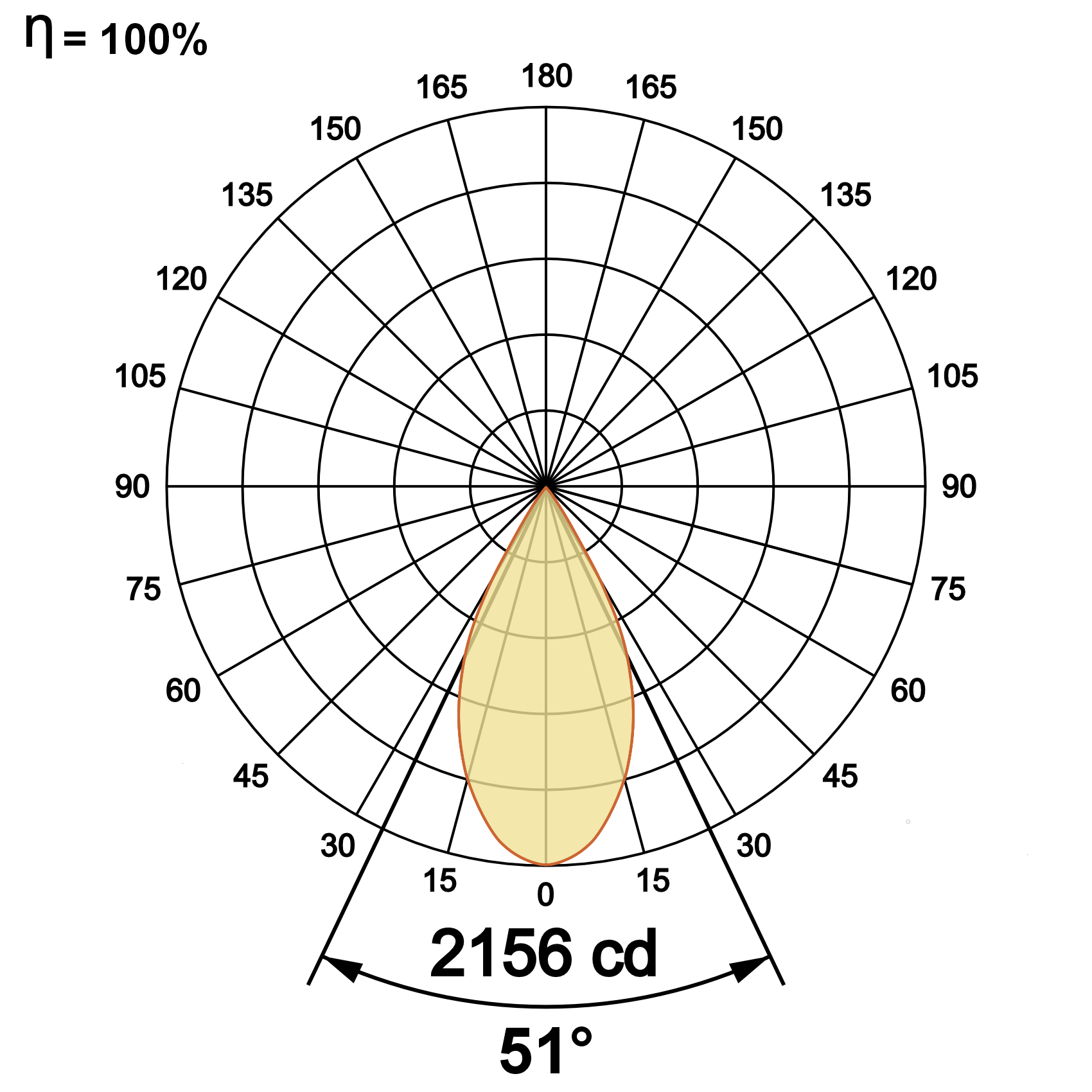

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Ovo Carbon TA | 15W | WW27K | CRI80 | 22°(SS) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Ovo Carbon TA | 15W | 1312 | 89 | 2700K | WW27K | CRI80 | 22°(SS) | White | SWH | Non Dimmable | On/Off |
| 1352 | 92 | 3000K | WW30K | CRI90 | 29°(MD) | Black | SBL | Phase Dimmable | PDIM | ||
| 1447 | 98 | 4000K | NW40K | 51°(WD) | Dali Dimmable | DDIM | |||||
| 1474 | 100 | 5700K | CW57K | ||||||||
| Warm to Dim | W2D | ||||||||||
| Ovo Carbon TA | 15W | WW27K | CRI80 | 22°(SS) | SWH | On/Off | |||||
