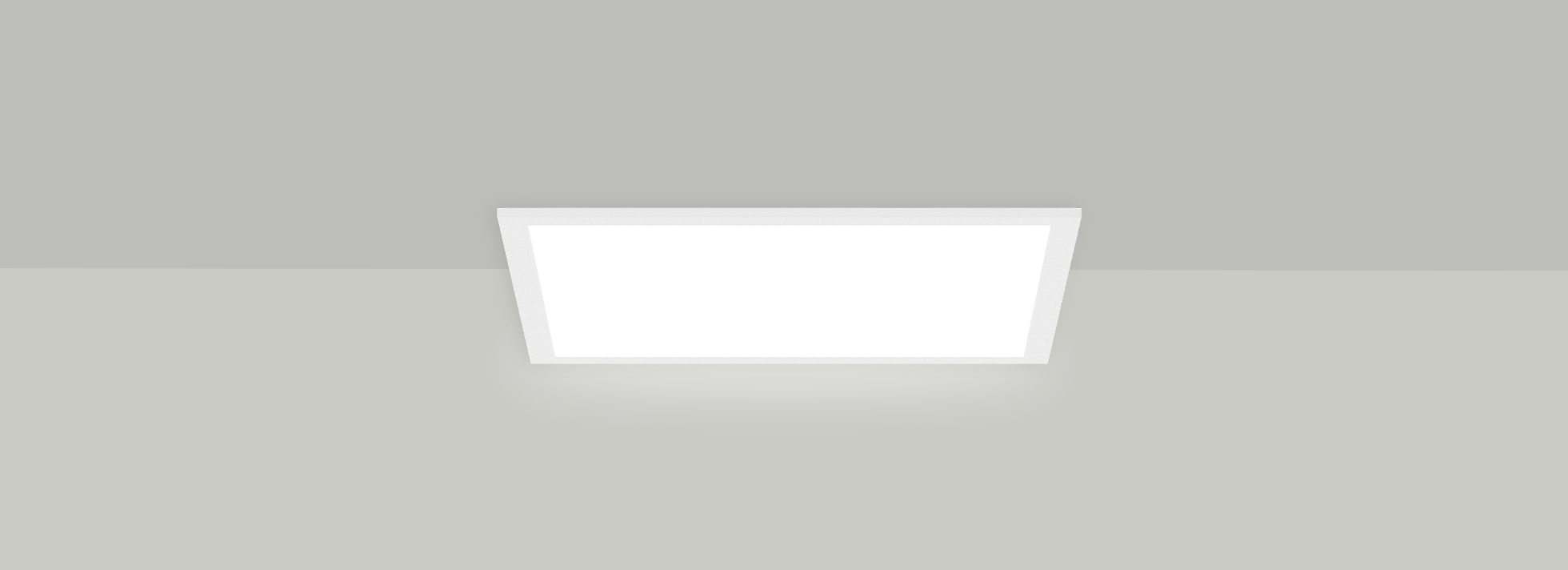

Nova 22 | 42W

Product Reference

Environment Indoor

Installation Ceiling Recess

Construction & Materials

Housing CRCA

Primary Lens -

Primary Reflector -

Secondary Reflector -

Body Finish White

Diffuser Premium high-transmission opal

Antiglare Baffle -

Thermal Management

Heat Sink Material -

Cooling Technique Passive Cooling

Optical System

Beam Direction General Diffuse

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Remote

LED Power Watts 36.0W

System Power Watts 41.4W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid power LED array 30V-38Vdc/1000mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Nova 22 42W WW27K CRI80 105° SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Nova 22 42W 4430 107 2700K WW27K CRI80 105° White SWH Non Dimmable On/Off
4554 110 3000K WW30K CRI90 Dali Dimmable DDIM
4844 117 4000K NW40K Bluetooth Dimmable BTTM
4968 120 5700K CW57K Casambi CBTM
Nova 22 42W WW27K CRI80 105° SWH On/Off
