Luke Pro 50 2Way | 2X20W

Product Reference

Environment Indoor

Installation Ceiling Recess

Construction & Materials

Housing Mild Steel

Primary Lens PMMA

Primary Reflector -

Secondary Reflector -

Body Finish White,Black,Custom

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Adjustable

Tilt Yes

Swivel Yes

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Remote

LED Power Watts 2x17.5W

System Power Watts 2x20.1W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted Cree COB LED 36Vdc/500mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Download Data Sheet

Back to Luke family
Optional

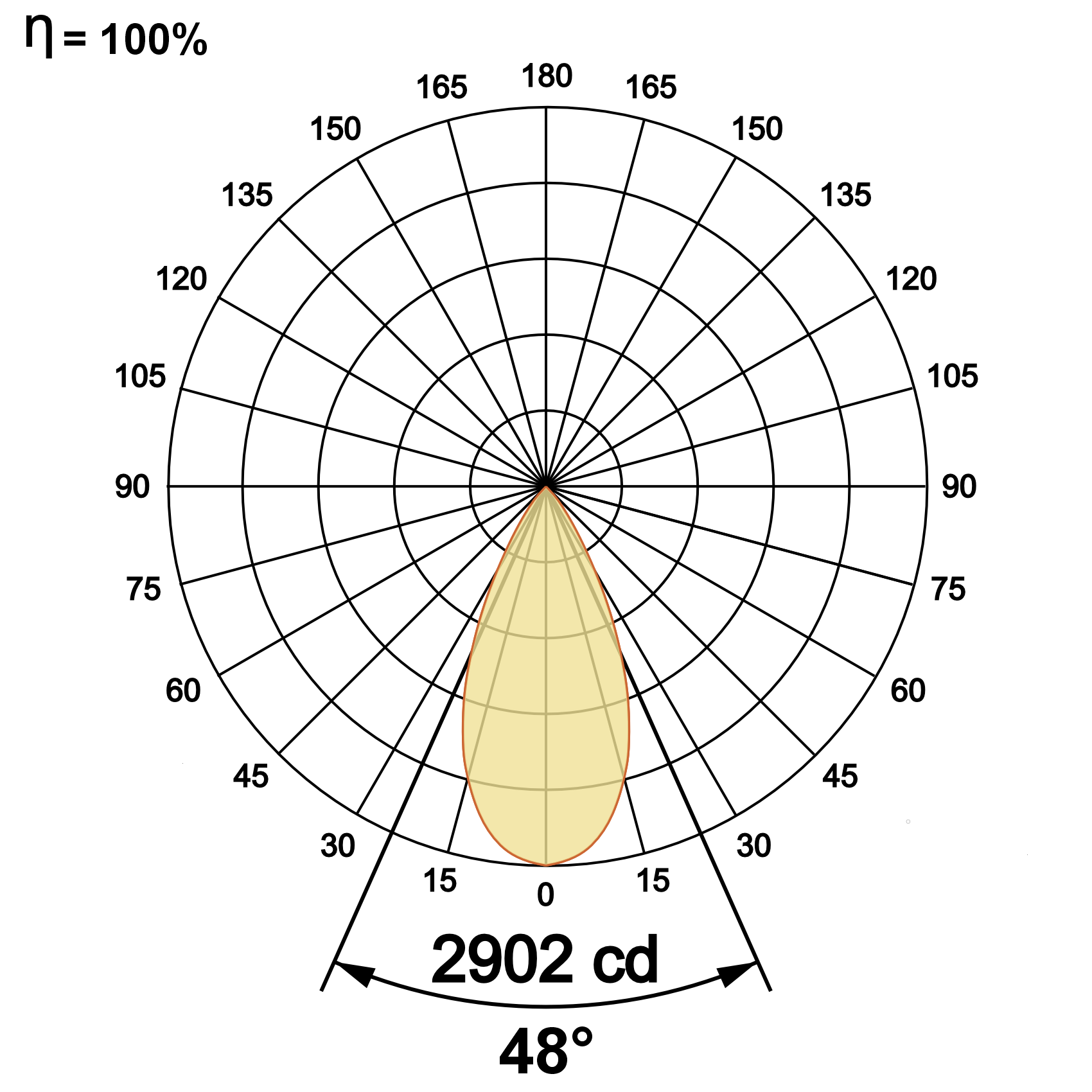

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Luke Pro 50 2Way 2X20W WW27K CRI80 25°(SS) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Luke Pro 50 2Way 2X20W 2x1869 93 2700K WW27K CRI80 25°(SS) White SWH Non Dimmable On/Off
2x1930 96 3000K WW30K CRI90 32°(MD) Black SBL Phase Dimmable PDIM
2x2030 101 4000K NW40K 35°(WD) Custom CSM Dali Dimmable DDIM
2x2070 103 5700K CW57K 48°(VWD) Bluetooth Dimmable BTTM
2700K-5700K TW Casambi CBTM
Warm to Dim W2D
Luke Pro 50 2Way 2X20W WW27K CRI80 25°(SS) SWH On/Off
