Product Reference
Environment Indoor
Installation Track Mounted
Construction & Materials
Housing Die Cast Aluminium
Primary Lens PMMA
Primary Reflector PC metallised
Secondary Reflector -
Body Finish White,Black
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Adjustable
Tilt Yes
Swivel Yes
Electrical System
Driven with Constant Voltage Driver
Input Voltage/Hz 48V
Control Gear Included
Mounting Remote
LED Power Watts 12.2W
System Power Watts -
Operating Voltage Vin 48V
Power Factor p.f. -
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted Cree COB LED 33V-36Vdc/350mA
Controls
Standard Switchable On/Off
Optional DDIM,BTTM,CASAMBI,Non Dimmable

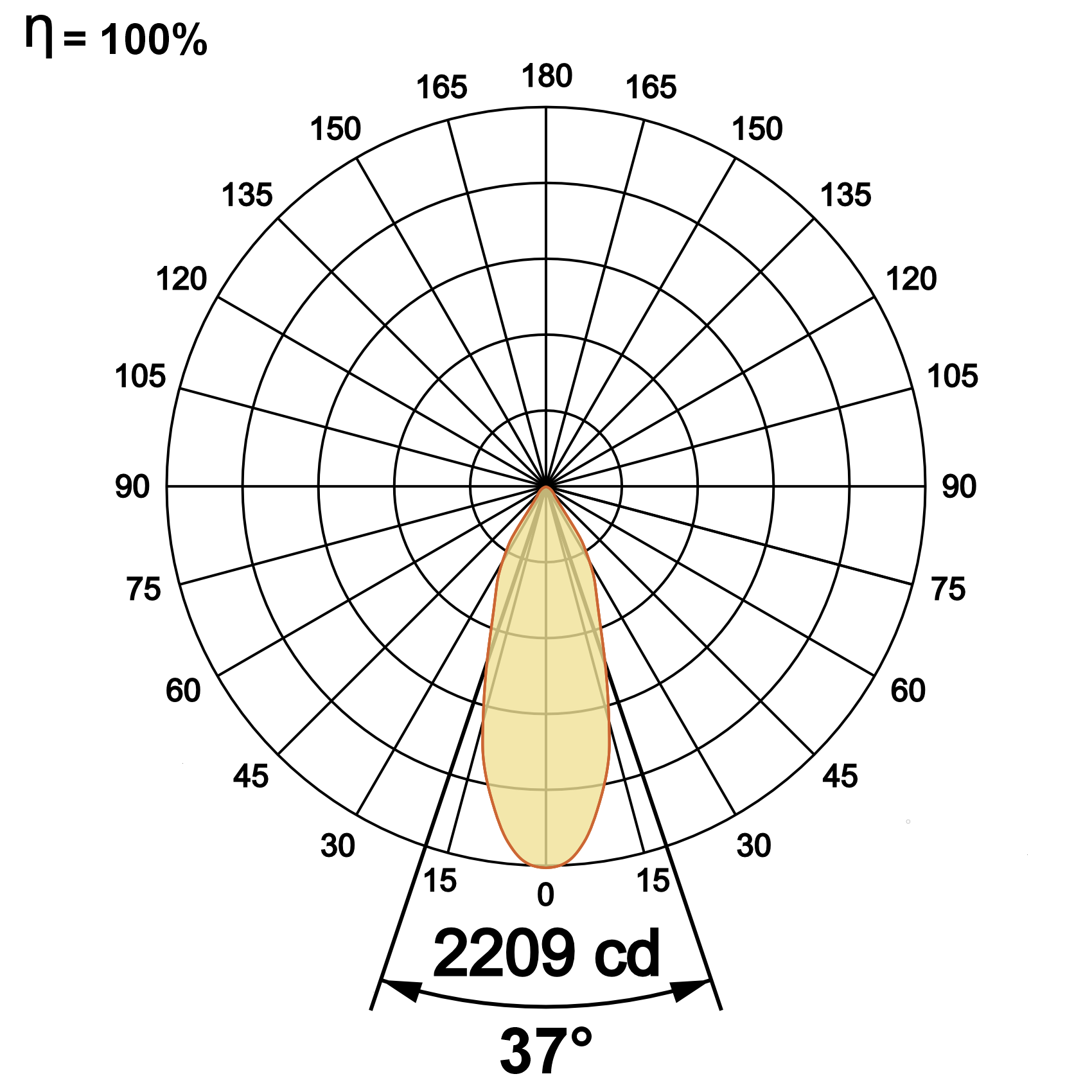

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Look Around 48V | 12.6W | WW27K | CRI80 | 20°(SS) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Look Around 48V | 12.6W | 1232 | 101 | 2700K | WW27K | CRI80 | 20°(SS) | White | SWH | Non Dimmable | On/Off |
| 1269 | 104 | 3000K | WW30K | CRI90 | 27°(MD) | Black | SBL | Dali Dimmable | DDIM | ||
| 1330 | 109 | 4000K | NW40K | 37°(WD) | Bluetooth Dimmable | BTTM | |||||
| 1354 | 111 | 5700K | CW57K | Casambi | CBTM | ||||||
| 2700K-5700K | TW | ||||||||||
| Warm to Dim | W2D | ||||||||||
| Look Around 48V | 12.6W | WW27K | CRI80 | 20°(SS) | SWH | On/Off | |||||
