Product Reference
Environment Indoor
Installation Track Mounted
Construction & Materials
Housing Extruded Aluminium
Primary Lens -
Primary Reflector -
Secondary Reflector -
Body Finish Black
Diffuser Premium high-transmission opal
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Voltage Driver
Input Voltage/Hz 48V
Control Gear Included
Mounting Remote
LED Power Watts 23.6W
System Power Watts -
Operating Voltage Vin 48V
Power Factor p.f. -
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Samsung Mid power LED array 33V-36Vdc/700mA
Controls
Standard Switchable On/Off
Optional DDIM,BTTM,CASAMBI,Non Dimmable

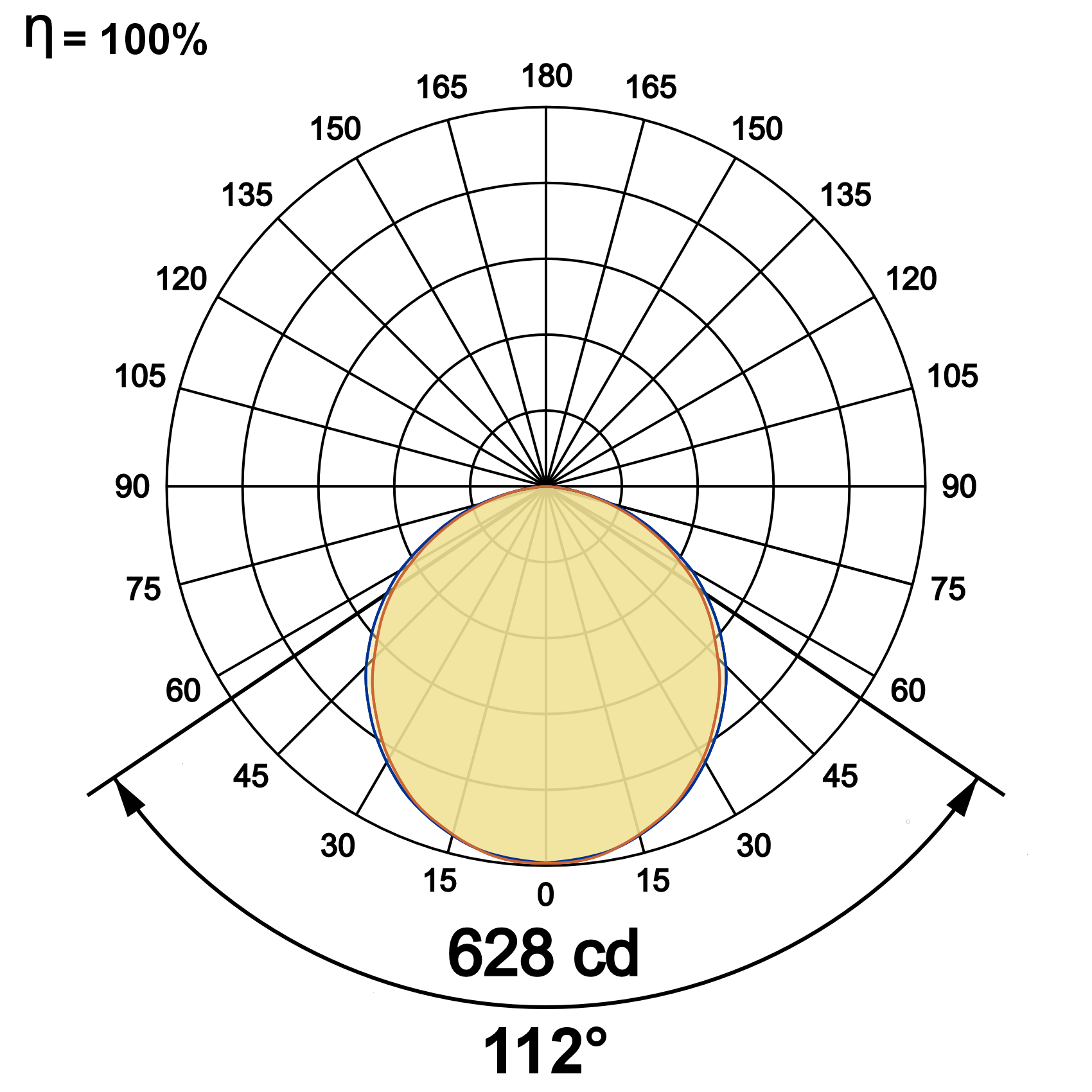

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Linea Magic 48V 120 | 25.2W | WW27K | CRI80 | 112° | SBL | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Linea Magic 48V 120 | 25.2W | 1723 | 73 | 2700K | WW27K | CRI80 | 112° | Black | SBL | Non Dimmable | On/Off |
| 1770 | 75 | 3000K | WW30K | CRI90 | Dali Dimmable | DDIM | |||||
| 1864 | 79 | 4000K | NW40K | Bluetooth Dimmable | BTTM | ||||||
| 1912 | 81 | 5700K | CW57K | Casambi | CBTM | ||||||
| 2700K-5700K | TW | ||||||||||
| Linea Magic 48V 120 | 25.2W | WW27K | CRI80 | 112° | SBL | On/Off | |||||
