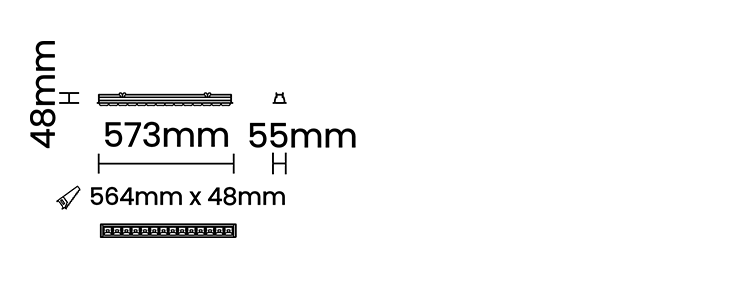

iWash R 56 | 24W
Product Reference
Environment
Indoor
Installation
Ceiling Recess
Housing
Extruded Aluminium
Primary Lens
PMMA
Primary Reflector
PC metallised
Secondary Reflector
Black Raster – PC,White Raster – PC
Body Finish
White,Black,Custom
Diffuser
-
Antiglare Baffle
-
Heat Sink Material
Extruded Aluminium
Cooling Technique
Passive Cooling
Beam Direction
Fixed Asymmetric
Tilt
No
Swivel
No
Driven with
Constant Current Driver
Input Voltage/Hz
220V- 240V/50-60Hz
Control Gear
Included
Mounting
Remote
LED Power Watts
20.7W
System Power Watts
23.8W
Operating Voltage Vin
220-240 Vac
Power Factor p.f.
> 0.95
Binning
3 Step MacAdam
LED Life Time @ L70/B10
>50000 hours
Colour Rendering (CRI)
CRI80,CRI90
Led Type
SMD
LED Fitted
Samsung Mid power LED array 39-42Vdc/500mA
Standard Switchable
On/Off
Optional
DDIM,BTTM,CASAMBI,Non Dimmable
