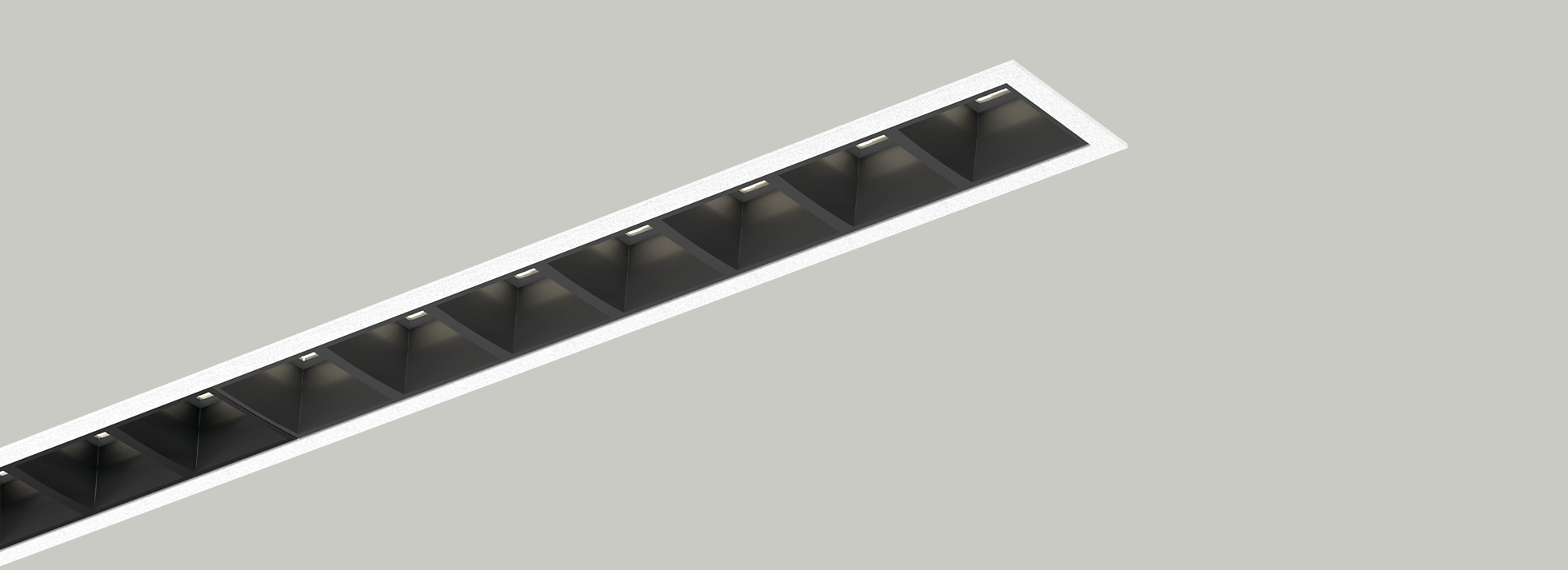

iPro R 168 | 72W

Product Reference

Environment Indoor

Installation Ceiling Recess

Construction & Materials

Housing Extruded Aluminium

Primary Lens PMMA

Primary Reflector -

Secondary Reflector Black Raster – PC,White Raster – PC

Body Finish White,Black,Custom

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Extruded Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Remote

LED Power Watts 60.8W

System Power Watts 69.9W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD

LED Fitted Samsung Mid power LED array 39-42Vdc/1550mA


Standard Switchable On/Off

Optional DDIM,BTTM,CASAMBI,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
iPro R 168 72W WW27K CRI80 52°(WD) SWH On/Off

Select one from each column with highlighted values to create the ordering code

iPro R 168 72W 7549 108 2700K WW27K CRI80 52°(WD) White SWH Non Dimmable On/Off
7759 111 3000K WW30K CRI90 82°(VWD) Black SBL Dali Dimmable DDIM
8178 117 4000K NW40K Custom CSM Bluetooth Dimmable BTTM
8318 119 5700K CW57K Casambi CBTM
2700K-5700K TW
iPro R 168 72W WW27K CRI80 52°(WD) SWH On/Off
