Product Reference
Environment Indoor
Installation Ceiling Suspended
Construction & Materials
Housing Extruded Aluminium
Primary Lens -
Primary Reflector PC metallised
Secondary Reflector Black Raster – PC
Body Finish White,Black,Custom
Diffuser PMMA Frosted
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 77.6W
System Power Watts 89.2W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD high power
LED Fitted Osram/Cree 3030 LED 33V-36Vdc/2250mA
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

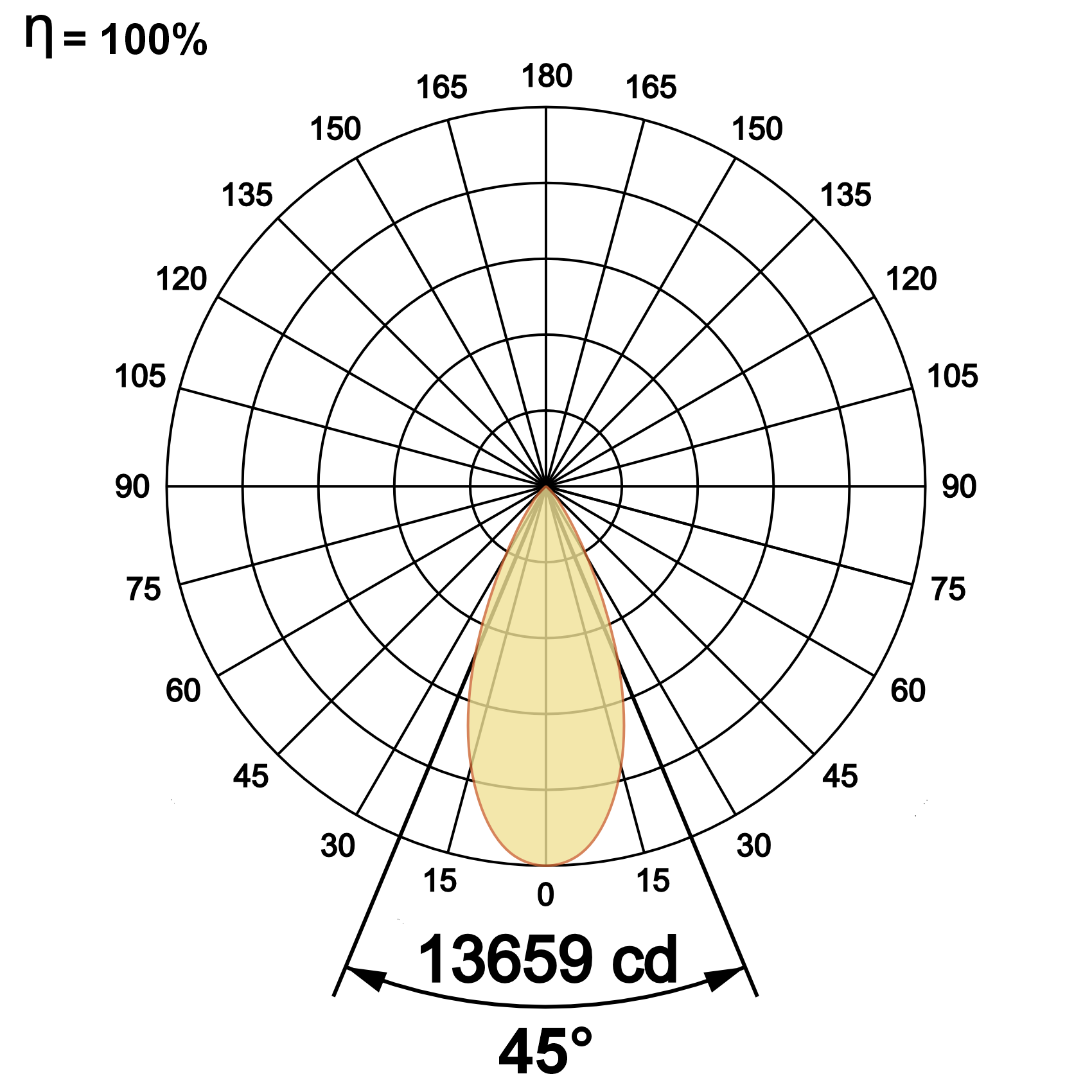

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Hoopla Dark 150 | 90W | WW27K | CRI80 | 45° | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Hoopla Dark 150 | 90W | 7671 | 86 | 2700K | WW27K | CRI80 | 45° | White | SWH | Non Dimmable | On/Off |
| 7939 | 89 | 3000K | WW30K | CRI90 | Black | SBL | Phase Dimmable | PDIM | |||
| 8296 | 93 | 4000K | NW40K | Custom | CSM | Dali Dimmable | DDIM | ||||
| 8474 | 95 | 5700K | CW57K | Bluetooth Dimmable | BTTM | ||||||
| Casambi | CBTM | ||||||||||
| Hoopla Dark 150 | 90W | WW27K | CRI80 | 45° | SWH | On/Off | |||||
