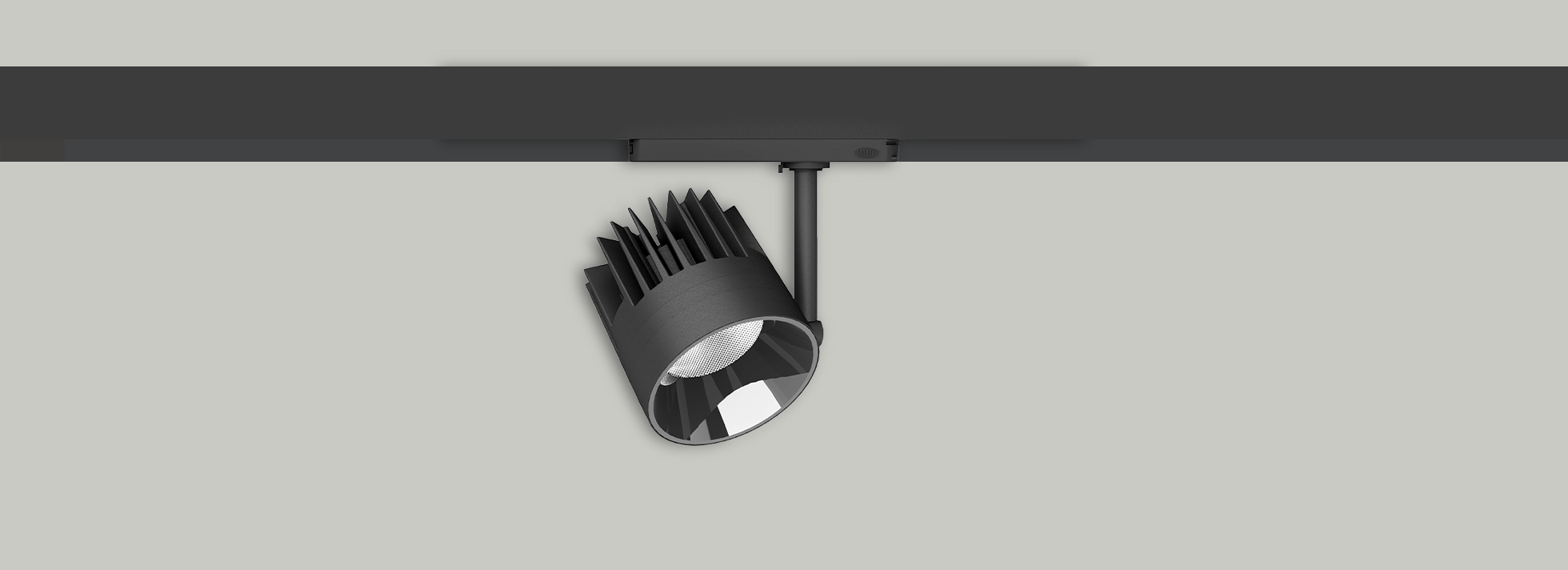

Go Pro 70 ITA | 36W

Product Reference

Environment Indoor

Installation Track Mounted

Construction & Materials

Housing Die Cast Aluminium

Primary Lens PMMA

Primary Reflector -

Secondary Reflector Anodised

Body Finish White,Black

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

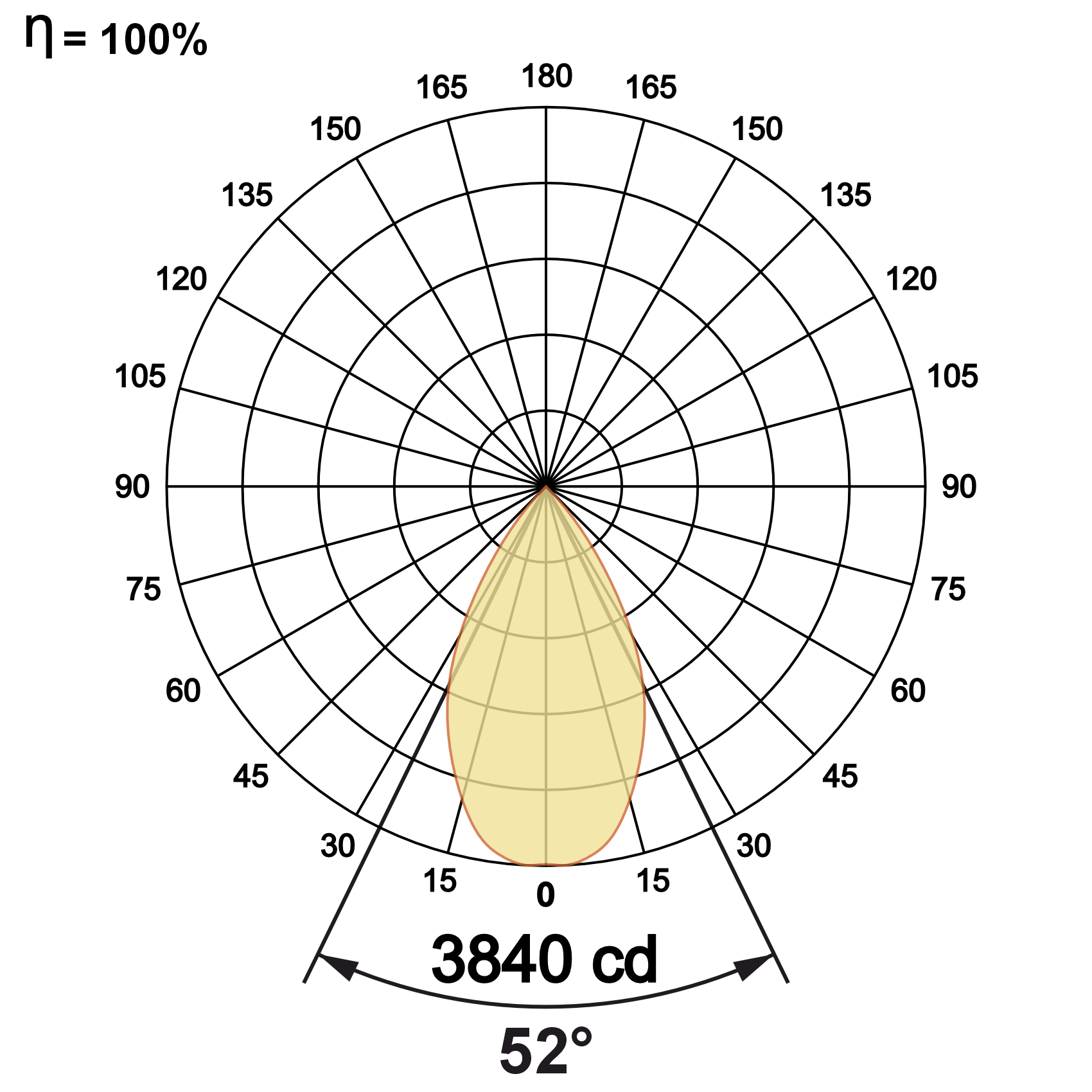

Optical System

Beam Direction Adjustable

Tilt Yes

Swivel Yes

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 31.4W

System Power Watts 36.1W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted CREE COB LED 36Vdc/900mA

Controls

Standard Switchable On/Off

Optional Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Go Pro 70 ITA 36W WW27K CRI80 22°(SS) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Go Pro 70 ITA 36W 2888 80 2700K WW27K CRI80 22°(SS) White SWH Non Dimmable On/Off
2960 82 3000K WW30K CRI90 40°(MD) Black SBL
3105 86 4000K NW40K 52°(WD)
3177 88 5700K CW57K
Go Pro 70 ITA 36W WW27K CRI80 22°(SS) SWH On/Off
