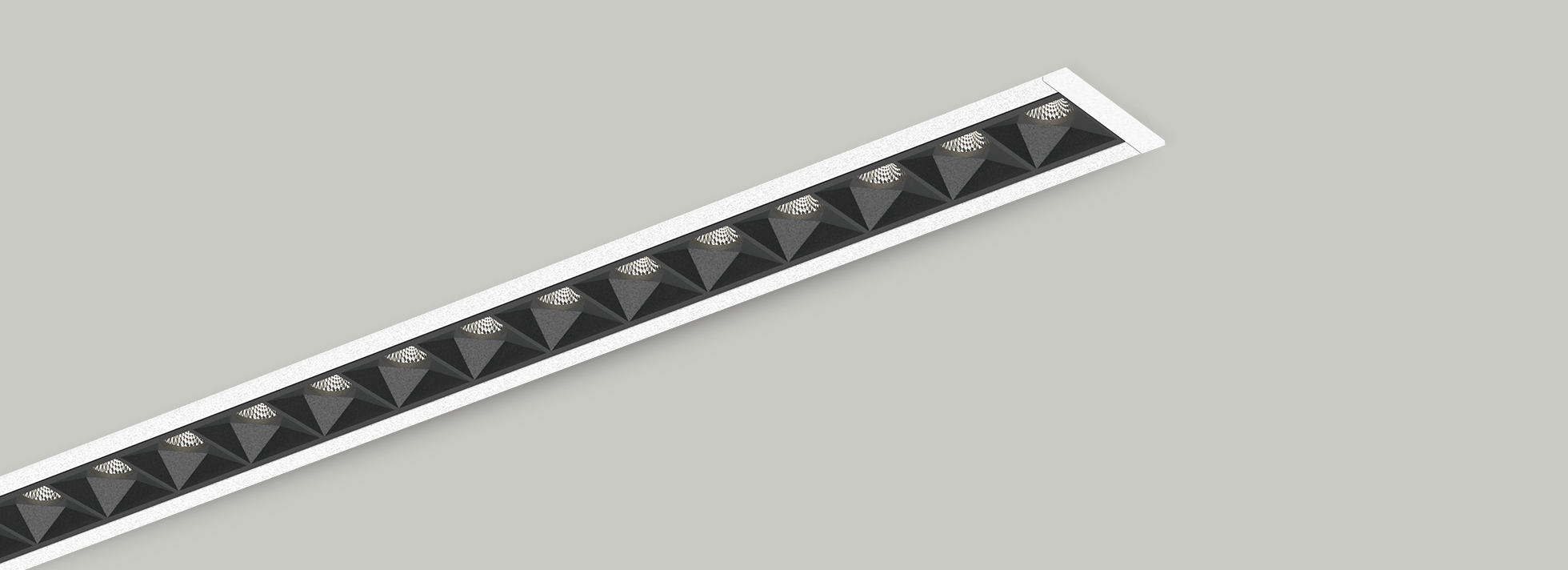

Flute R 120 | 26W

Product Reference

Environment Indoor

Installation Ceiling Recess

Construction & Materials

Housing Aluminium Extrusion

Primary Lens -

Primary Reflector PC metallised

Secondary Reflector Black Raster – ABS

Body Finish White,Black

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed Asymmetric

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Remote

LED Power Watts 22.6W

System Power Watts 26.0W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid power LED array 42V-46Vdc/500mA

Controls

Standard Switchable On/Off

Optional DDIM,CASAMBI,Non Dimmable

Download Data Sheet

Back to Flute R family
Optional

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Flute R 120 26W WW27K CRI80 17°(SS) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Flute R 120 26W 2340 90 2700K WW27K CRI80 17°(SS) White SWH Non Dimmable On/Off
2418 93 3000K WW30K CRI90 27°(MD) Black SBL Dali Dimmable DDIM
2548 98 4000K NW40K 39°(WD) Casambi CBTM
2600 100 5700K CW57K (ASY)
2700K-5700K TW
Flute R 120 26W WW27K CRI80 17°(SS) SWH On/Off
