Product Reference
Environment Indoor

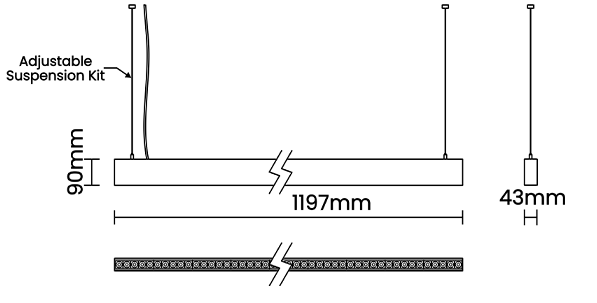

Installation Ceiling Suspended
Construction & Materials
Housing Aluminium Extrusion
Primary Lens -
Primary Reflector PC metallised
Secondary Reflector Black Raster – ABS
Body Finish White,Black
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed Asymmetric
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 22.6W
System Power Watts 26.0W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Samsung Mid power LED array 42V-46Vdc/500mA
Controls
Standard Switchable On/Off
Optional DDIM,CASAMBI,Non Dimmable
.png)
Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Flute 45 P | 26W | WW27K | CRI80 | 17°(SS) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Flute 45 P | 26W | 2340 | 90 | 2700K | WW27K | CRI80 | 17°(SS) | White | SWH | Non Dimmable | On/Off |
| 2418 | 93 | 3000K | WW30K | CRI90 | 27°(MD) | Black | SBL | Dali Dimmable | DDIM | ||
| 2548 | 98 | 4000K | NW40K | 39°(WD) | Casambi | CBTM | |||||
| 2600 | 100 | 5700K | CW57K | (ASY) | |||||||
| 2700K-5700K | TW | ||||||||||
| Flute 45 P | 26W | WW27K | CRI80 | 17°(SS) | SWH | On/Off | |||||
