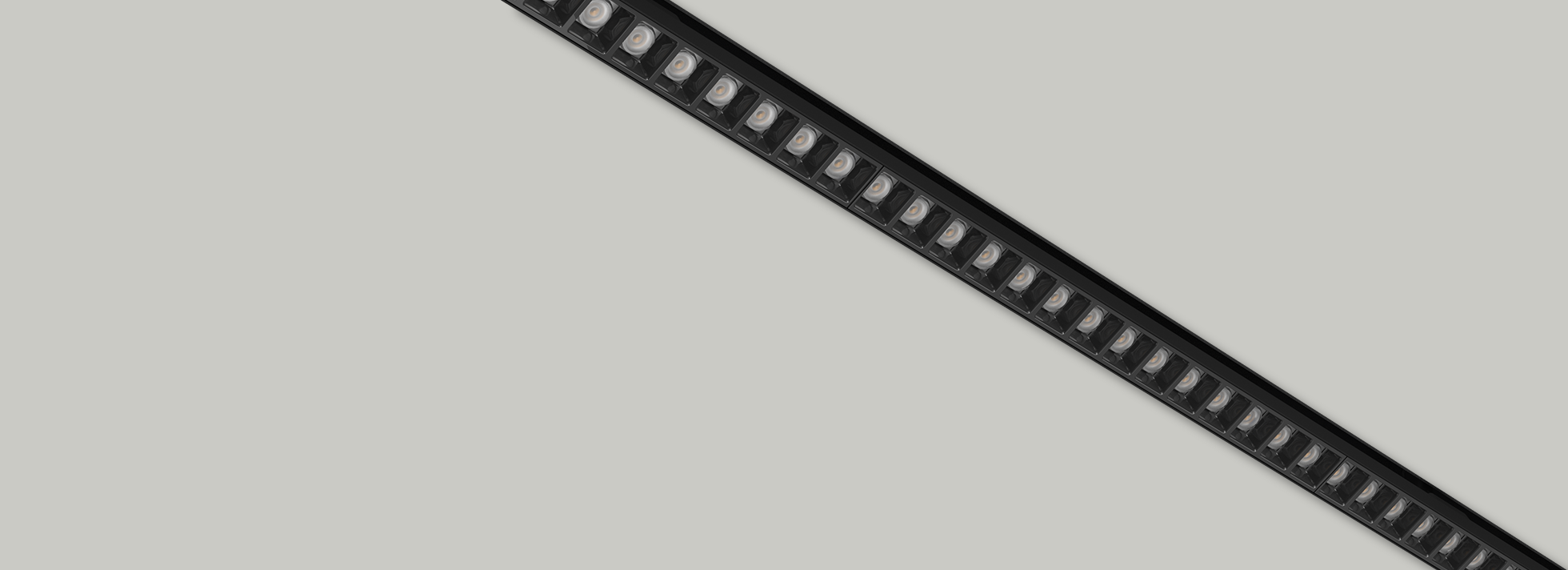

Dark Magic Wash 48V 112 | 29.4W

Product Reference

Environment Indoor

Installation Track Mounted

Construction & Materials

Housing Die Cast Aluminium

Primary Lens -

Primary Reflector PC metallised

Secondary Reflector Black Raster – ABS

Body Finish Black

Diffuser Premium high-transmission opal

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Adjustable

Tilt Yes

Swivel No

Electrical System

Driven with Constant Voltage Driver

Input Voltage/Hz 48V

Control Gear Included

Mounting Remote

LED Power Watts 29.2W

System Power Watts -

Operating Voltage Vin 48V

Power Factor p.f. -

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD high power

LED Fitted Cree 3030 LED 39V-42Vdc/700mA

Controls

Standard Switchable On/Off

Optional DDIM,BTTM,CASAMBI,Non Dimmable

Download Data Sheet

Back to Dark Magic 48V family
Optional

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Dark Magic Wash 48V 112 29.4W WW27K CRI80 29°(MD) SBL On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Dark Magic Wash 48V 112 29.4W 3329 114 2700K WW27K CRI80 29°(MD) Black SBL Non Dimmable On/Off
3446 118 3000K WW30K CRI90 66°(VWD) Dali Dimmable DDIM
3592 123 4000K NW40K Bluetooth Dimmable BTTM
3679 126 5700K CW57K Casambi CBTM
2700K-5700K TW
Dark Magic Wash 48V 112 29.4W WW27K CRI80 29°(MD) SBL On/Off
