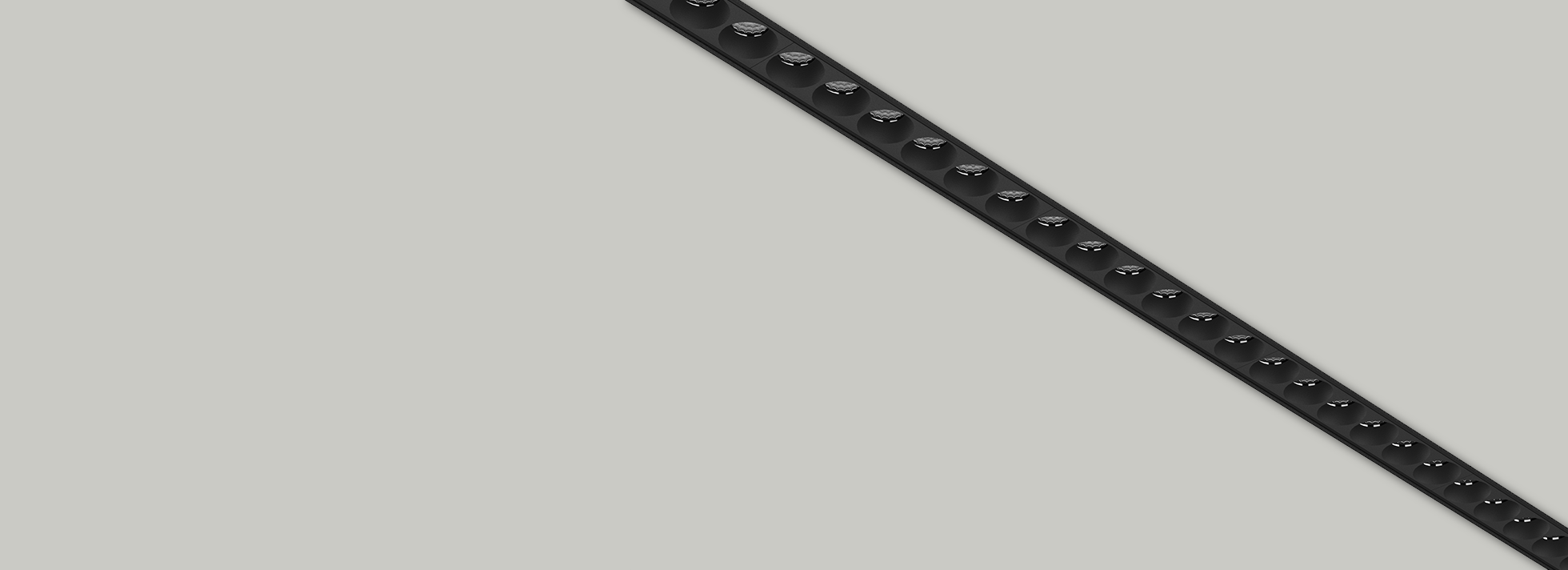

Product Reference
Environment Indoor
Installation Track Mounted
Construction & Materials
Housing Extruded Aluminium
Primary Lens -
Primary Reflector -
Secondary Reflector Black Raster – PC
Body Finish Black
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Voltage Driver
Input Voltage/Hz 48V
Control Gear Included
Mounting Remote
LED Power Watts 17.9W
System Power Watts -
Operating Voltage Vin 48V
Power Factor p.f. -
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD high power
LED Fitted Cree 3030 LED 33V-36Vdc/500mA
Controls
Standard Switchable On/Off
Optional DDIM,BTTM,CASAMBI,Non Dimmable

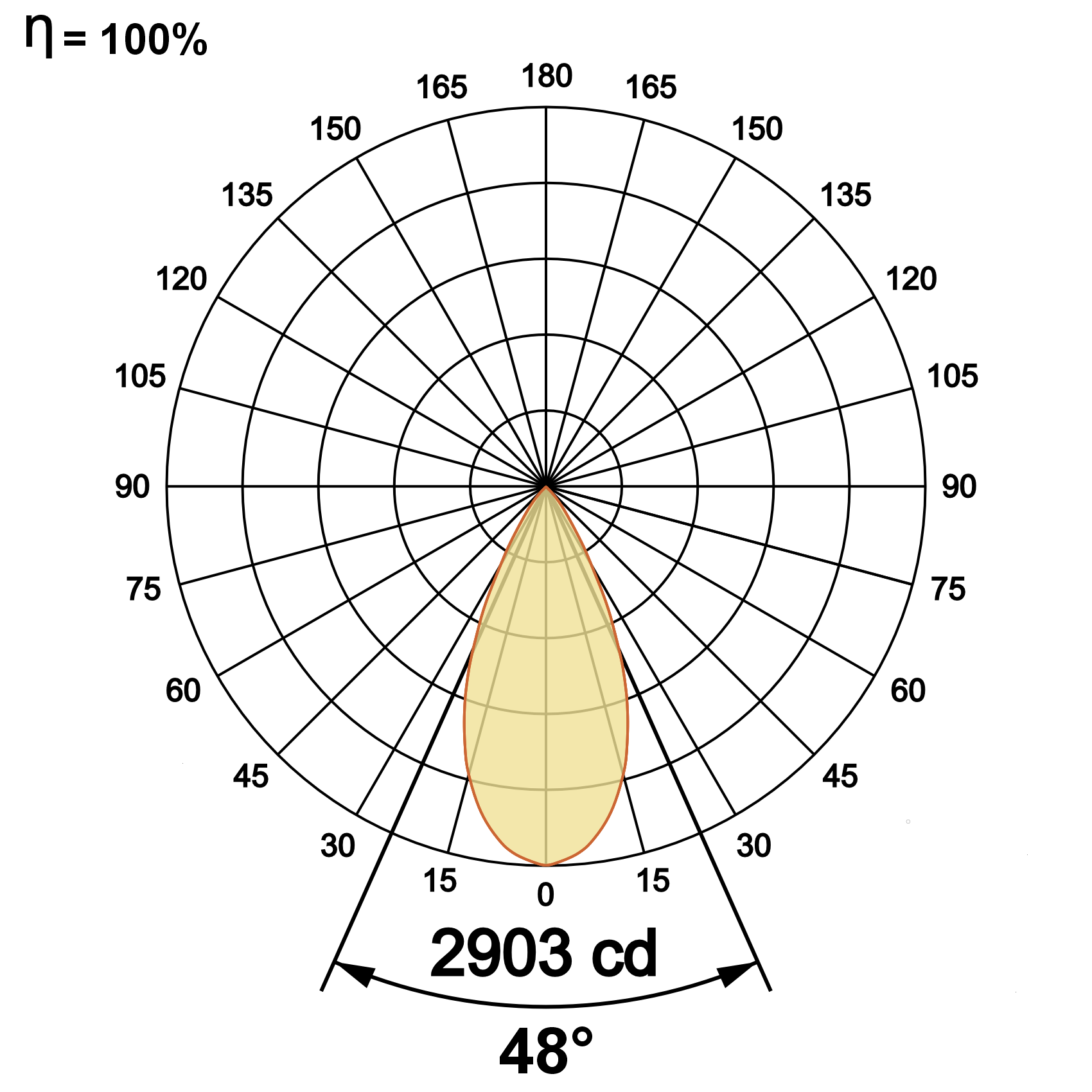

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Dark Magic 48V 72 | 18W | WW27K | CRI80 | 29°(MD) | SBL | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dark Magic 48V 72 | 18W | 1969 | 110 | 2700K | WW27K | CRI80 | 29°(MD) | Black | SBL | Non Dimmable | On/Off |
| 2023 | 113 | 3000K | WW30K | CRI90 | 48°(WD) | Dali Dimmable | DDIM | ||||
| 2130 | 119 | 4000K | NW40K | Bluetooth Dimmable | BTTM | ||||||
| 2166 | 121 | 5700K | CW57K | Casambi | CBTM | ||||||
| 2700K-5700K | TW | ||||||||||
| Dark Magic 48V 72 | 18W | WW27K | CRI80 | 29°(MD) | SBL | On/Off | |||||
