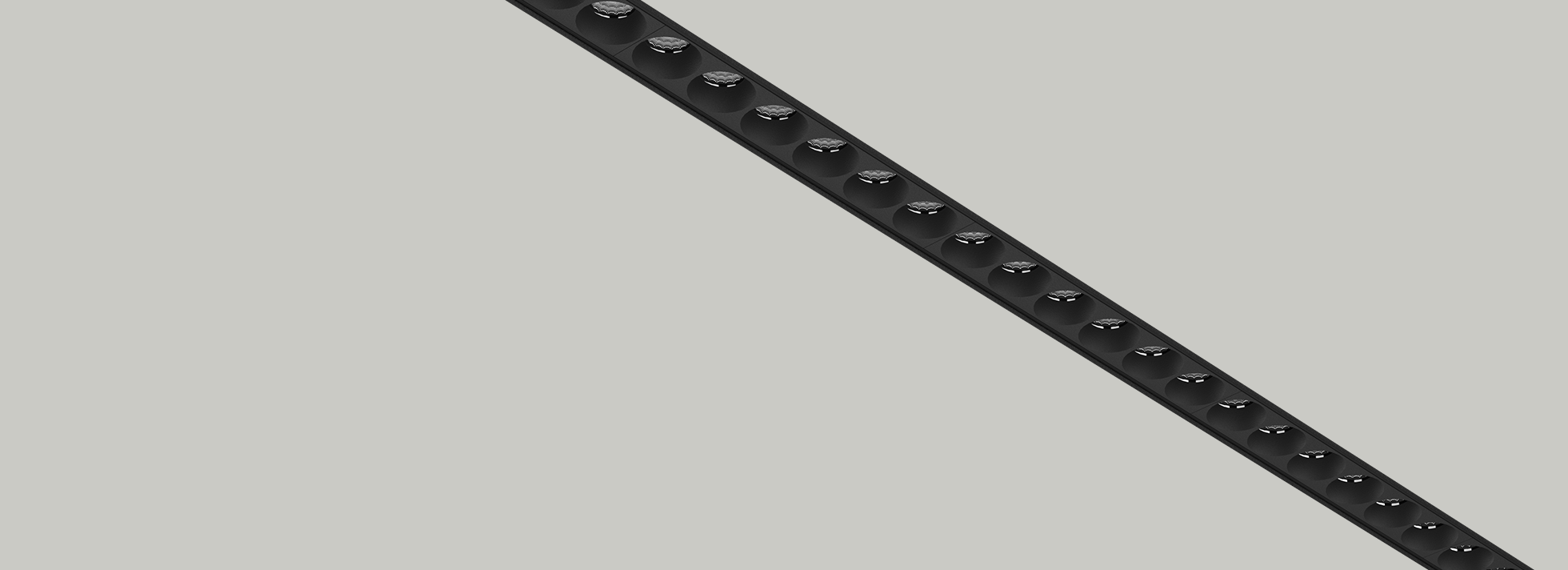

Dark Magic 48V 108 | 25.2W

Product Reference

Environment Indoor

Installation Track Mounted

Construction & Materials

Housing Extruded Aluminium

Primary Lens -

Primary Reflector -

Secondary Reflector Black Raster – PC

Body Finish Black

Diffuser Premium high-transmission opal

Antiglare Baffle -

Thermal Management

Heat Sink Material Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Voltage Driver

Input Voltage/Hz 48V

Control Gear Included

Mounting Remote

LED Power Watts 24.4W

System Power Watts -

Operating Voltage Vin 48V

Power Factor p.f. -

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD high power

LED Fitted Cree 3030 LED 33V-36Vdc/700mA

Controls

Standard Switchable On/Off

Optional DDIM,BTTM,CASAMBI,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Dark Magic 48V 108 25.2W WW27K CRI80 29°(MD) SBL On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Dark Magic 48V 108 25.2W 2708 111 2700K WW27K CRI80 29°(MD) Black SBL Non Dimmable On/Off

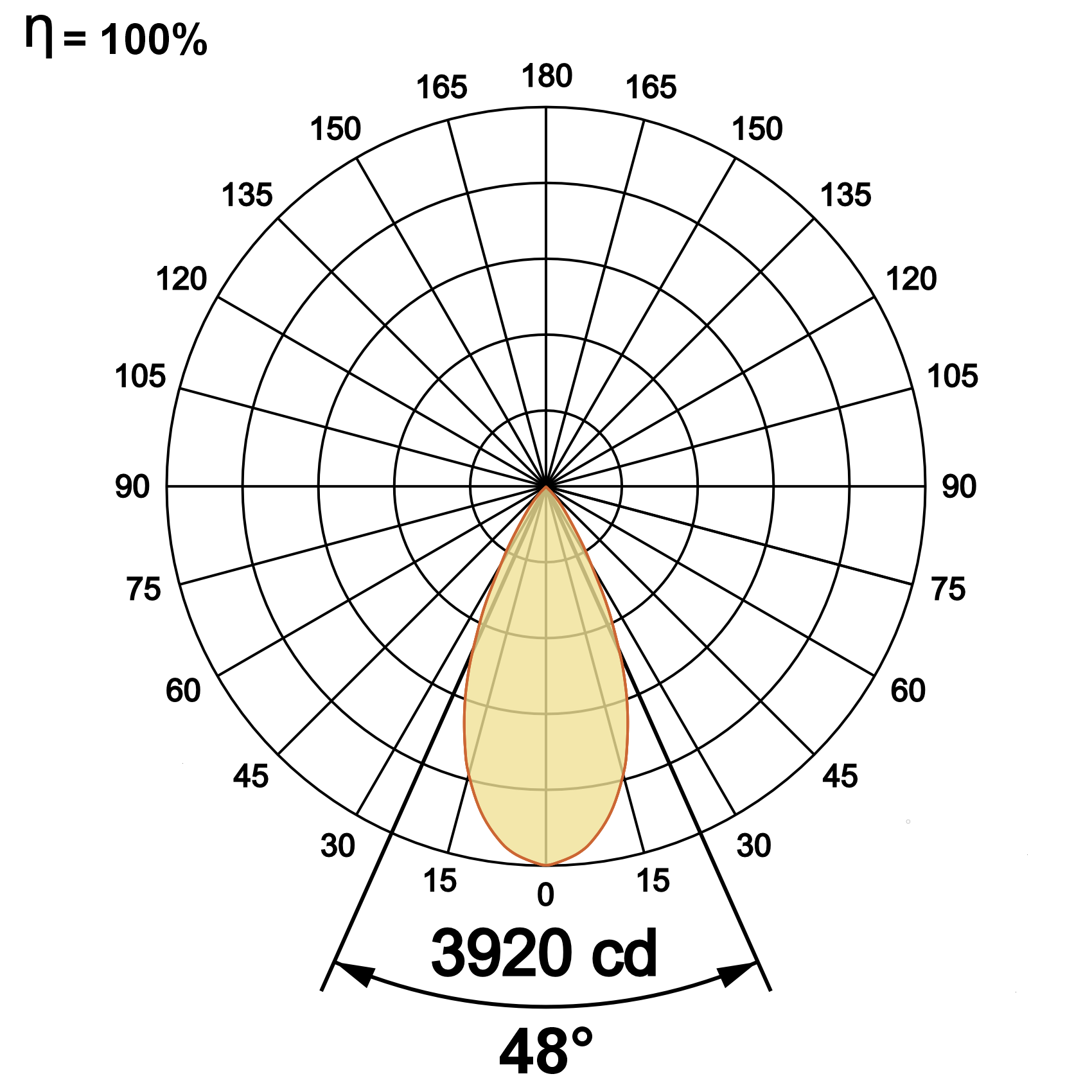

2782 114 3000K WW30K CRI90 48°(WD) Dali Dimmable DDIM
2928 120 4000K NW40K Bluetooth Dimmable BTTM
2977 122 5700K CW57K Casambi CBTM
2700K-5700K TW
Dark Magic 48V 108 25.2W WW27K CRI80 29°(MD) SBL On/Off
