Product Reference
Environment Indoor
Installation Ceiling Suspended
Construction & Materials
Housing Extruded and Sheet Aluminium
Primary Lens -
Primary Reflector White Optics
Secondary Reflector -
Body Finish White,Black,Custom
Diffuser Premium high-transmission opal
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction General Diffuse
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 68.5W
System Power Watts 78.7W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Samsung Mid power LED array 42V-48Vdc/1550mA
Controls
Standard Switchable On/Off
Optional DDIM,CASAMBI,Non Dimmable

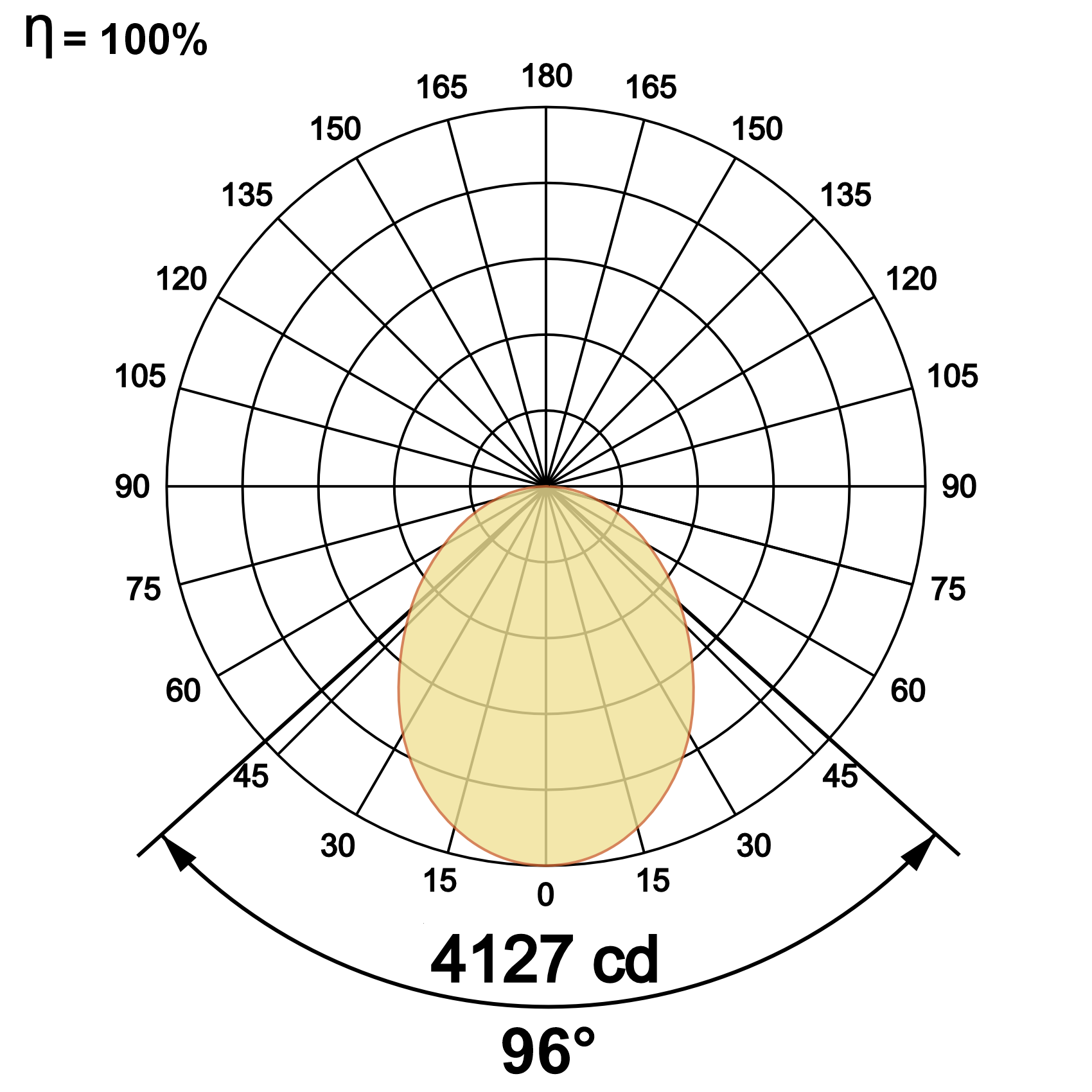

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Cyclop Central 90 | 80W | WW27K | CRI80 | 96° | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Cyclop Central 90 | 80W | 9287 | 118 | 2700K | WW27K | CRI80 | 96° | White | SWH | Non Dimmable | On/Off |
| 9601 | 122 | 3000K | WW30K | CRI90 | Black | SBL | Dali Dimmable | DDIM | |||
| 10152 | 129 | 4000K | NW40K | Custom | CSM | Casambi | CBTM | ||||
| 10467 | 133 | 5700K | CW57K | ||||||||
| Cyclop Central 90 | 80W | WW27K | CRI80 | 96° | SWH | On/Off | |||||
