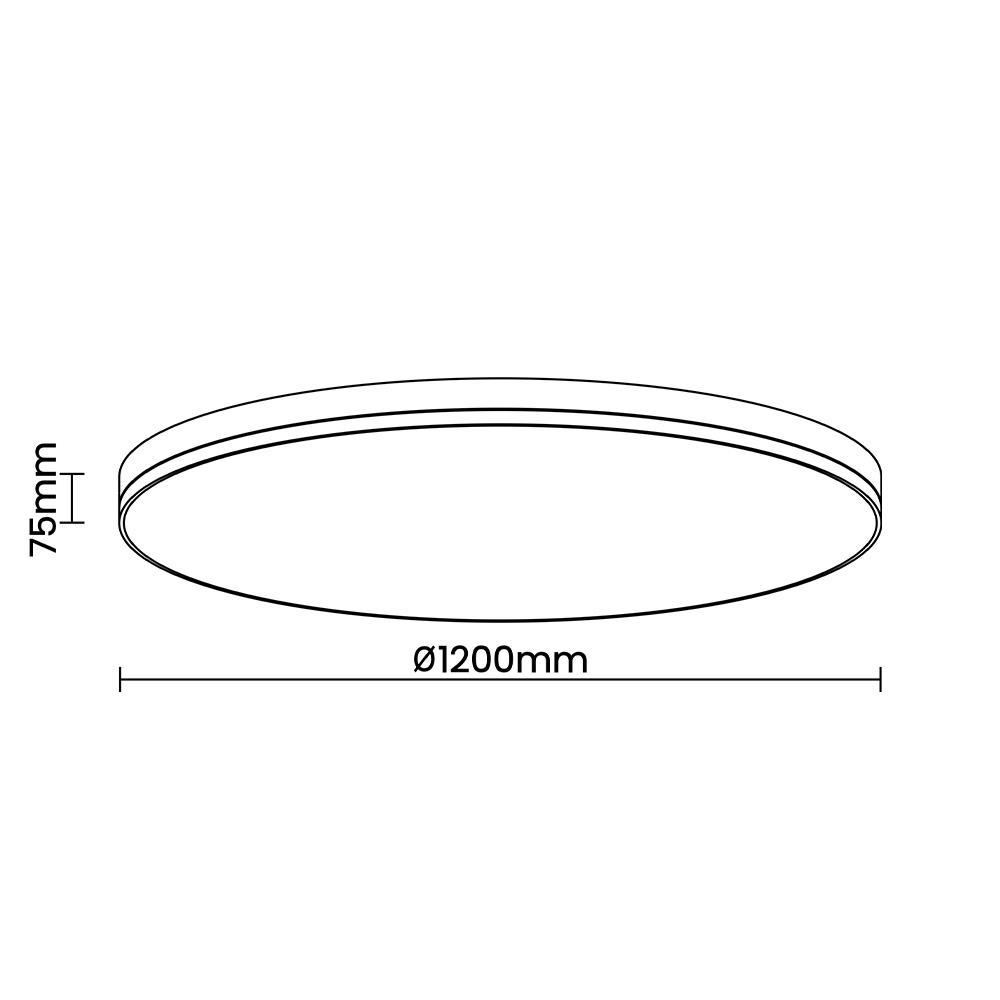

Circulo S 120 | 78W

Product Reference

Environment Indoor

Installation Ceiling Surface

Construction & Materials

Housing Extruded and Sheet Aluminium

Primary Lens -

Primary Reflector White Optics

Secondary Reflector -

Body Finish White,Black,Custom

Diffuser Opal PC,Microprismatic

Antiglare Baffle -

Thermal Management

Heat Sink Material Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction General Diffuse

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 67.2W

System Power Watts 78.1W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid power LED array 43V-48Vdc/1550mA

Controls

Standard Switchable On/Off

Optional DDIM,CASAMBI,Non Dimmable

Download Data Sheet

Back to Circulo family
Optional

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Circulo S 120 78W WW27K CRI80 96° SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Circulo S 120 78W 8513 109 2700K WW27K CRI80 96° White SWH Non Dimmable On/Off
8669 111 3000K WW30K CRI90 Black SBL Dali Dimmable DDIM
8903 114 4000K NW40K Custom CSM Casambi CBTM
9060 116 5700K CW57K
2700K-5700K TW
Circulo S 120 78W WW27K CRI80 96° SWH On/Off
