Birds on a Branch 3way | 3x8W

Product Reference

Environment Indoor

Installation Ceiling Surface

Construction & Materials

Housing Die Cast Aluminium,Milled Aluminium

Primary Lens PMMA

Primary Reflector -

Secondary Reflector -

Body Finish White,Black,Custom

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Adjustable

Tilt Yes

Swivel Yes

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 3x7.4

System Power Watts 3x8.5

Operating Voltage Vin 220-240Vac

Power Factor p.f. >0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted CREE COB LED 36Vdc/500mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Download Data Sheet

Back to Birds on a Branch family
Optional

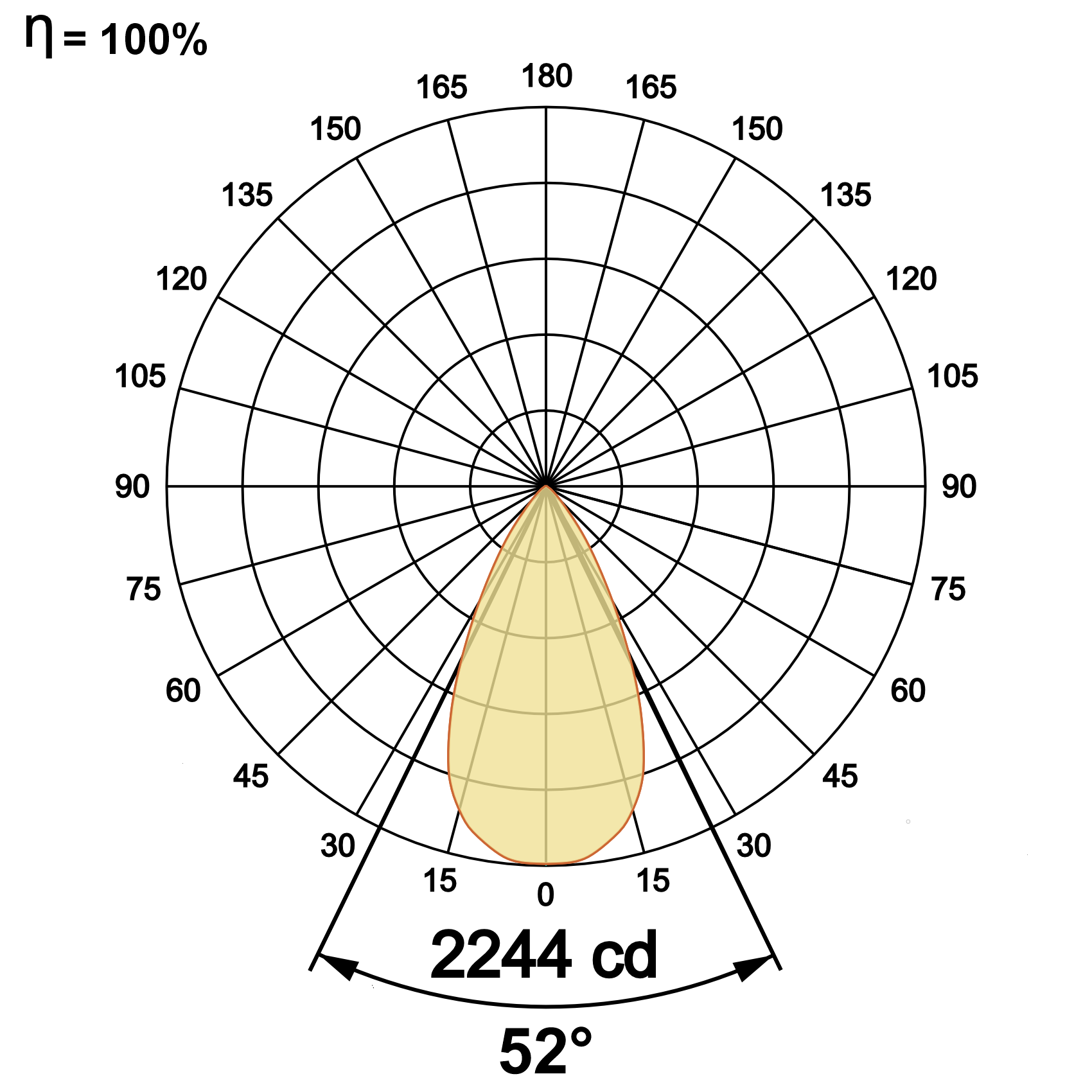

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Birds on a Branch 3way 3x8W 2700K CRI80 24° SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Birds on a Branch 3way 3x8W 3x621 73 2700K 2700K CRI80 24° White SWH Non Dimmable On/Off
3x638 75 3000K 3000K CRI90 36° Black SBL Phase Dimmable PDIM
3x672 79 4000K 4000K 52° Custom CSM Dali Dimmable DDIM
3x689 81 5700K 5700K Bluetooth Dimmable BTTM
Casambi CBTM
Birds on a Branch 3way 3x8W 2700K CRI80 24° SWH On/Off
