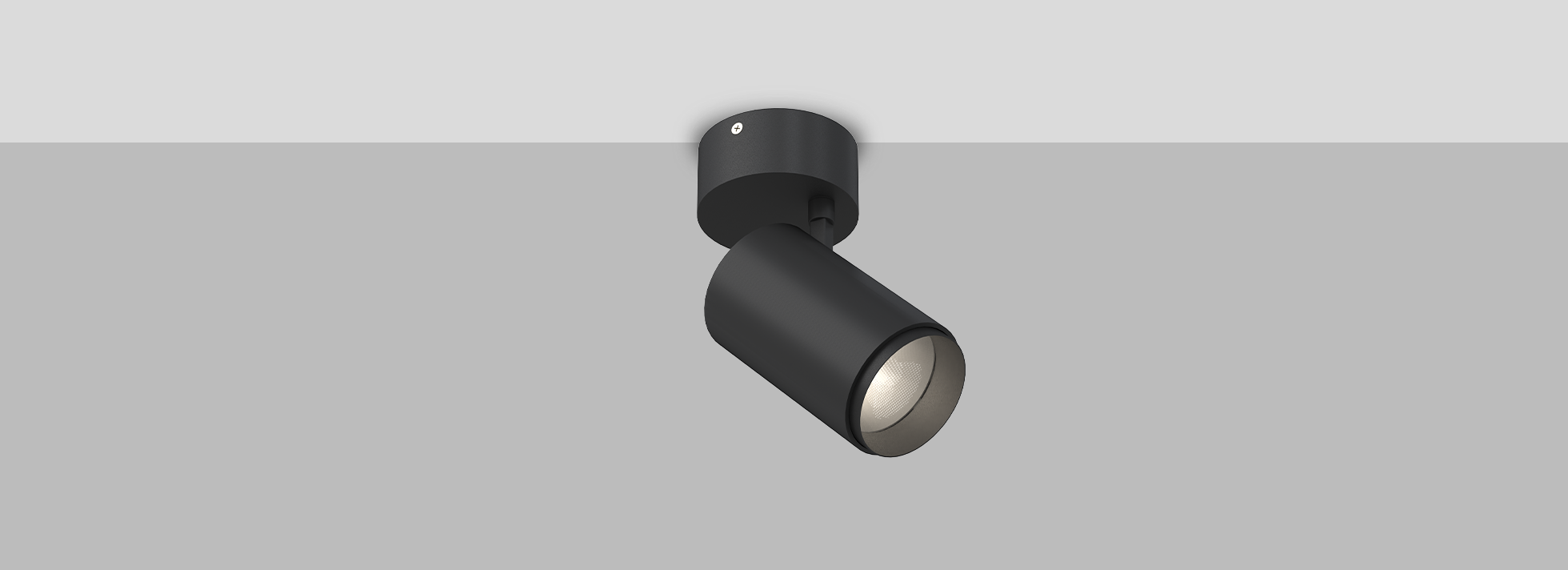

Spotboy Pro SF 75 | 28W

Product Reference

Environment Indoor

Installation Ceiling Surface

Construction & Materials

Housing Die Cast Aluminium,Milled Aluminium

Primary Lens PMMA

Primary Reflector -

Secondary Reflector -

Body Finish White,Black,Custom

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Adjustable

Tilt Yes

Swivel Yes

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 23.7W

System Power Watts 27.2W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted Cree COB LED 33V-36Vdc/700mA

Controls

Standard Switchable On/Off

Optional DDIM,Non Dimmable

Download Data Sheet

Back to Spotboy family
Optional

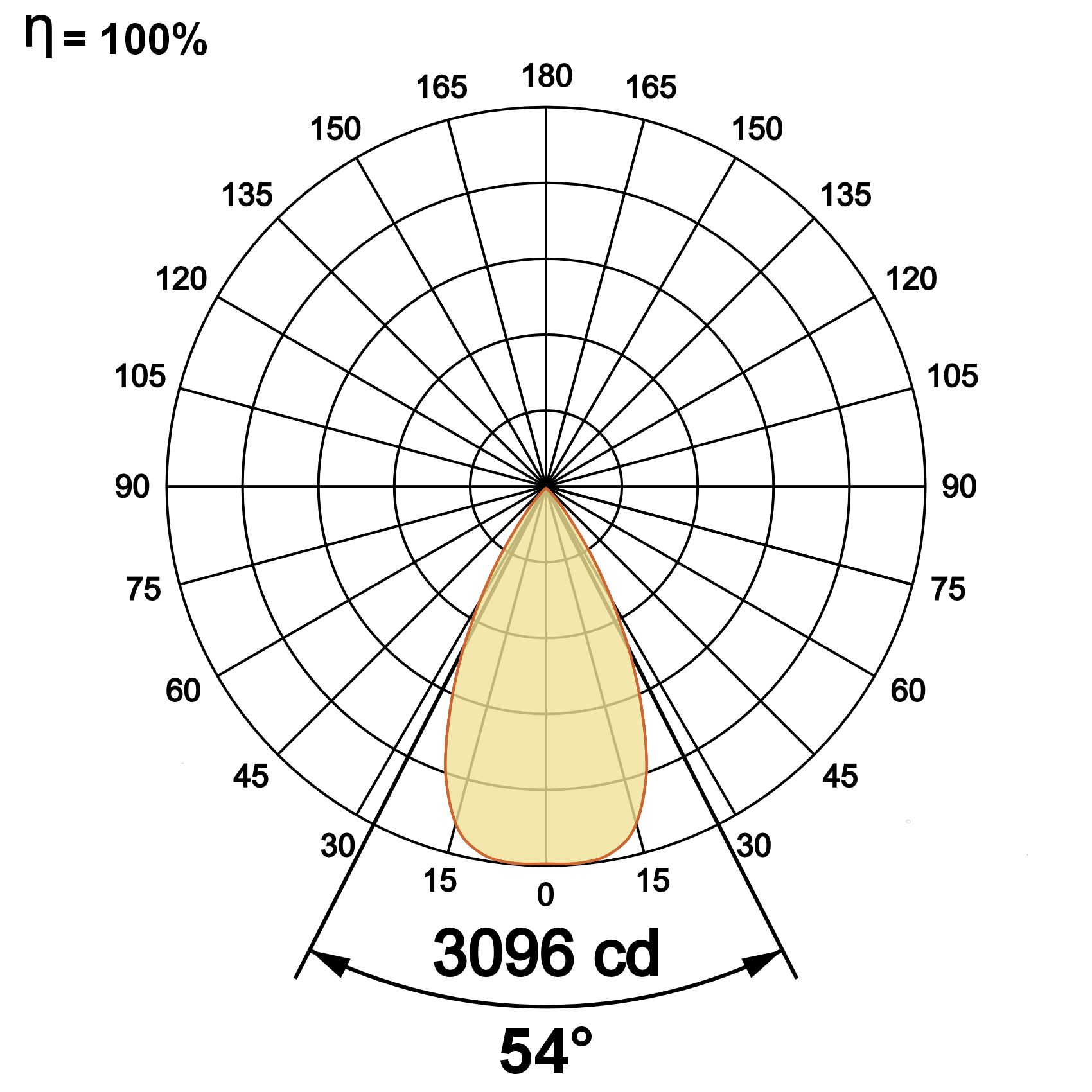

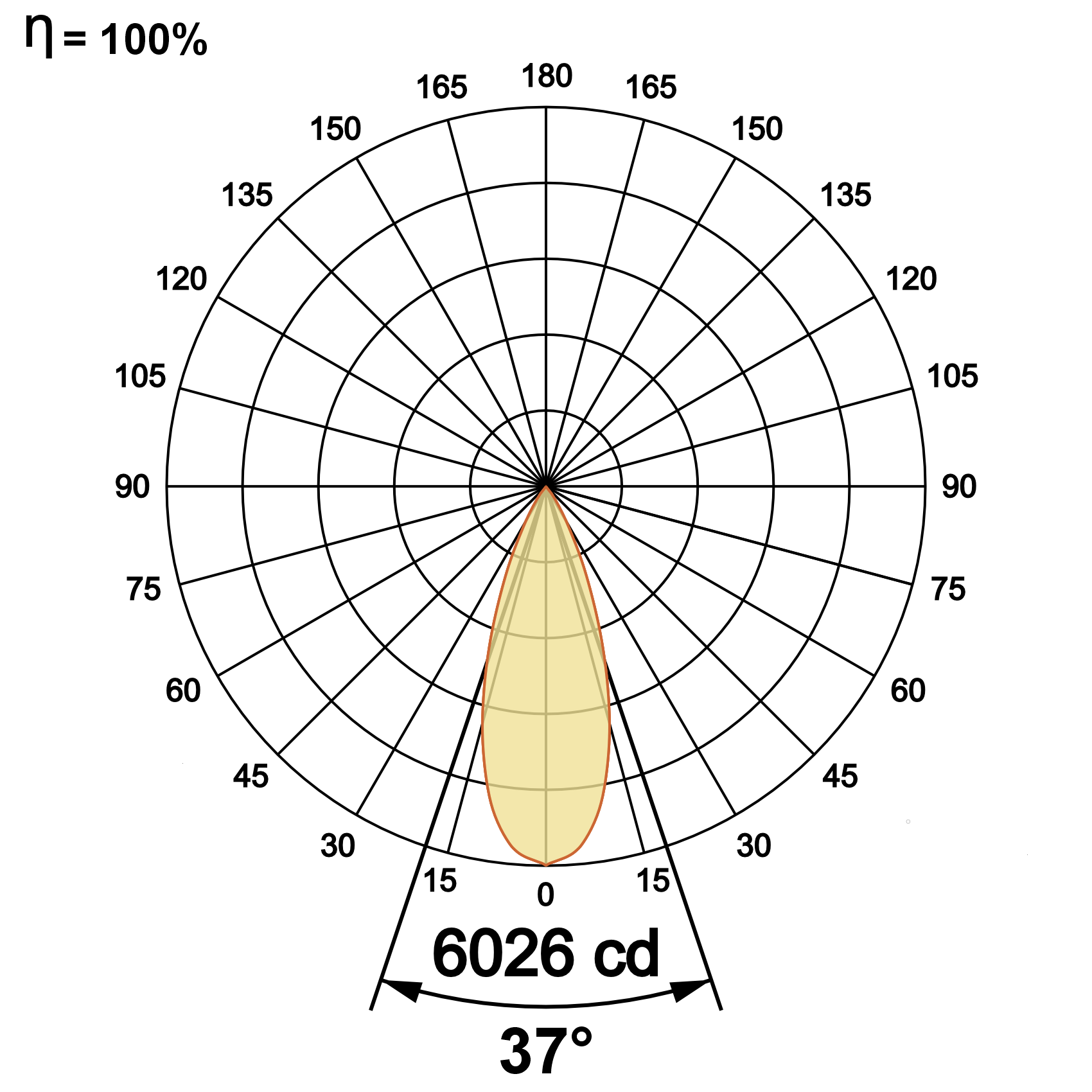

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Spotboy Pro SF 75 28W WW27K CRI80 22°(SS) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Spotboy Pro SF 75 28W 2475 91 2700K WW27K CRI80 22°(SS) White SWH Non Dimmable On/Off
2557 94 3000K WW30K CRI90 37°(MD) Black SBL Dali Dimmable DDIM
2693 99 4000K NW40K 54°(WD) Custom CSM
2747 101 5700K CW57K
Spotboy Pro SF 75 28W WW27K CRI80 22°(SS) SWH On/Off
