Product Reference
Environment Indoor
Installation Ceiling Recess
Construction & Materials
Housing Die Cast Aluminium
Primary Lens PMMA
Primary Reflector -
Secondary Reflector Anodised
Body Finish White,Black
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt Yes
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 8.9W
System Power Watts 10.2W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted Cree COB LED 36Vdc/250mA
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

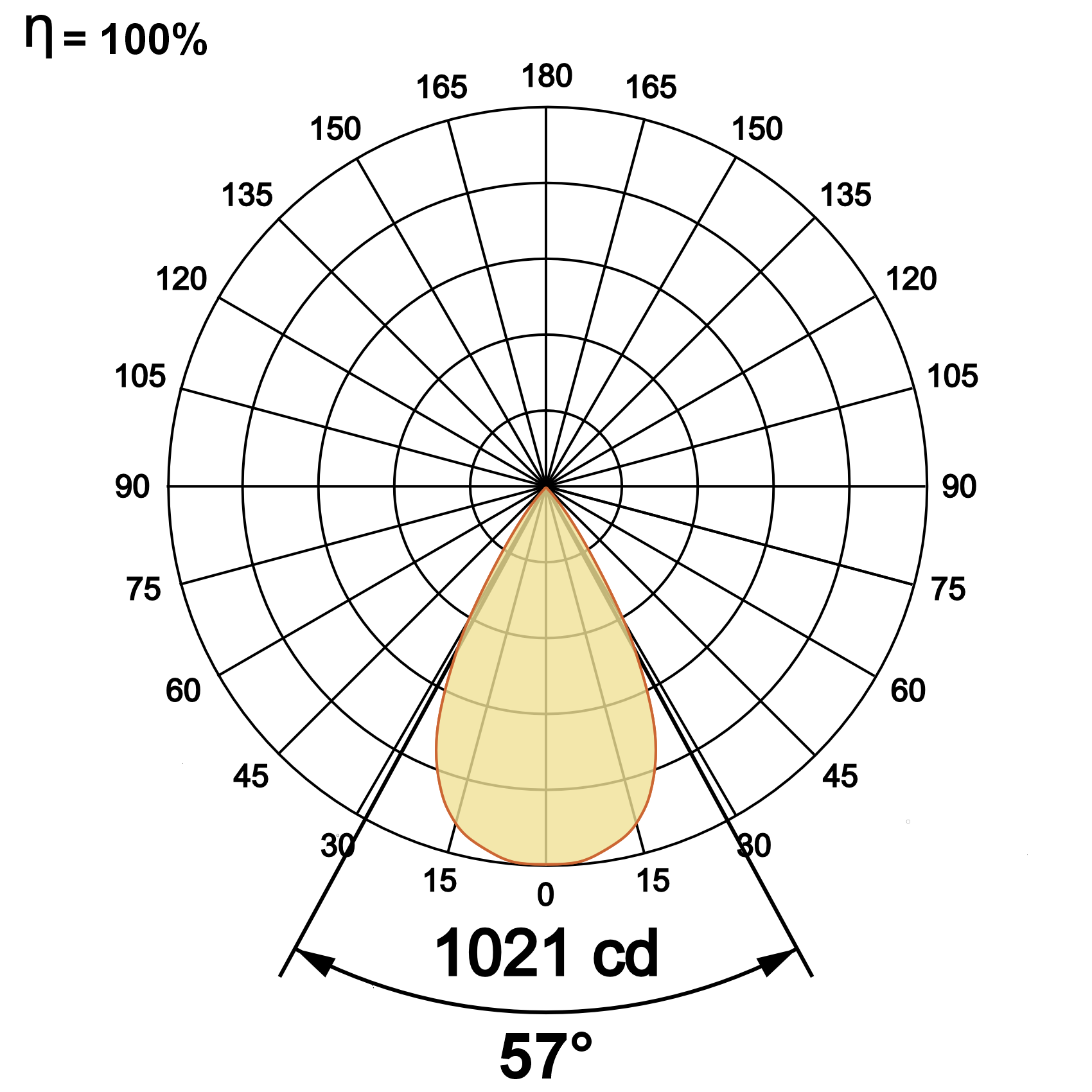

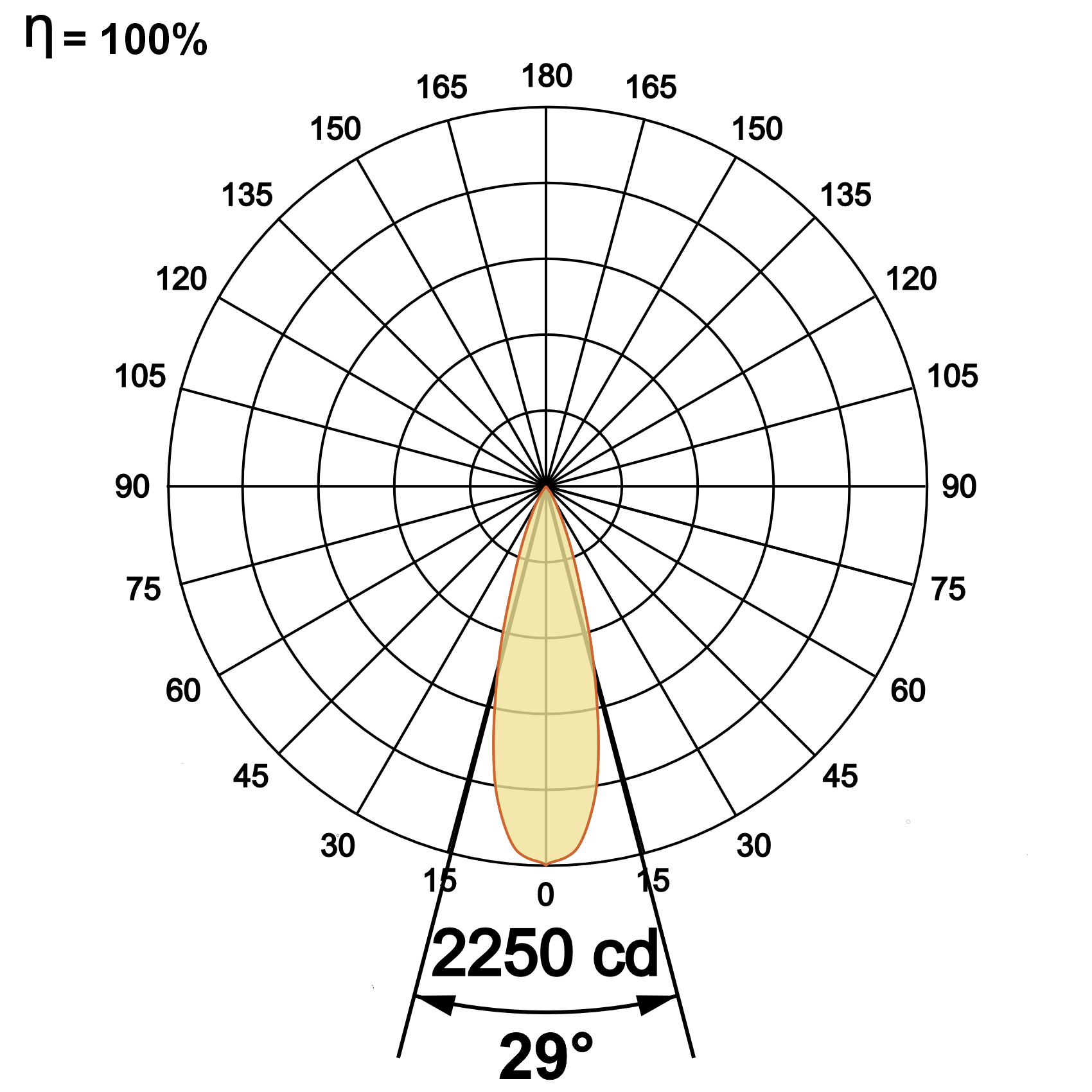

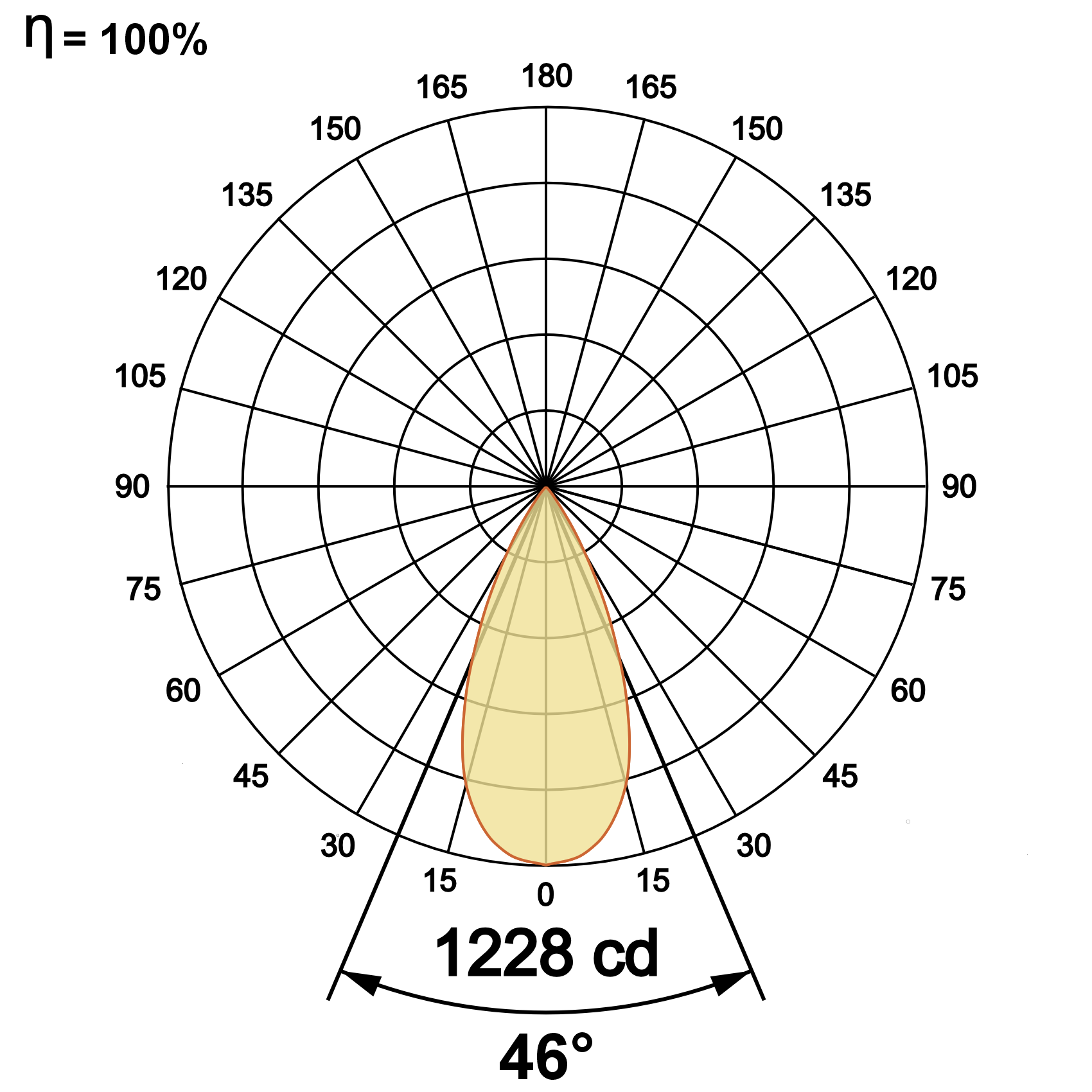

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| ProLed 55 PF | 10W | WW27K | CRI80 | 29°(SS) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ProLed 55 PF | 10W | 632 | 62 | 2700K | WW27K | CRI80 | 29°(SS) | White | SWH | Non Dimmable | On/Off |
| 653 | 64 | 3000K | WW30K | CRI90 | 36°(MD) | Black | SBL | Phase Dimmable | PDIM | ||
| 683 | 67 | 4000K | NW40K | 46°(WD) | Dali Dimmable | DDIM | |||||
| 704 | 69 | 5700K | CW57K | 57°(VWD) | Bluetooth Dimmable | BTTM | |||||
| 2700K-5700K | TW | Casambi | CBTM | ||||||||
| Warm to Dim | W2D | ||||||||||
| ProLed 55 PF | 10W | WW27K | CRI80 | 29°(SS) | SWH | On/Off | |||||
