Linea Magic 48V 120 | 18W

Product Reference

Environment Indoor

Installation Track Mounted

Construction & Materials

Housing Extruded Aluminium

Primary Lens -

Primary Reflector -

Secondary Reflector -

Body Finish Black

Diffuser Premium high-transmission opal

Antiglare Baffle -

Thermal Management

Heat Sink Material Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Voltage Driver

Input Voltage/Hz 48V

Control Gear Included

Mounting Remote

LED Power Watts 17.2W

System Power Watts -

Operating Voltage Vin 48V

Power Factor p.f. -

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid power LED array 33V-36Vdc/500mA


Standard Switchable On/Off

Optional DDIM,BTTM,CASAMBI,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control

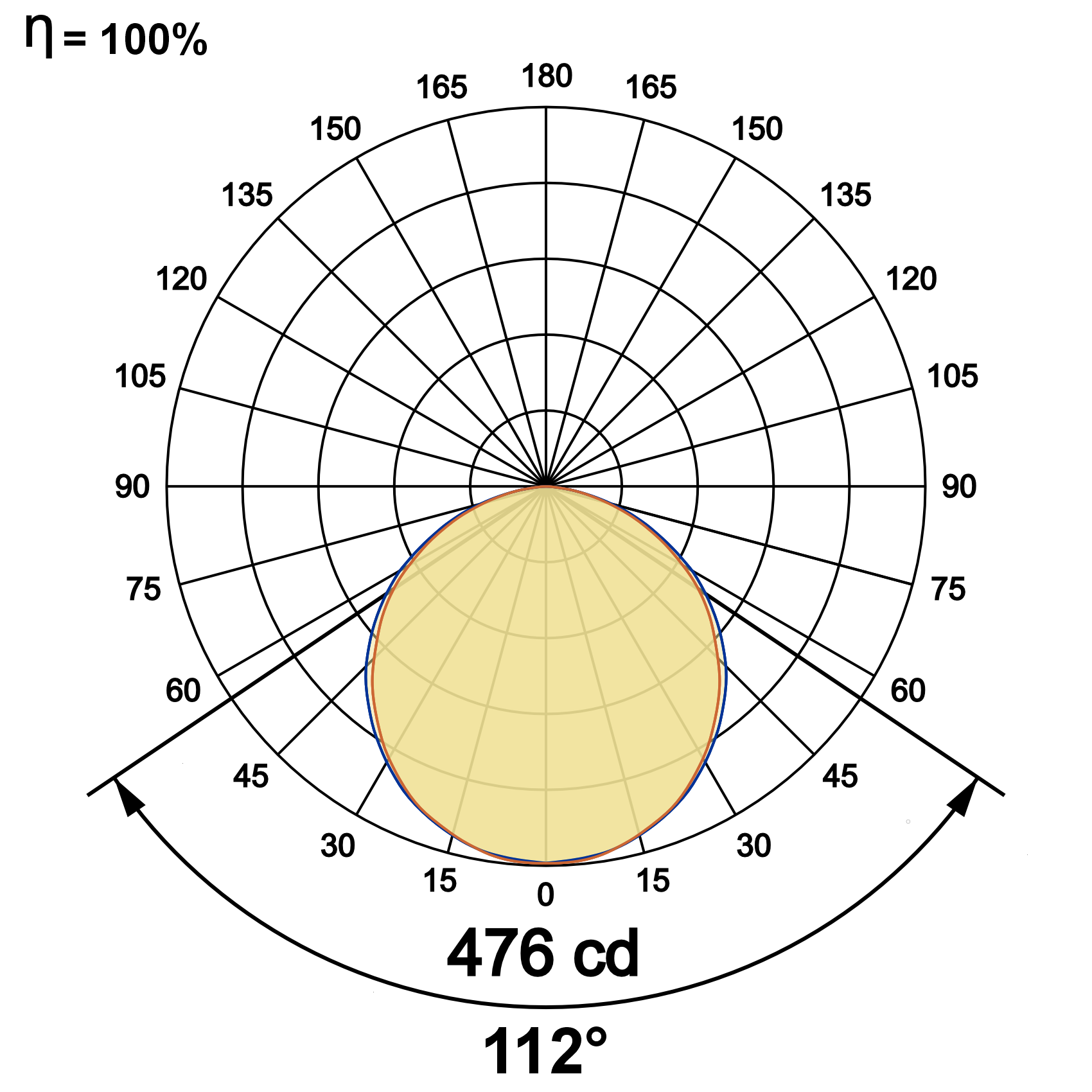

Linea Magic 48V 120 18W WW27K CRI80 112° SBL On/Off

Select one from each column with highlighted values to create the ordering code

Linea Magic 48V 120 18W 1307 76 2700K WW27K CRI80 112° Black SBL Non Dimmable On/Off
1342 78 3000K WW30K CRI90 Dali Dimmable DDIM
1410 82 4000K NW40K Bluetooth Dimmable BTTM
1445 84 5700K CW57K Casambi CBTM
2700K-5700K TW
Linea Magic 48V 120 18W WW27K CRI80 112° SBL On/Off
