Product Reference
Environment Indoor
Installation Ceiling Surface
Construction & Materials
Housing Extruded Aluminium
Primary Lens -
Primary Reflector Aluminium White Painted
Secondary Reflector -
Body Finish White,Black
Diffuser Premium high-transmission opal
Antiglare Baffle Black,White,Custom
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 51.4W
System Power Watts 59.1W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Osram/Samsung Mid Power LED array 33V-36Vdc/1550mA
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

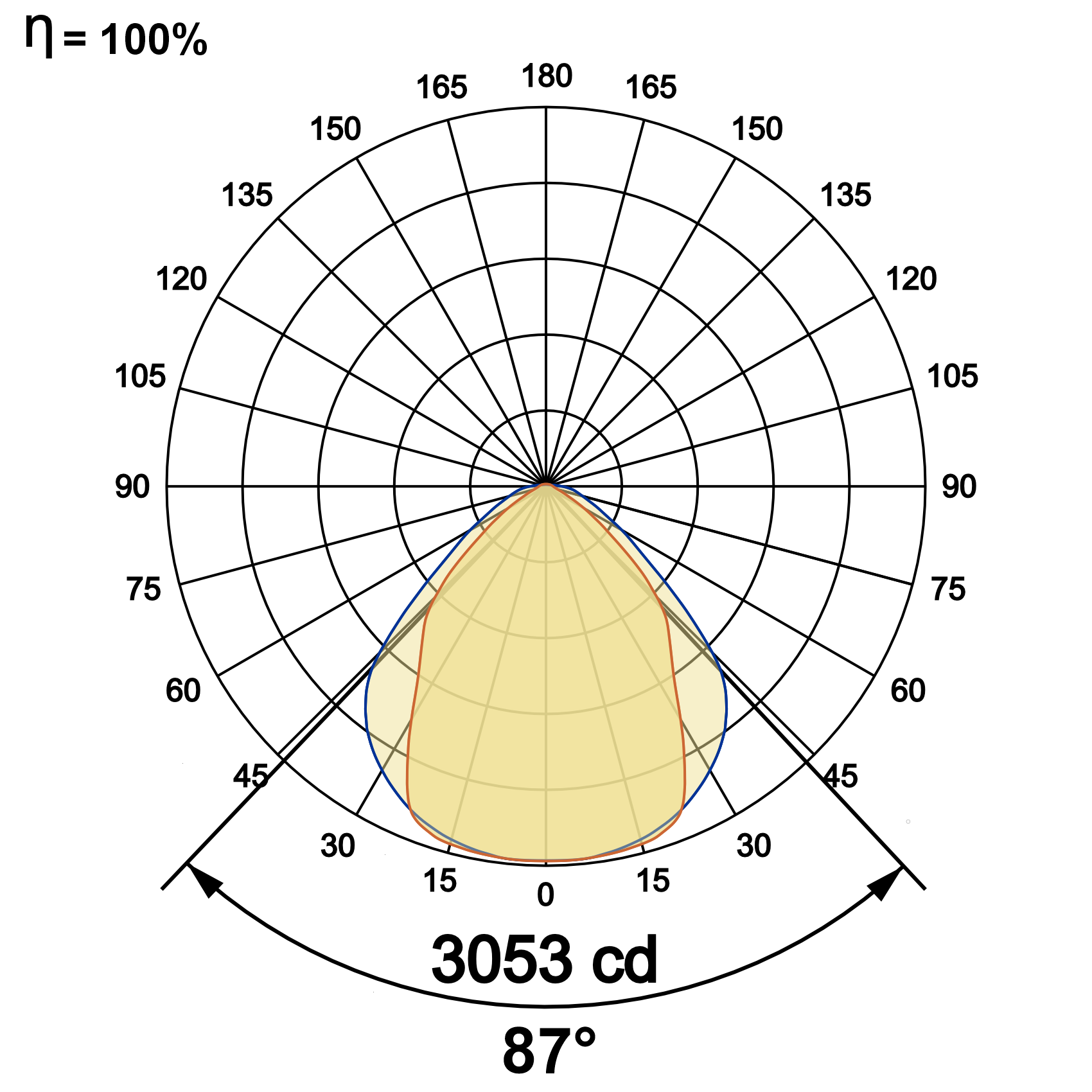

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| ZuG OPD S 180 | 60W | WW27K | CRI80 | 105° | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| ZuG OPD S 180 | 60W | 4373 | 74 | 2700K | WW27K | CRI80 | 105° | White | SWH | Non Dimmable | On/Off |
| 4492 | 76 | 3000K | WW30K | CRI90 | Black | SBL | Phase Dimmable | PDIM | |||
| 4728 | 80 | 4000K | NW40K | Dali Dimmable | DDIM | ||||||
| 4846 | 82 | 5700K | CW57K | Bluetooth Dimmable | BTTM | ||||||
| 2700K-5700K | TW | Casambi | CBTM | ||||||||
| ZuG OPD S 180 | 60W | WW27K | CRI80 | 105° | SWH | On/Off | |||||
