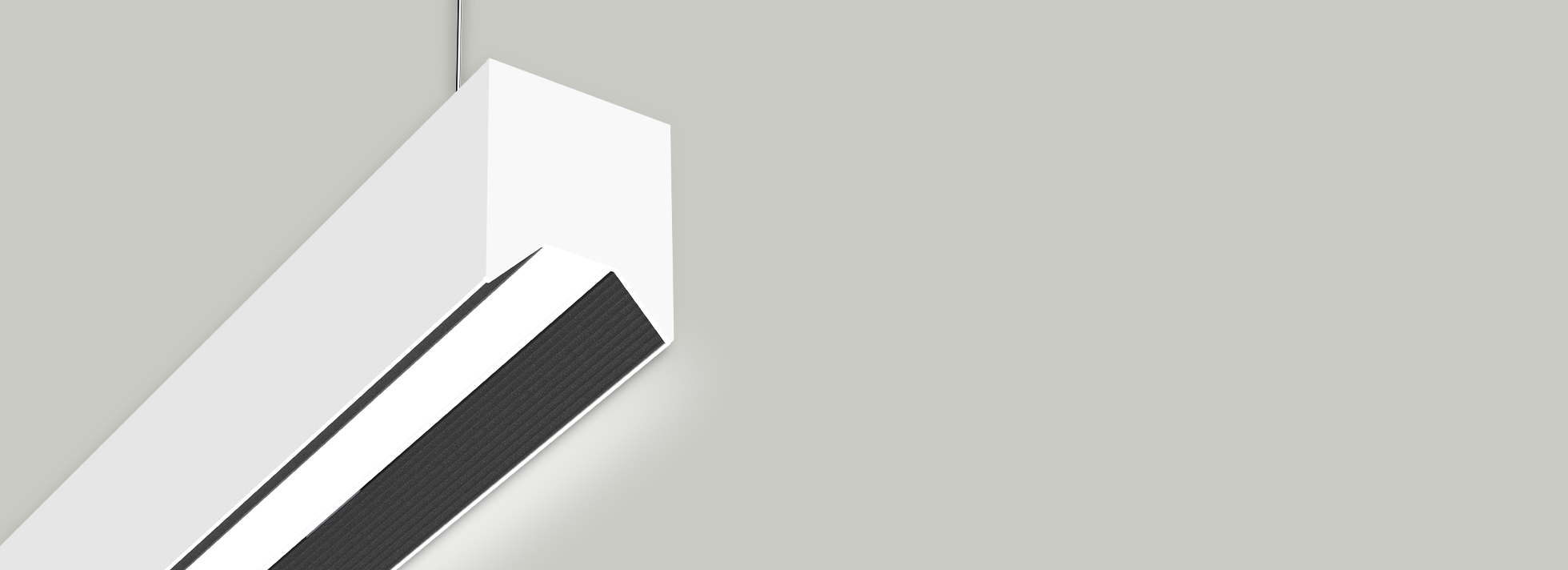

ZuG OPD P 180 | 30W

Product Reference

Environment Indoor

Installation Ceiling Suspended

Construction & Materials

Housing Extruded Aluminium

Primary Lens -

Primary Reflector Aluminium White Painted

Secondary Reflector -

Body Finish White,Black

Diffuser Premium high-transmission opal

Antiglare Baffle -

Thermal Management

Heat Sink Material Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction General Diffuse

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 25.6W

System Power Watts 29.4W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid Power LED array 33V-36Vdc/750mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Download Data Sheet

Back to ZuG family
Optional

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
ZuG OPD P 180 30W WW27K CRI80 105° SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
ZuG OPD P 180 30W 2411 82 2700K WW27K CRI80 105° White SWH Non Dimmable On/Off
2470 84 3000K WW30K CRI90 Black SBL Phase Dimmable PDIM
2587 88 4000K NW40K Dali Dimmable DDIM
2646 90 5700K CW57K Bluetooth Dimmable BTTM
2700K-5700K TW Casambi CBTM
ZuG OPD P 180 30W WW27K CRI80 105° SWH On/Off
