ZuG MPD P 60 | 14W

Product Reference

Environment Indoor

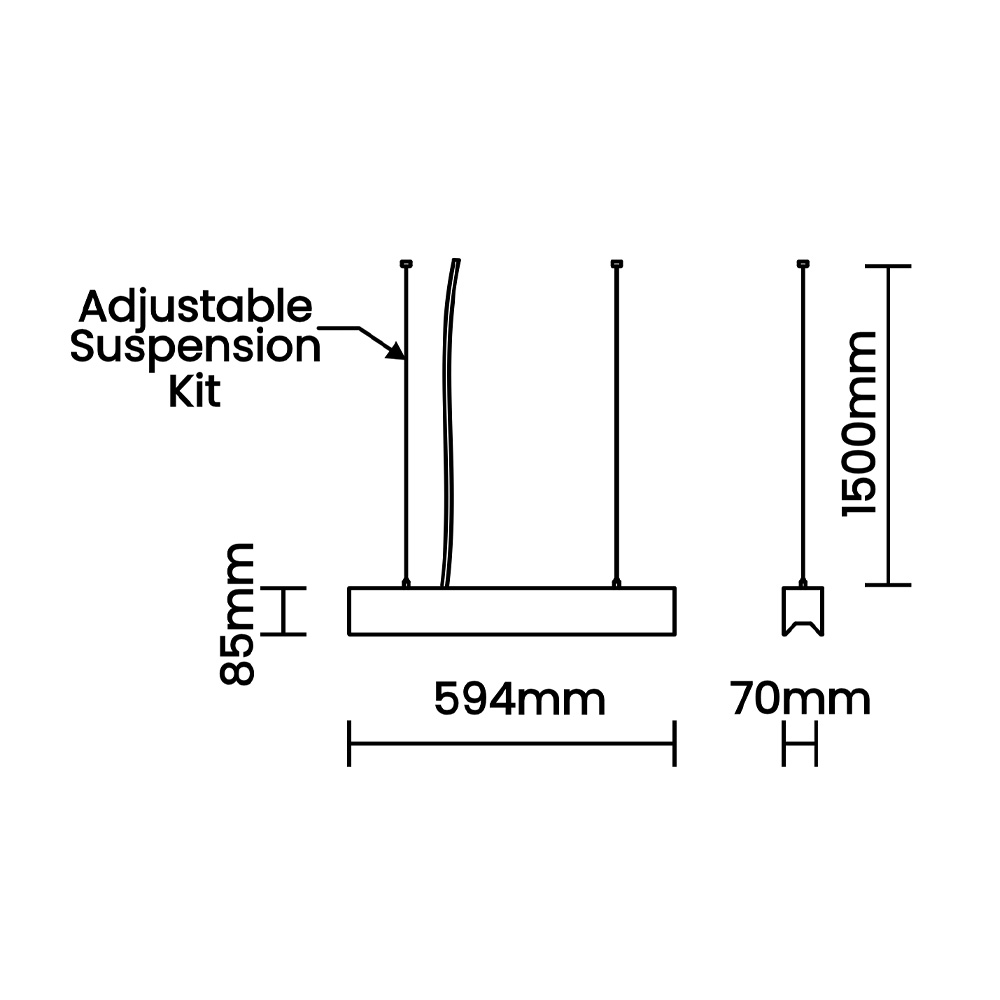

Installation Ceiling Suspended

Construction & Materials

Housing Extruded Aluminium

Primary Lens -

Primary Reflector Aluminium White Painted

Secondary Reflector -

Body Finish White,Black

Diffuser Microprismatic

Antiglare Baffle Black,White,Custom

Thermal Management

Heat Sink Material Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction General Diffuse

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 11.9W

System Power Watts 13.7W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD mid power

LED Fitted Samsung Mid Power LED array 33V-36Vdc/350mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Download Data Sheet

Back to ZuG family
Optional

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
ZuG MPD P 60 14W WW27K CRI80 87° SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
ZuG MPD P 60 14W 1384 101 2700K WW27K CRI80 87° White SWH Non Dimmable On/Off
1425 104 3000K WW30K CRI90 Black SBL Phase Dimmable PDIM
1493 109 4000K NW40K Dali Dimmable DDIM
1521 111 5700K CW57K Bluetooth Dimmable BTTM
2700K-5700K TW Casambi CBTM
ZuG MPD P 60 14W WW27K CRI80 87° SWH On/Off
