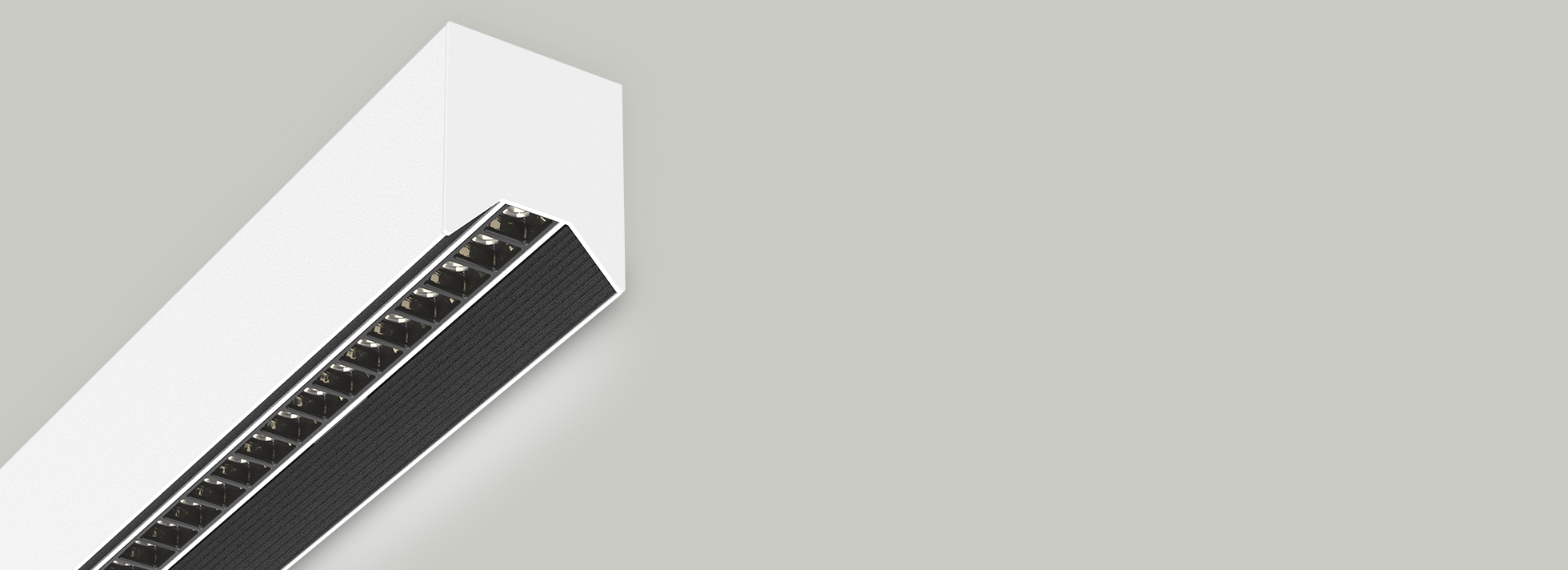

ZuG Dark S 56 | 16W

Product Reference

Environment Indoor

Installation Ceiling Surface

Construction & Materials

Housing Aluminium Extrusion

Primary Lens PMMA

Primary Reflector -

Secondary Reflector PC Black Cover

Body Finish White,Black

Diffuser -

Antiglare Baffle Black,White,Custom

Thermal Management

Heat Sink Material Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 13.7W

System Power Watts 15.7W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type SMD high power

LED Fitted Cree 3030 LED array 39V-42Vdc/350mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Download Data Sheet

Back to ZuG family
Optional

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
ZuG Dark S 56 16W WW27K CRI80 28°(MD) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
ZuG Dark S 56 16W 1696 108 2700K WW27K CRI80 28°(MD) White SWH Non Dimmable On/Off
1727 110 3000K WW30K CRI90 66°(VWD) Black SBL Phase Dimmable PDIM
1806 115 4000K NW40K Dali Dimmable DDIM
1853 118 5700K CW57K Bluetooth Dimmable BTTM
Casambi CBTM
ZuG Dark S 56 16W WW27K CRI80 28°(MD) SWH On/Off
