Product Reference
Environment Indoor
Installation Ceiling Recess
Construction & Materials
Housing Aluminium
Primary Lens PMMA
Primary Reflector -
Secondary Reflector Anodised
Body Finish White,Black,Custom
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Adjustable
Tilt Yes
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 17.1W
System Power Watts 19.6W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted Cree COB LED 36Vdc/500mA
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

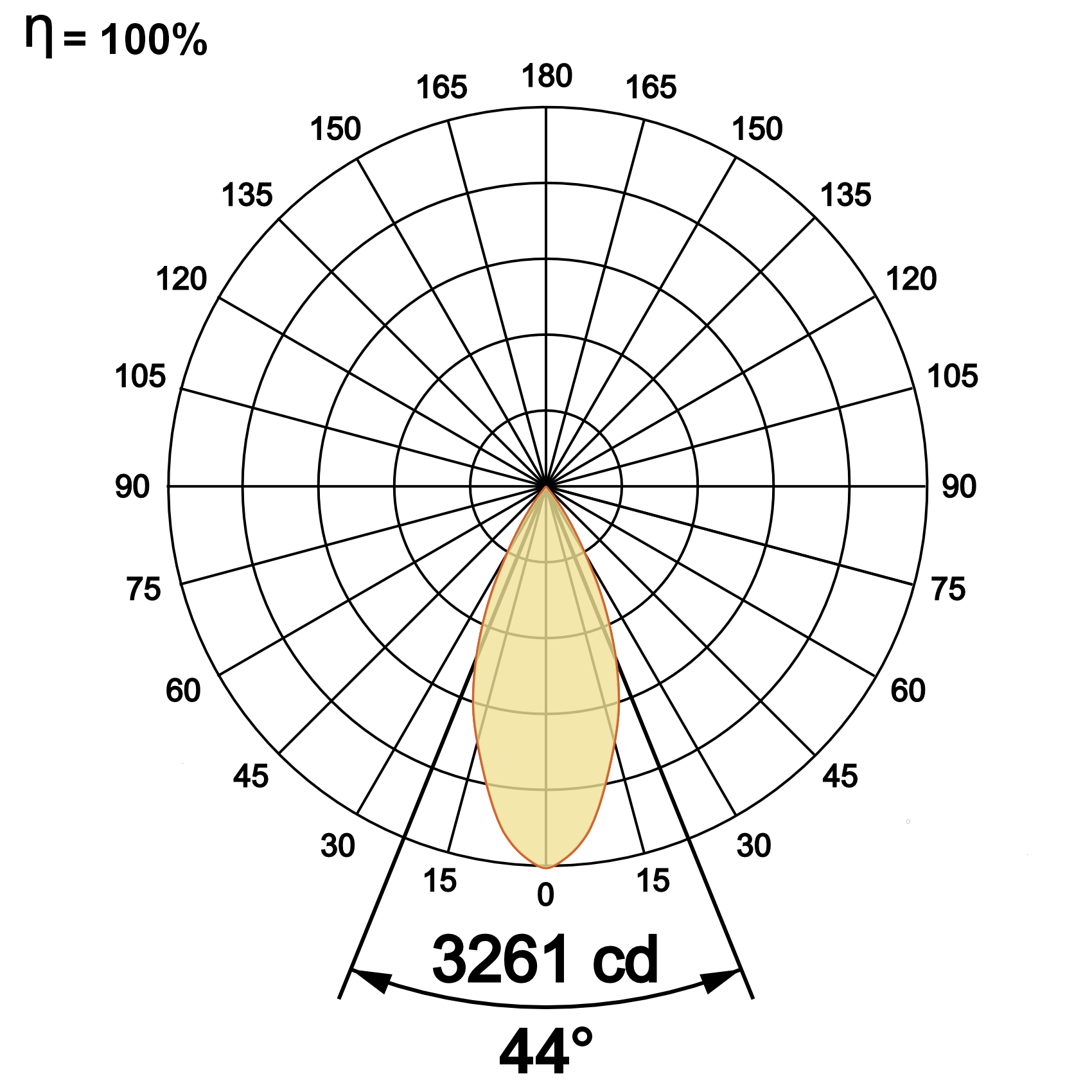

Light Distribution
Ordering Details
Code Example:
Name | Watt | CCT | CRI | Angle | Finish | Control |
---|---|---|---|---|---|---|
Xcent Pro | 20W | WW27K | CRI80 | 24°(SS) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
---|---|---|---|---|---|---|---|---|---|---|---|
Xcent Pro | 20W | 1803 | 92 | 2700K | WW27K | CRI80 | 24°(SS) | White | SWH | Non Dimmable | On/Off |
1862 | 95 | 3000K | WW30K | CRI90 | 32°(MD) | Black | SBL | Phase Dimmable | PDIM | ||
1960 | 100 | 4000K | NW40K | 35°(WD) | Custom | CSM | Dali Dimmable | DDIM | |||
1999 | 102 | 5700K | CW57K | 44°(VWD) | Bluetooth Dimmable | BTTM | |||||
2700K-5700K | TW | Casambi | CBTM | ||||||||
Warm to Dim | W2D | ||||||||||
Xcent Pro | 20W | WW27K | CRI80 | 24°(SS) | SWH | On/Off |
