Product Reference
Environment Outdoor
Installation Wall Surface,Wall Surface
Construction & Materials
Housing Die Cast Aluminium
Primary Lens -
Primary Reflector -
Secondary Reflector -
Body Finish White,Black,Grey
Diffuser Premium high-transmission opal
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 12.5W
System Power Watts 14.4W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Samsung Mid power LED array 32-36Vdc/350mA
Controls
Standard Switchable On/Off
Optional DDIM,Non Dimmable
.png)

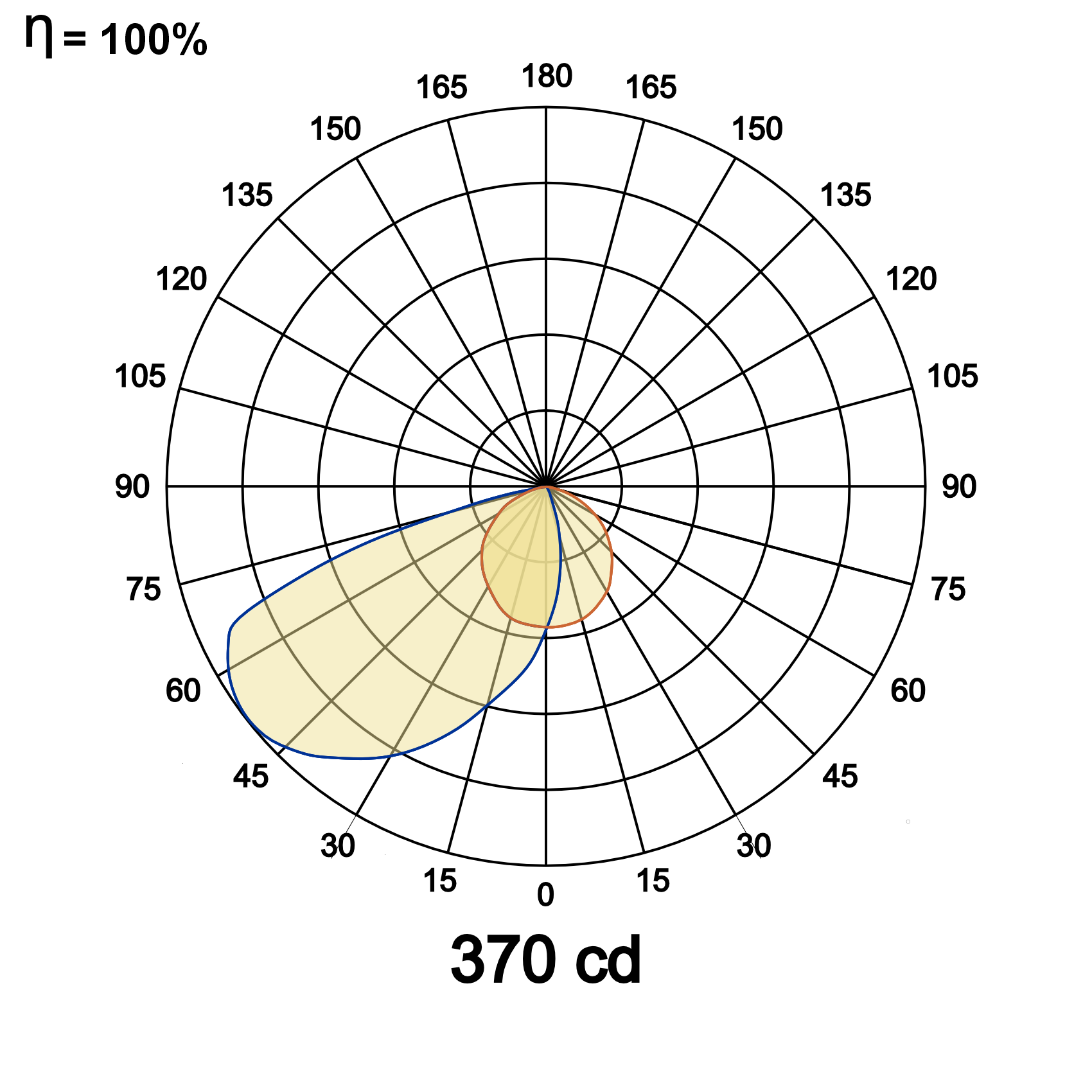

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Wally | 15W | WW27K | CRI80 | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Wally | 15W | 562 | 39 | 2700K | WW27K | CRI80 | White | SWH | Non Dimmable | On/Off | |
| 590 | 41 | 3000K | WW30K | CRI90 | Black | SBL | Dali Dimmable | DDIM | |||
| 619 | 43 | 4000K | NW40K | Grey | GGT | ||||||
| 648 | 45 | 5700K | CW57K | ||||||||
| Wally | 15W | WW27K | CRI80 | SWH | On/Off | ||||||
