Product Reference
Environment Indoor

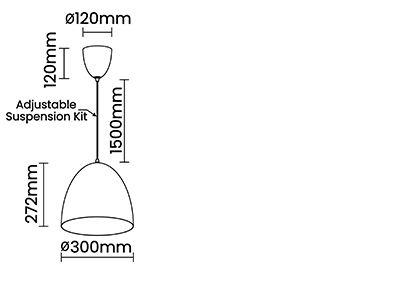

Installation Ceiling Suspended
Construction & Materials
Housing Spun Aluminium
Primary Lens -
Primary Reflector -
Secondary Reflector -
Body Finish White,Black,Custom
Diffuser Premium high-transmission opal,Microprismatic
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction General Diffuse
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 17.3W
System Power Watts 19.9W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Samsung Mid power LED array 20V-24Vdc/700mA
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,CASAMBI,Non Dimmable

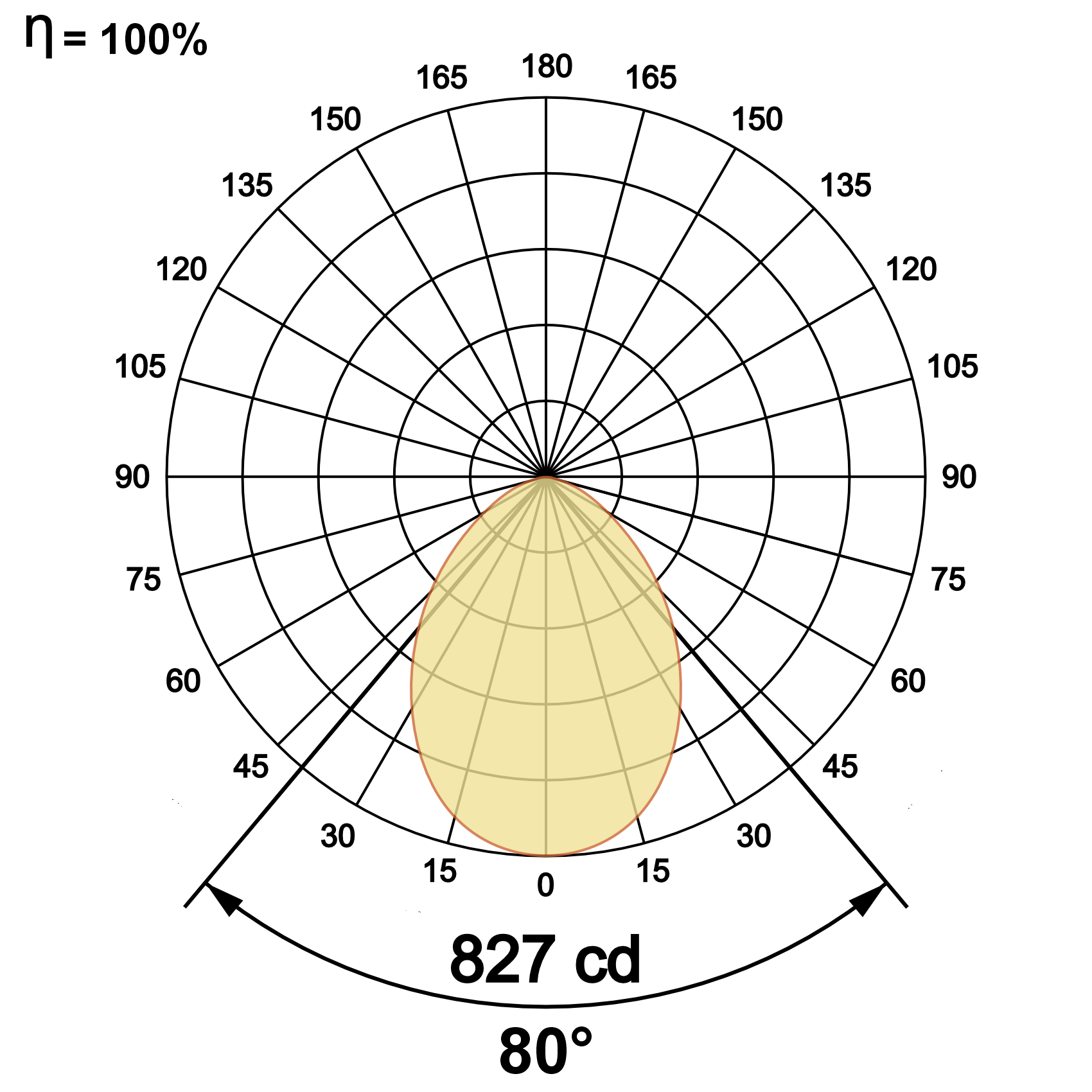

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| u4yA 30 | 20W | WW27K | CRI80 | 80° | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| u4yA 30 | 20W | 1353 | 68 | 2700K | WW27K | CRI80 | 80° | White | SWH | Non Dimmable | On/Off |
| 1393 | 70 | 3000K | WW30K | CRI90 | Black | SBL | Phase Dimmable | PDIM | |||
| 1473 | 74 | 4000K | NW40K | Custom | CSM | Dali Dimmable | DDIM | ||||
| 1512 | 76 | 5700K | CW57K | Casambi | CBTM | ||||||
| 2700K-5700K | |||||||||||
| u4yA 30 | 20W | WW27K | CRI80 | 80° | SWH | On/Off | |||||
