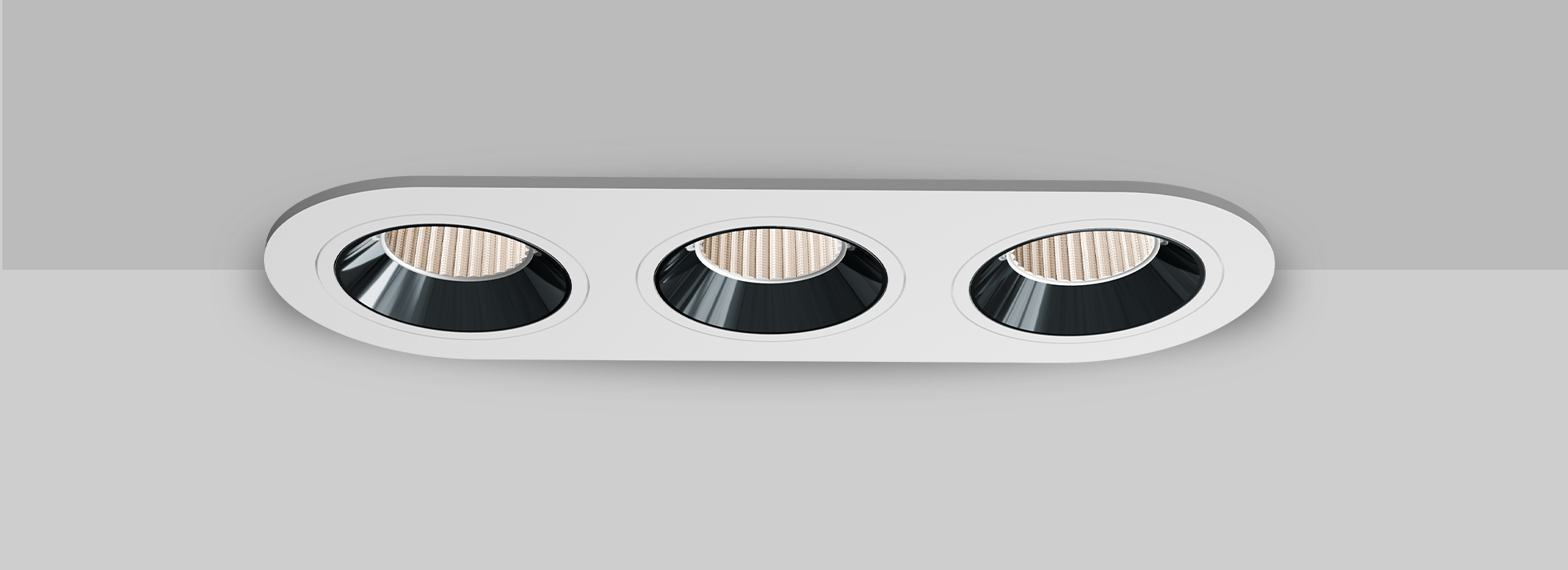

Sigma 60 3-way | 3x12W

Product Reference

Environment Indoor

Installation Ceiling Recess

Construction & Materials

Housing Aluminium

Primary Lens -

Primary Reflector -

Secondary Reflector Anodised

Body Finish White,Black

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Extruded Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 3x10.4W

System Power Watts 3x11.9W

Operating Voltage Vin 220-240Vac

Power Factor p.f. >0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80

Led Type COB

LED Fitted Cree COB LED 33V-36Vdc/300mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM

Download Data Sheet

Back to Sigma family
Optional

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Sigma 60 3-way 3x12W 2700K CRI80 29° SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Sigma 60 3-way 3x12W 3x1011 85 2700K 2700K CRI80 29° White SWH Non Dimmable On/Off
3x1047 88 3000K 3000K 42° Black SBL Phase Dimmable PDIM
3x1094 92 4000K 4000K 62° Dali Dimmable DDIM
3x1118 94 5700K 5700K
Sigma 60 3-way 3x12W 2700K CRI80 29° SWH On/Off
