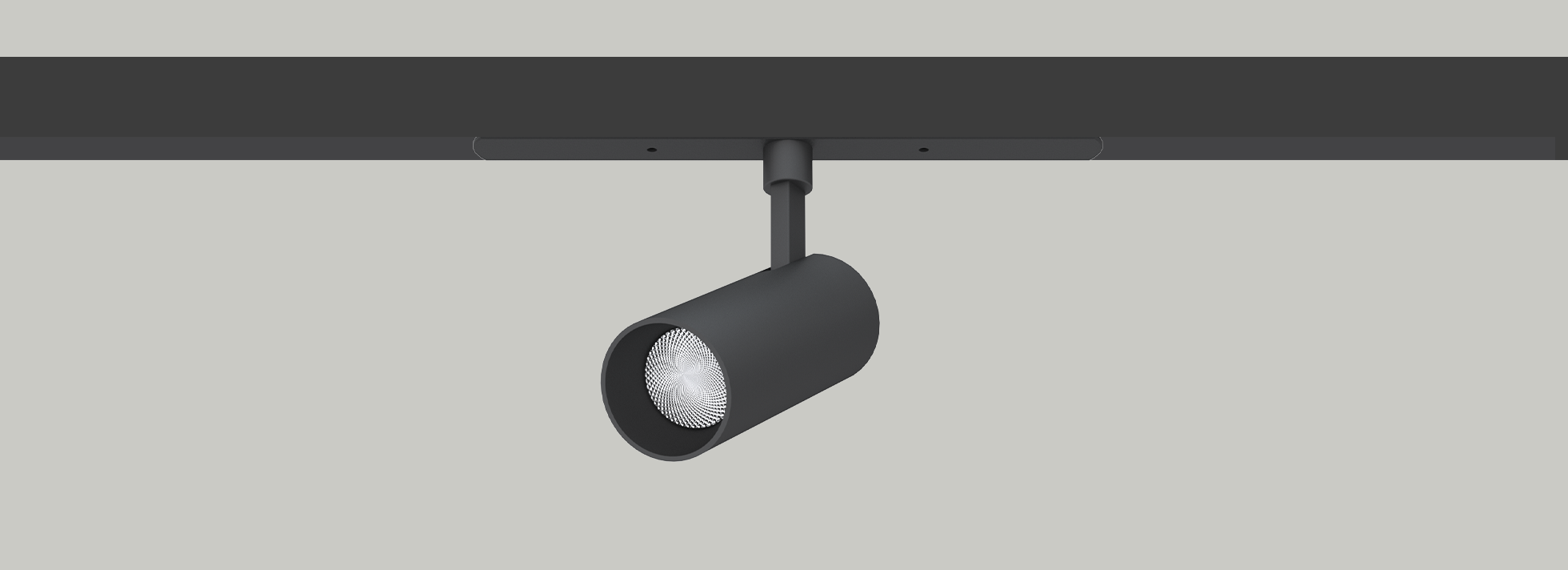

Peeping Tom 48V | 10.8W

Product Reference

Environment Indoor

Installation Track Mounted

Construction & Materials

Housing Die Cast Aluminium,Milled Aluminium

Primary Lens PMMA

Primary Reflector -

Secondary Reflector -

Body Finish White,Black

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Adjustable

Tilt Yes

Swivel Yes

Electrical System

Driven with Constant Voltage Driver

Input Voltage/Hz 48V

Control Gear Included

Mounting Remote

LED Power Watts 10.6W

System Power Watts -

Operating Voltage Vin 48V

Power Factor p.f. -

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted Cree COB LED 36Vdc/300mA

Controls

Standard Switchable On/Off

Optional DDIM,BTTM,CASAMBI,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Peeping Tom 48V 10.8W WW27K CRI80 28°(MD) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Peeping Tom 48V 10.8W 1018 96 2700K WW27K CRI80 28°(MD) White SWH Non Dimmable On/Off
1049 99 3000K WW30K CRI90 36°(WD) Black SBL Dali Dimmable DDIM
1102 104 4000K NW40K 57°(VWD) Bluetooth Dimmable BTTM
1124 106 5700K CW57K Casambi CBTM
2700K-5700K TW
Warm to Dim W2D
Peeping Tom 48V 10.8W WW27K CRI80 28°(MD) SWH On/Off
