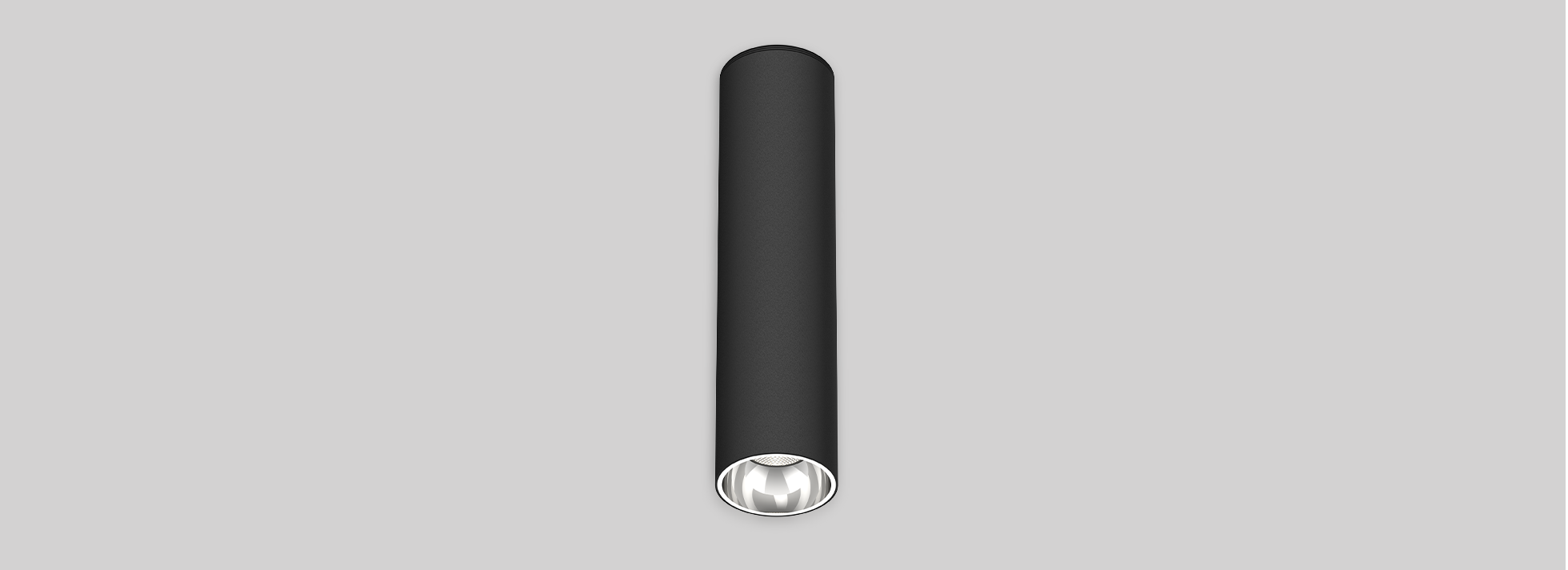

Ovo Carbon S 75 | 10W

Product Reference

Environment Indoor

Installation Ceiling Surface

Construction & Materials

Housing Aluminium

Primary Lens PMMA

Primary Reflector -

Secondary Reflector PC metallised

Body Finish White,Black,Custom

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 8.8W

System Power Watts 10.1W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted CREE COB LED 36Vdc/350mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Download Data Sheet

Back to Ovo family
Optional

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Ovo Carbon S 75 10W WW27K CRI80 22°(SS) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Ovo Carbon S 75 10W 879 87 2700K WW27K CRI80 22°(SS) White SWH Non Dimmable On/Off
909 90 3000K WW30K CRI90 29°(MD) Black SBL Phase Dimmable PDIM
960 95 4000K NW40K 51°(WD) Custom CSM Dali Dimmable DDIM
980 97 5700K CW57K Bluetooth Dimmable BTTM
2700K-5700K TW Casambi CBTM
Warm to Dim W2D
Ovo Carbon S 75 10W WW27K CRI80 22°(SS) SWH On/Off
