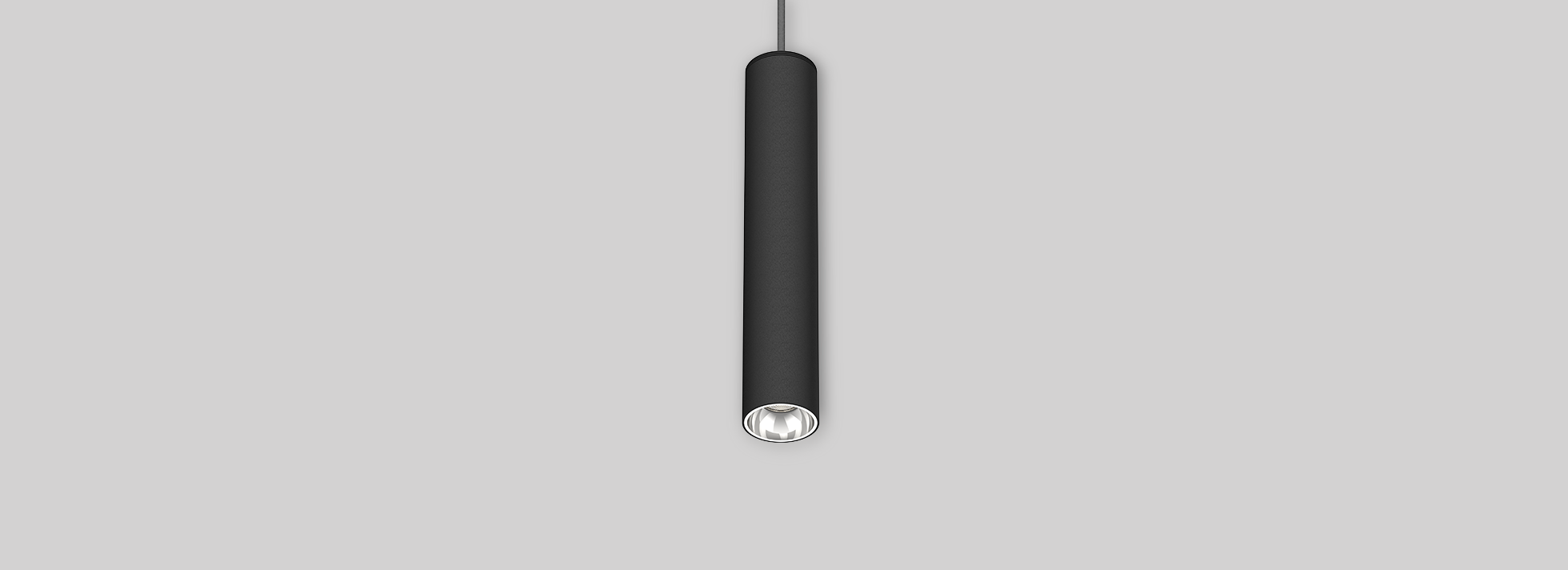

Ovo Carbon P 50 | 8W

Product Reference

Environment Indoor

Installation Ceiling Suspended

Construction & Materials

Housing Aluminium

Primary Lens PMMA

Primary Reflector PC metallised

Secondary Reflector -

Body Finish White,Black,Custom

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 7.5W

System Power Watts 8.6W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted CREE COB LED 36Vdc/180mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,CASAMBI,Non Dimmable

Download Data Sheet

Back to Ovo family
Optional

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
Ovo Carbon P 50 8W WW27K CRI80 20°(SS) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
Ovo Carbon P 50 8W 550 64 2700K WW27K CRI80 20°(SS) White SWH Non Dimmable On/Off
585 68 3000K WW30K CRI90 28°(MD) Black SBL Phase Dimmable PDIM
620 72 4000K NW40K 36°(WD) Custom CSM Dali Dimmable DDIM
637 74 5700K CW57K Casambi CBTM
Ovo Carbon P 50 8W WW27K CRI80 20°(SS) SWH On/Off
