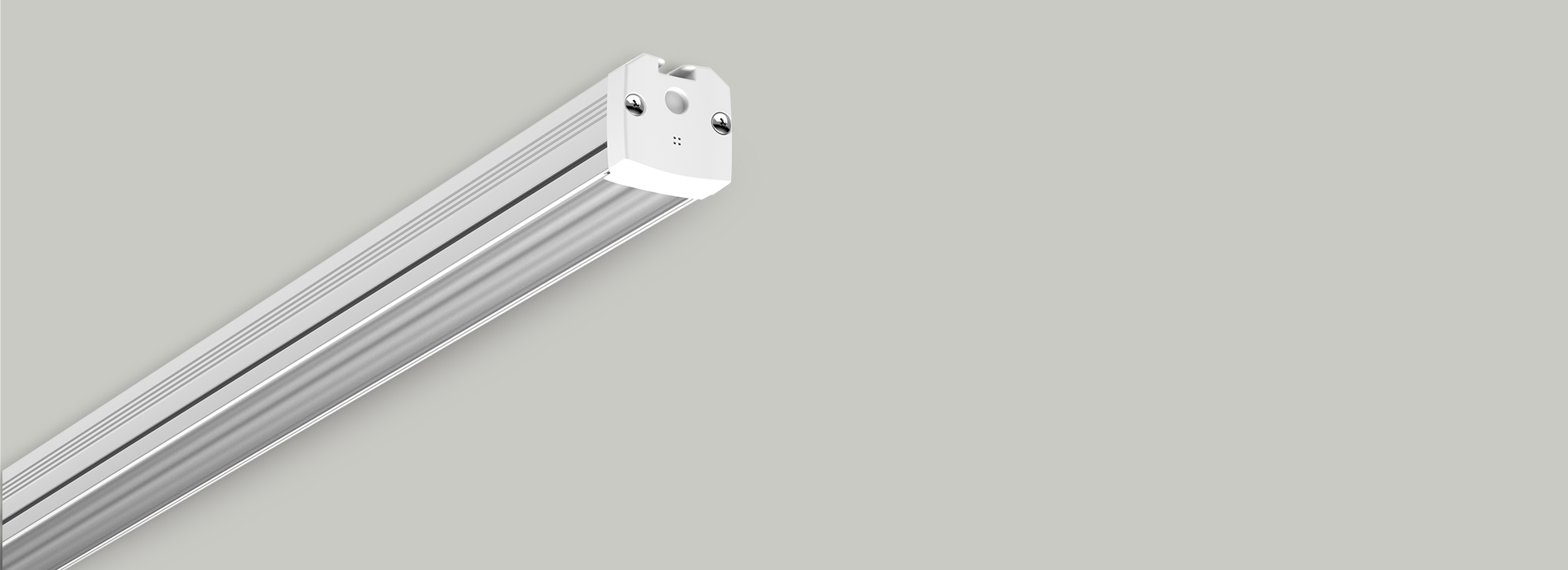

Product Reference
Environment Outdoor
Installation Ceiling Surface
Construction & Materials
Housing Extruded Aluminium
Primary Lens Polycarbonate
Primary Reflector -
Secondary Reflector -
Body Finish Anodised Aluminium
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 34.1W
System Power Watts 39.2W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. >0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Samsung Mid power LED array 34-36Vdc/1000mA
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable
Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Outline Wallgrazer 120 | 40W | WW27K | CRI80 | 91°x 30° | AL | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Outline Wallgrazer 120 | 40W | 4077 | 104 | 2700K | WW27K | CRI80 | 91°x 30° | Anodised Aluminium | AL | Non Dimmable | On/Off |
| 4194 | 107 | 3000K | WW30K | CRI90 | Phase Dimmable | PDIM | |||||
| 4390 | 112 | 4000K | NW40K | Dali Dimmable | DDIM | ||||||
| 4469 | 114 | 5700K | CW57K | Bluetooth Dimmable | BTTM | ||||||
| 2700K-5700K | TW | Casambi | CBTM | ||||||||
| Outline Wallgrazer 120 | 40W | WW27K | CRI80 | 91°x 30° | AL | On/Off | |||||
