Product Reference
Environment Indoor
Installation Ceiling Surface
Construction & Materials
Housing Spun Aluminium
Primary Lens -
Primary Reflector -
Secondary Reflector -
Body Finish White,Black,Custom
Diffuser Premium high-transmission opal
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction General Diffuse
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 15.9W
System Power Watts 18.3W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Samsung Mid power LED array 20V-24Vdc/700mA
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,CASAMBI,Non Dimmable

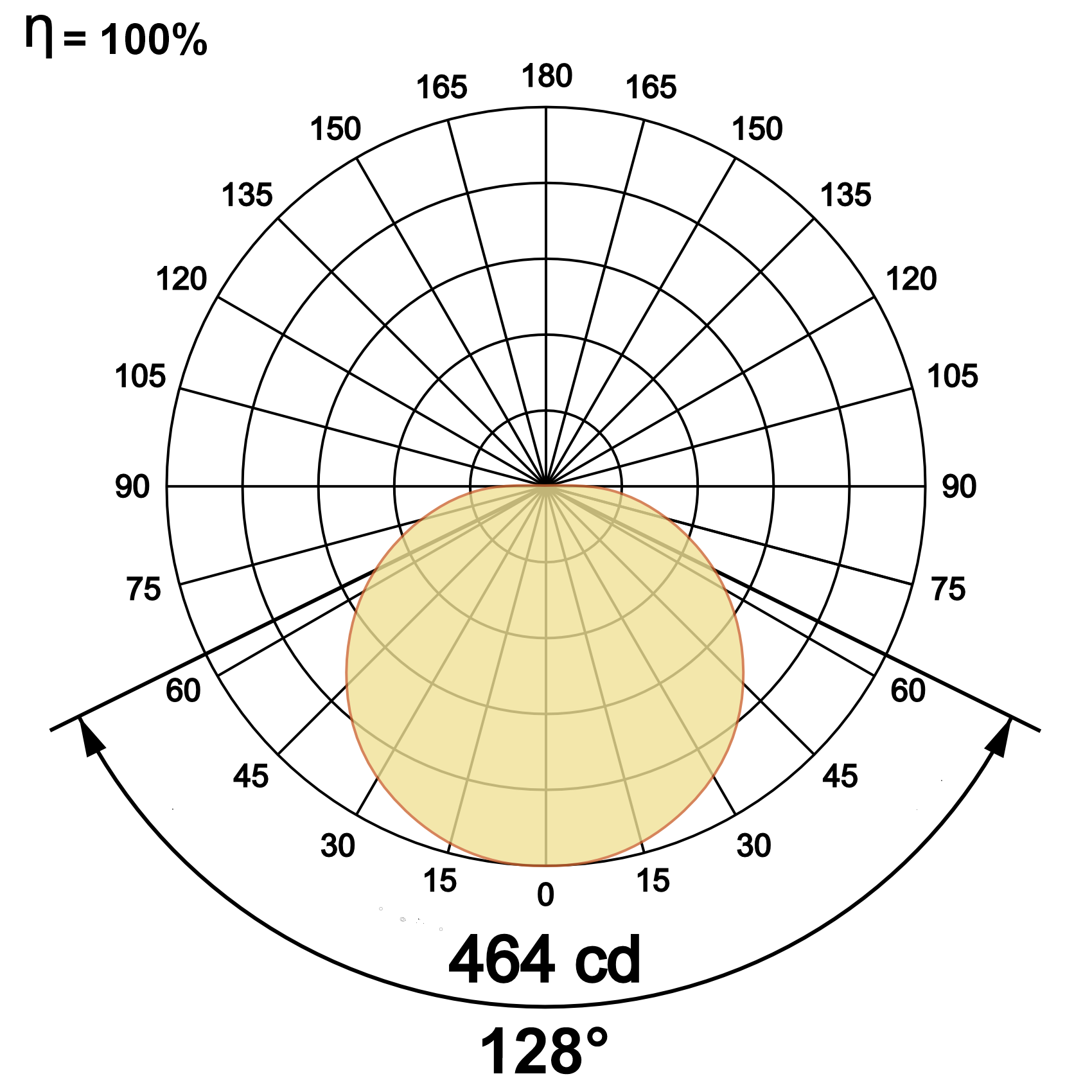

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| oH-Ho NXT | 20W | WW27K | CRI80 | 128° | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| oH-Ho NXT | 20W | 1464 | 80 | 2700K | WW27K | CRI80 | 128° | White | SWH | Non Dimmable | On/Off |
| 1519 | 83 | 3000K | WW30K | CRI90 | Black | SBL | Phase Dimmable | PDIM | |||
| 1610 | 88 | 4000K | NW40K | Custom | CSM | Dali Dimmable | DDIM | ||||
| 1647 | 90 | 5700K | CW57K | Casambi | CBTM | ||||||
| 2700K-5700K | TW | ||||||||||
| oH-Ho NXT | 20W | WW27K | CRI80 | 128° | SWH | On/Off | |||||
