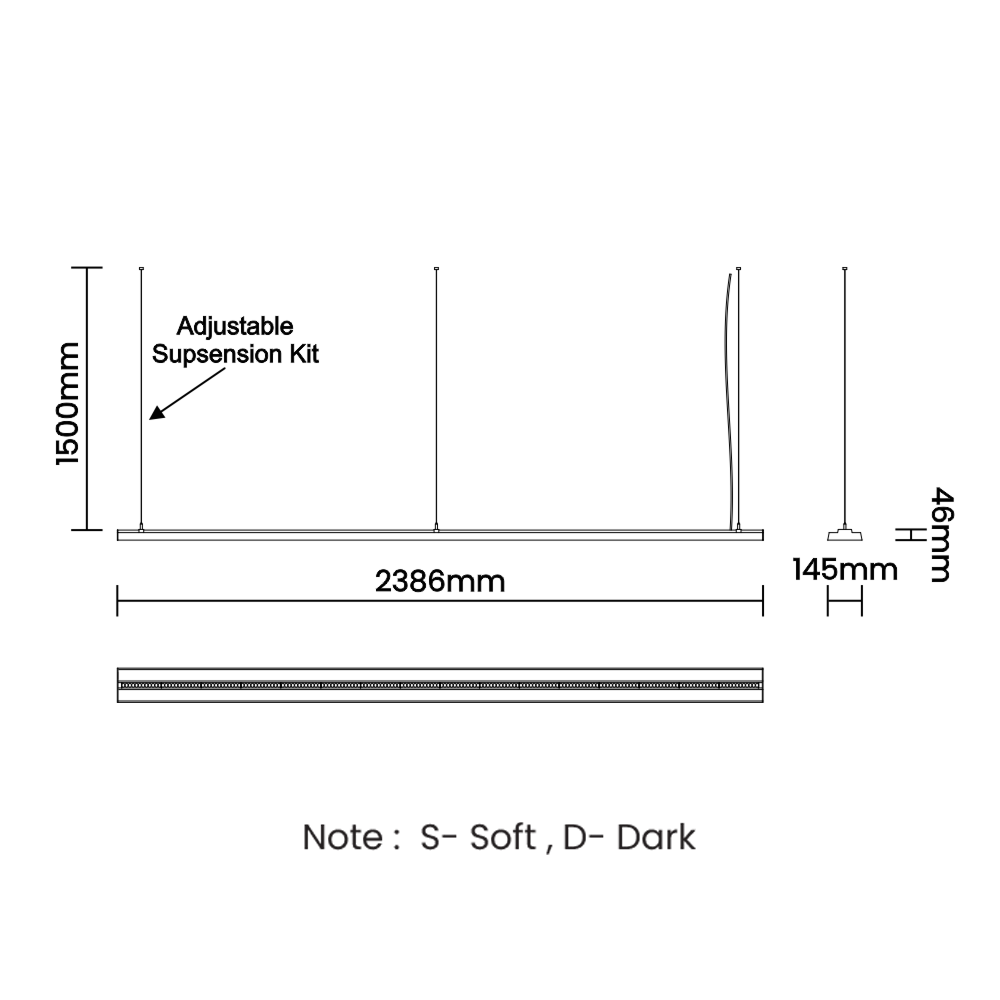

Product Reference
Environment Indoor
Installation Ceiling Suspended
Construction & Materials
Housing Extruded Aluminium
Primary Lens PMMA
Primary Reflector PC metallised
Secondary Reflector PC Black Cover
Body Finish White,Black,Custom
Diffuser Microprismatic
Antiglare Baffle -
Thermal Management
Heat Sink Material Extruded Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 70.6W
System Power Watts 81.2W
Operating Voltage Vin 220V- 240V/50-60Hz
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Osram/Samsung Mid power LED array 32V-36Vdc/1400mA(S) + 700mA(D)
Controls
Standard Switchable On/Off
Optional DDIM,CASAMBI,Non Dimmable
Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Nexus 150 SDS P MPD 240 | 84W | WW27K | CRI80 | 104°(S)+53°(D) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Nexus 150 SDS P MPD 240 | 84W | 7068 | 87 | 2700K | WW27K | CRI80 | 104°(S)+53°(D) | White | SWH | Non Dimmable | On/Off |
| 7284 | 90 | 3000K | WW30K | CRI90 | Black | SBL | Dali Dimmable | DDIM | |||
| 7664 | 94 | 4000K | NW40K | Custom | CSM | Casambi | CBTM | ||||
| 7826 | 96 | 5700K | CW57K | ||||||||
| 2700K-5700K | TW | ||||||||||
| Nexus 150 SDS P MPD 240 | 84W | WW27K | CRI80 | 104°(S)+53°(D) | SWH | On/Off | |||||
