Product Reference
Environment Outdoor
Installation Ceiling Surface,Floor Surface,Wall Surface,Wall Surface
Construction & Materials
Housing Die Cast Aluminium
Primary Lens Tempered Glass Visor
Primary Reflector PC metallised
Secondary Reflector -
Body Finish Black,Grey
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Adjustable
Tilt Yes
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 6.6W
System Power Watts 8.3W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted CREE COB LED 9Vdc/700mA
Controls
Standard Switchable On/Off
Optional Non Dimmable

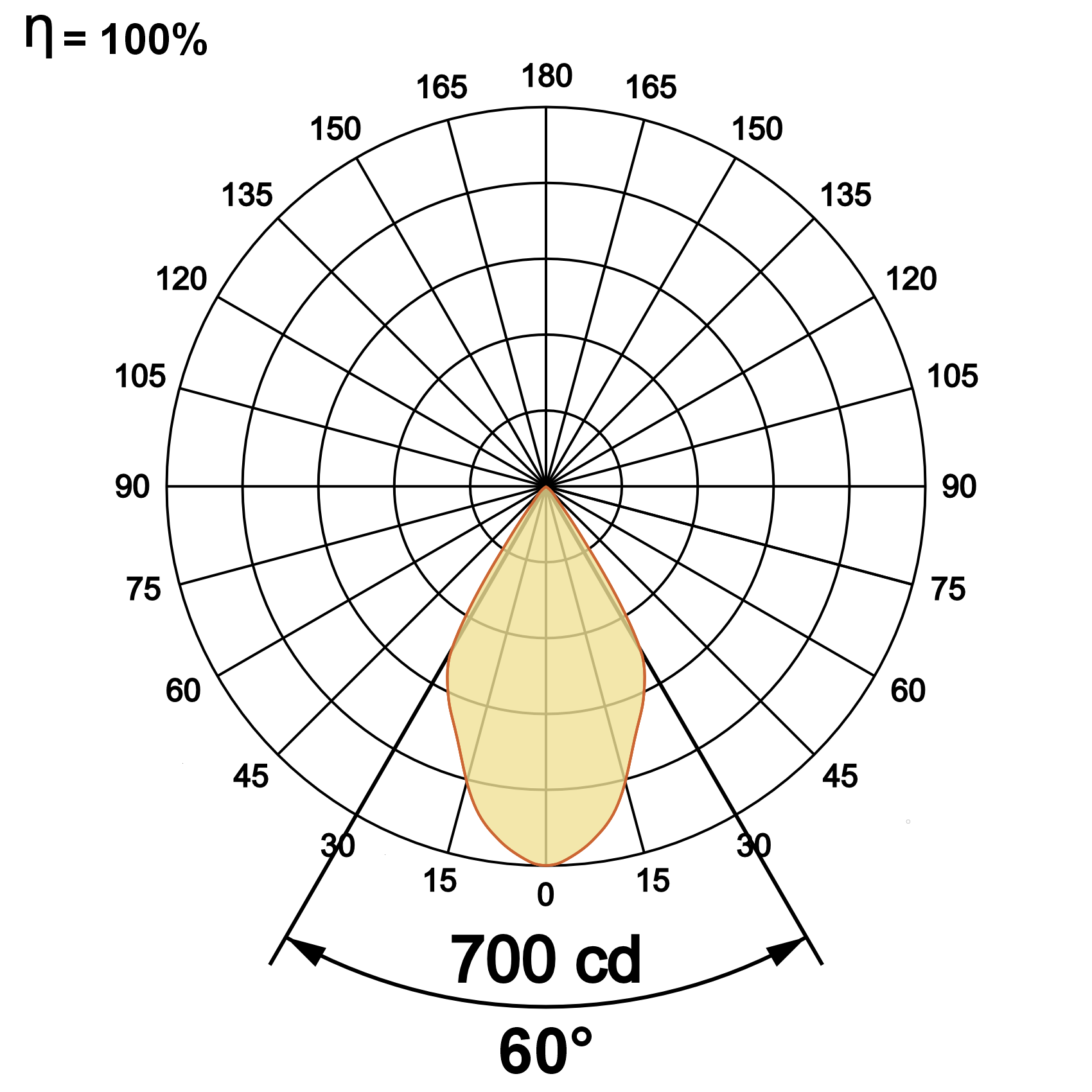

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| Jugnu | 8W | WW27K | CRI80 | 13°(SS) | SBL | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Jugnu | 8W | 531 | 64 | 2700K | WW27K | CRI80 | 13°(SS) | Black | SBL | Non Dimmable | On/Off |
| 564 | 68 | 3000K | WW30K | CRI90 | 28°(MD) | Grey | GGT | ||||
| 598 | 72 | 4000K | NW40K | 60°(WD) | |||||||
| 614 | 74 | 5700K | CW57K | ||||||||
| Jugnu | 8W | WW27K | CRI80 | 13°(SS) | SBL | On/Off | |||||
