Product Reference
Environment Indoor
Installation Ceiling Suspended
Construction & Materials
Housing Extruded Aluminium
Primary Lens PMMA
Primary Reflector PC metallised
Secondary Reflector Black Raster – PC,White Raster – PC
Body Finish White,Black,Custom
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed Asymmetric
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 26.6W
System Power Watts 30.6W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD
LED Fitted Osram/Samsung Mid power LED array 39-42Vdc/700mA
Controls
Standard Switchable On/Off
Optional DDIM,CASAMBI,Non Dimmable

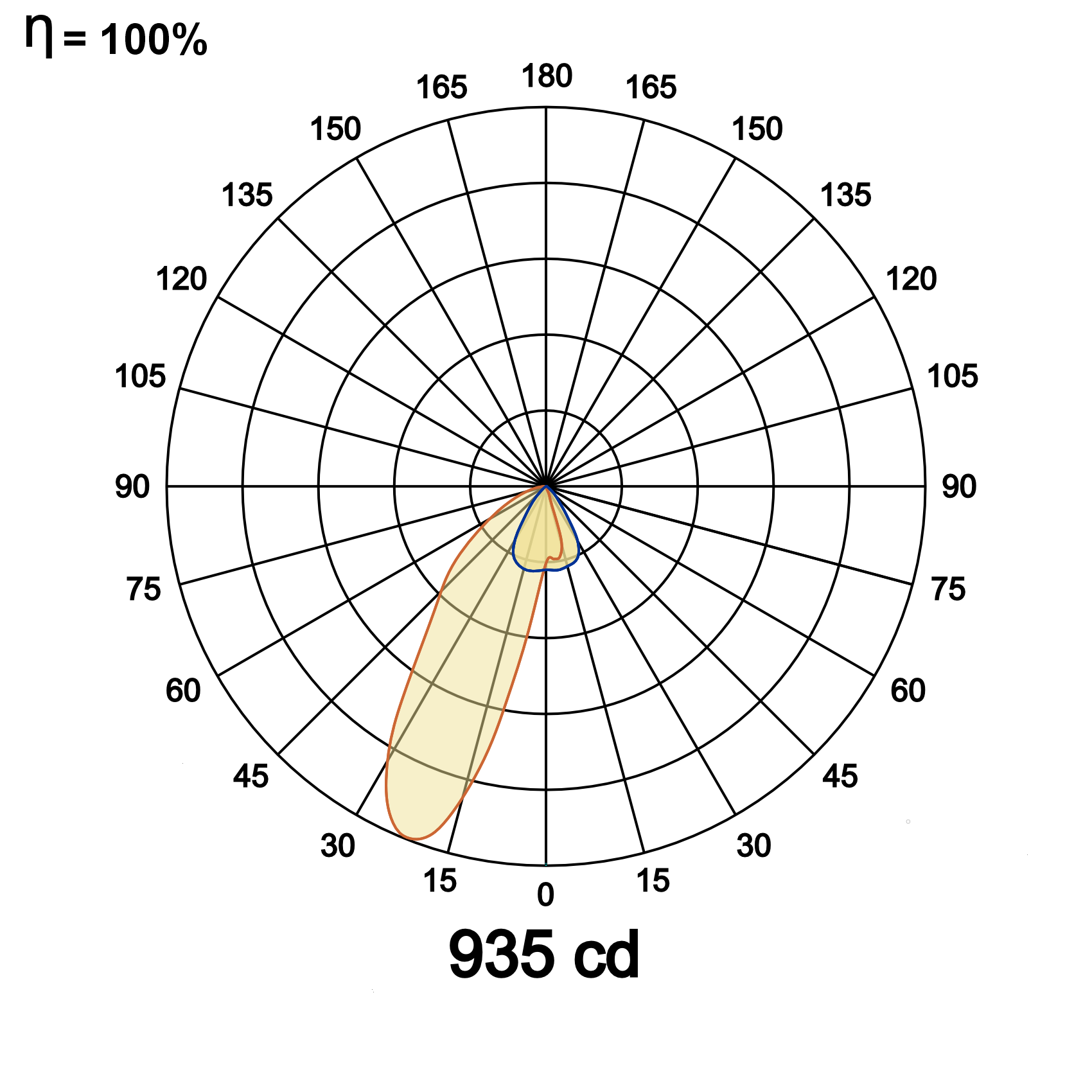

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| iWash P 112 | 32W | WW27K | CRI80 | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| iWash P 112 | 32W | 2815 | 92 | 2700K | WW27K | CRI80 | White | SWH | Non Dimmable | On/Off | |
| 2907 | 95 | 3000K | WW30K | CRI90 | Black | SBL | Dali Dimmable | DDIM | |||
| 3091 | 101 | 4000K | NW40K | Custom | CSM | Casambi | CBTM | ||||
| 3152 | 103 | 5700K | CW57K | ||||||||
| 2700K-5700K | TW | ||||||||||
| iWash P 112 | 32W | WW27K | CRI80 | SWH | On/Off | ||||||
