Product Reference
Environment Indoor
Installation Ceiling Recess
Construction & Materials
Housing Extruded Aluminium
Primary Lens -
Primary Reflector -
Secondary Reflector -
Body Finish White,Black,Custom
Diffuser Opal PC
Antiglare Baffle -
Thermal Management
Heat Sink Material Extruded Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction General Diffuse
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 33.8W
System Power Watts 38.8W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Samsung Mid power LED array 34-36Vdc/1000mA
Controls
Standard Switchable On/Off
Optional DDIM,BTTM,CASAMBI,Non Dimmable

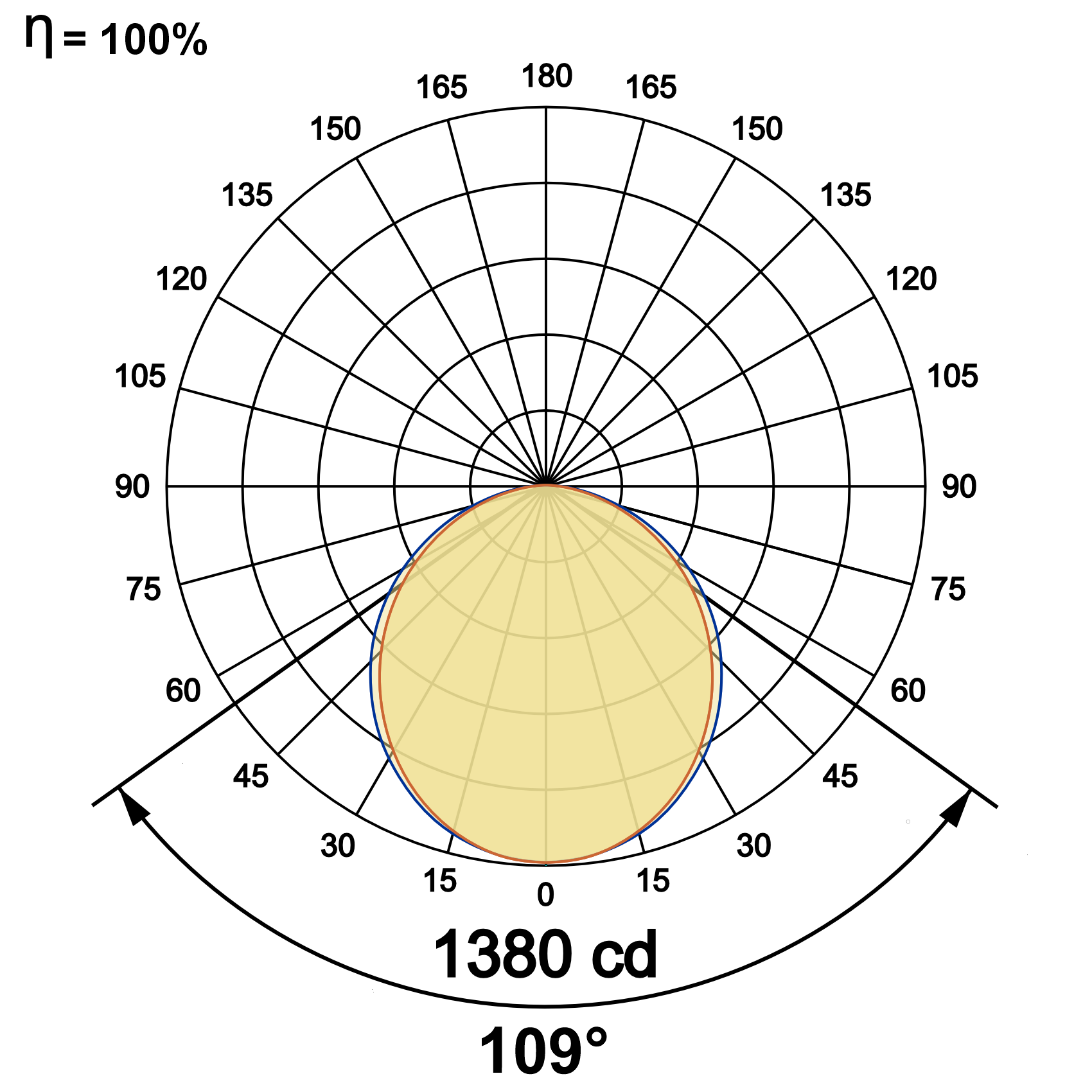

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| iSoft R 224 | 40W | WW27K | CRI80 | 109° | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| iSoft R 224 | 40W | 3492 | 90 | 2700K | WW27K | CRI80 | 109° | White | SWH | Non Dimmable | On/Off |
| 3608 | 93 | 3000K | WW30K | CRI90 | Black | SBL | Dali Dimmable | DDIM | |||
| 3802 | 98 | 4000K | NW40K | Custom | CSM | Bluetooth Dimmable | BTTM | ||||
| 3880 | 100 | 5700K | CW57K | Casambi | CBTM | ||||||
| iSoft R 224 | 40W | WW27K | CRI80 | 109° | SWH | On/Off | |||||
