Product Reference
Environment Indoor
Installation Ceiling Suspended
Construction & Materials
Housing Extruded Aluminium
Primary Lens -
Primary Reflector -
Secondary Reflector -
Body Finish White,Black,Custom
Diffuser Opal PC
Antiglare Baffle -
Thermal Management
Heat Sink Material Extruded Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction General Diffuse
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 45.9W
System Power Watts 52.W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD mid power
LED Fitted Samsung Mid power LED array 34-36Vdc/1400mA
Controls
Standard Switchable On/Off
Optional DDIM,CASAMBI,Non Dimmable

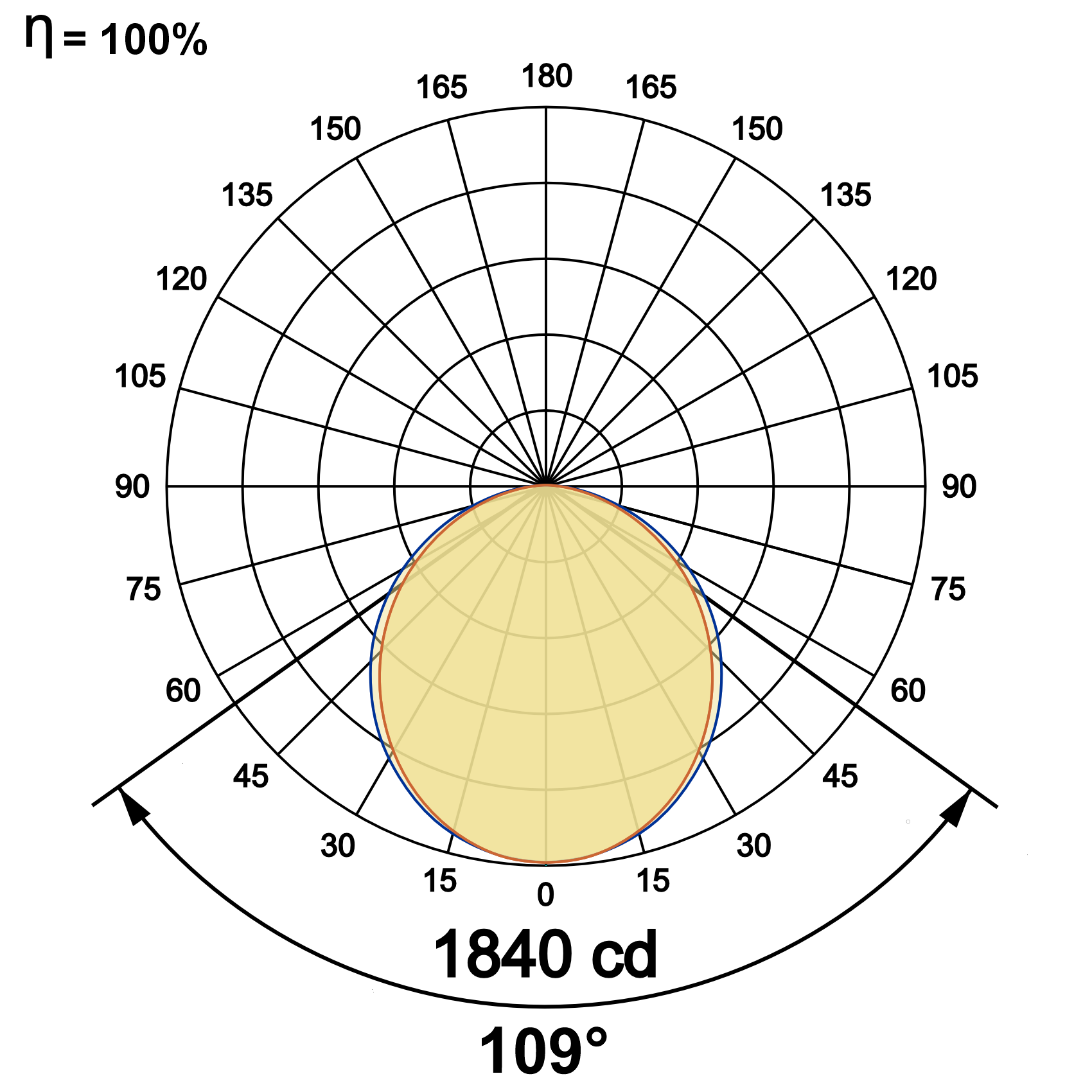

Light Distribution
Ordering Details
Code Example:
Name | Watt | CCT | CRI | Angle | Finish | Control |
---|---|---|---|---|---|---|
iSoft P 224 | 56W | WW27K | CRI80 | 109° | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
---|---|---|---|---|---|---|---|---|---|---|---|
iSoft P 224 | 56W | 4646 | 88 | 2700K | WW27K | CRI80 | 109° | White | SWH | Non Dimmable | On/Off |
4805 | 91 | 3000K | WW30K | CRI90 | Black | SBL | Dali Dimmable | DDIM | |||
5069 | 96 | 4000K | NW40K | Custom | CSM | Casambi | CBTM | ||||
5174 | 98 | 5700K | CW57K | ||||||||
iSoft P 224 | 56W | WW27K | CRI80 | 109° | SWH | On/Off |
