Product Reference
Environment Indoor
Installation Ceiling Surface
Construction & Materials
Housing Extruded Aluminium
Primary Lens PMMA
Primary Reflector -
Secondary Reflector -
Body Finish White,Black
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Voltage Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 16.2W
System Power Watts -
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L80/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD high power
LED Fitted Osram/Cree LED 23V-24Vdc
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

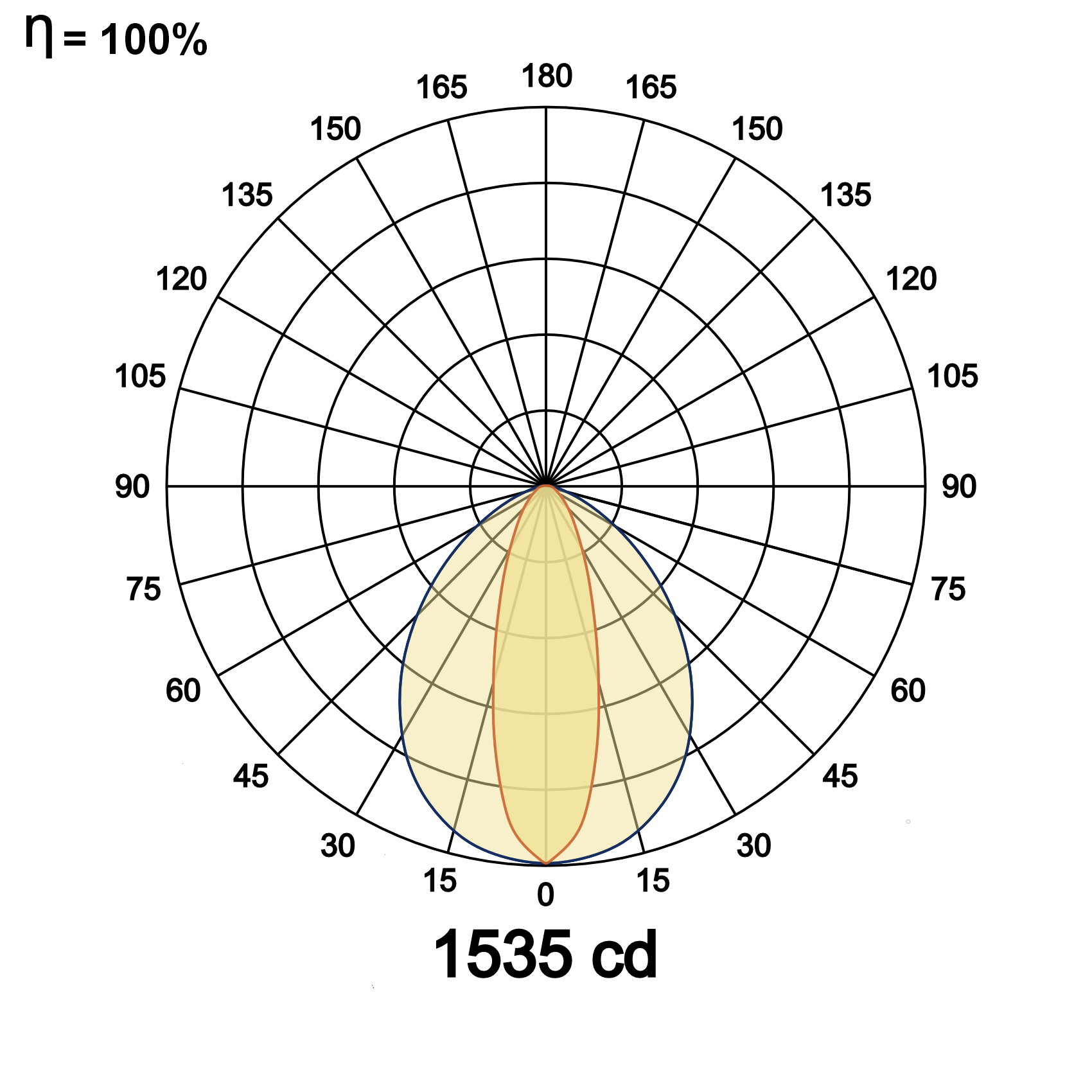

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| iSkim 100 | 16W | WW27K | CRI80 | 88°x 32° | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| iSkim 100 | 16W | 1555 | 96 | 2700K | WW27K | CRI80 | 88°x 32° | White | SWH | Non Dimmable | On/Off |
| 1604 | 99 | 3000K | WW30K | CRI90 | Black | SBL | Phase Dimmable | PDIM | |||
| 1685 | 104 | 4000K | NW40K | Dali Dimmable | DDIM | ||||||
| 1717 | 106 | 5700K | CW57K | Bluetooth Dimmable | BTTM | ||||||
| 2700K-5700K | TW | Casambi | CBTM | ||||||||
| iSkim 100 | 16W | WW27K | CRI80 | 88°x 32° | SWH | On/Off | |||||
