Product Reference
Environment Indoor
Installation Ceiling Suspended
Construction & Materials
Housing Extruded Aluminium
Primary Lens PMMA
Primary Reflector -
Secondary Reflector Black Raster – PC,White Raster – PC
Body Finish White,Black,Custom
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Extruded Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 81.1W
System Power Watts 93.2W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type SMD
LED Fitted Samsung Mid power LED array 39-42Vdc/2100mA
Controls
Standard Switchable On/Off
Optional DDIM,CASAMBI,Non Dimmable

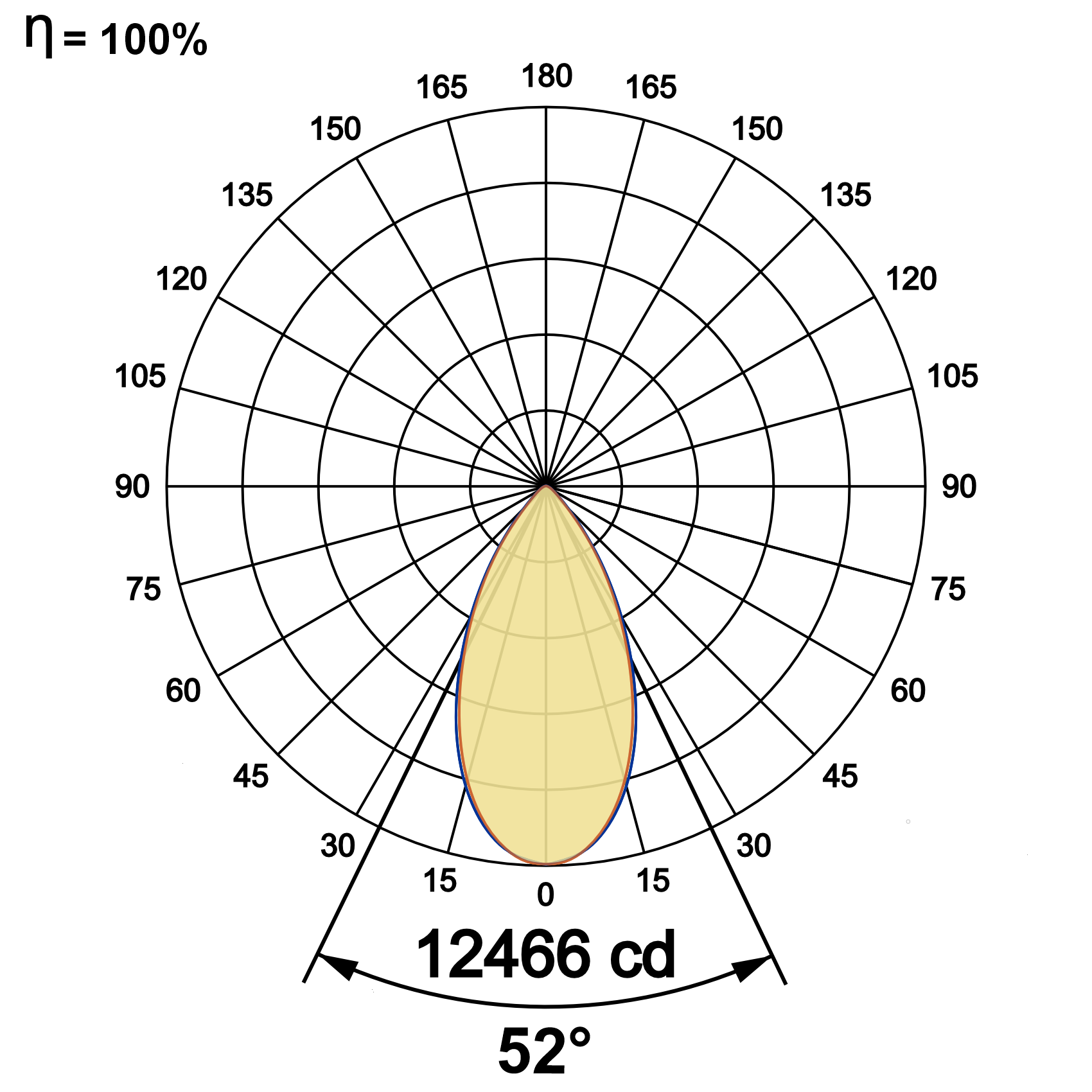

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| iPro P 224 | 96W | WW27K | CRI80 | 52°(WD) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| iPro P 224 | 96W | 10066 | 108 | 2700K | WW27K | CRI80 | 52°(WD) | White | SWH | Non Dimmable | On/Off |
| 10345 | 111 | 3000K | WW30K | CRI90 | 82°(VWD) | Black | SBL | Dali Dimmable | DDIM | ||
| 10904 | 117 | 4000K | NW40K | Custom | CSM | Casambi | CBTM | ||||
| 11091 | 119 | 5700K | CW57K | ||||||||
| 2700K-5700K | TW | ||||||||||
| iPro P 224 | 96W | WW27K | CRI80 | 52°(WD) | SWH | On/Off | |||||
