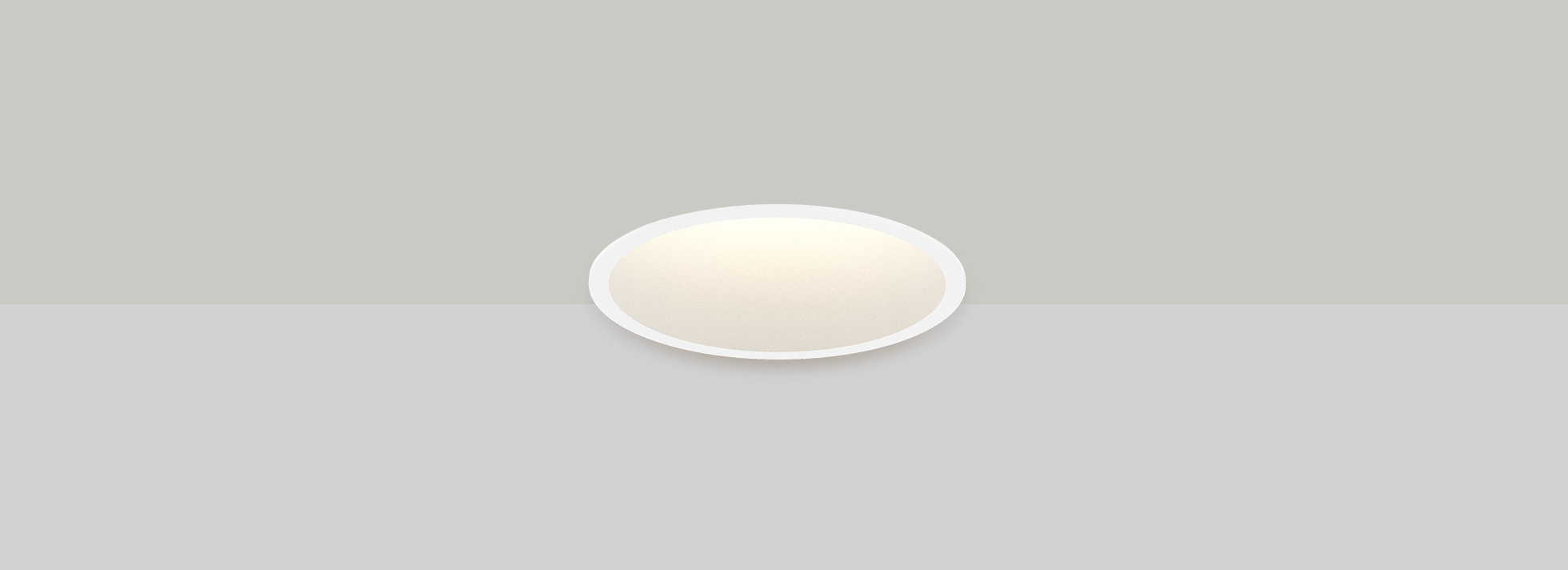

iKapp Wash 50 | 15W

Product Reference

Environment Indoor

Installation Ceiling Recess

Construction & Materials

Housing Die Cast Aluminium

Primary Lens PMMA

Primary Reflector PC metallised

Secondary Reflector -

Body Finish White,Black,Custom

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed Asymmetric

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Remote

LED Power Watts 12.6W

System Power Watts 14.5W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted CREE COB LED 36Vdc/350mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Download Data Sheet

Back to iKapp family
Optional

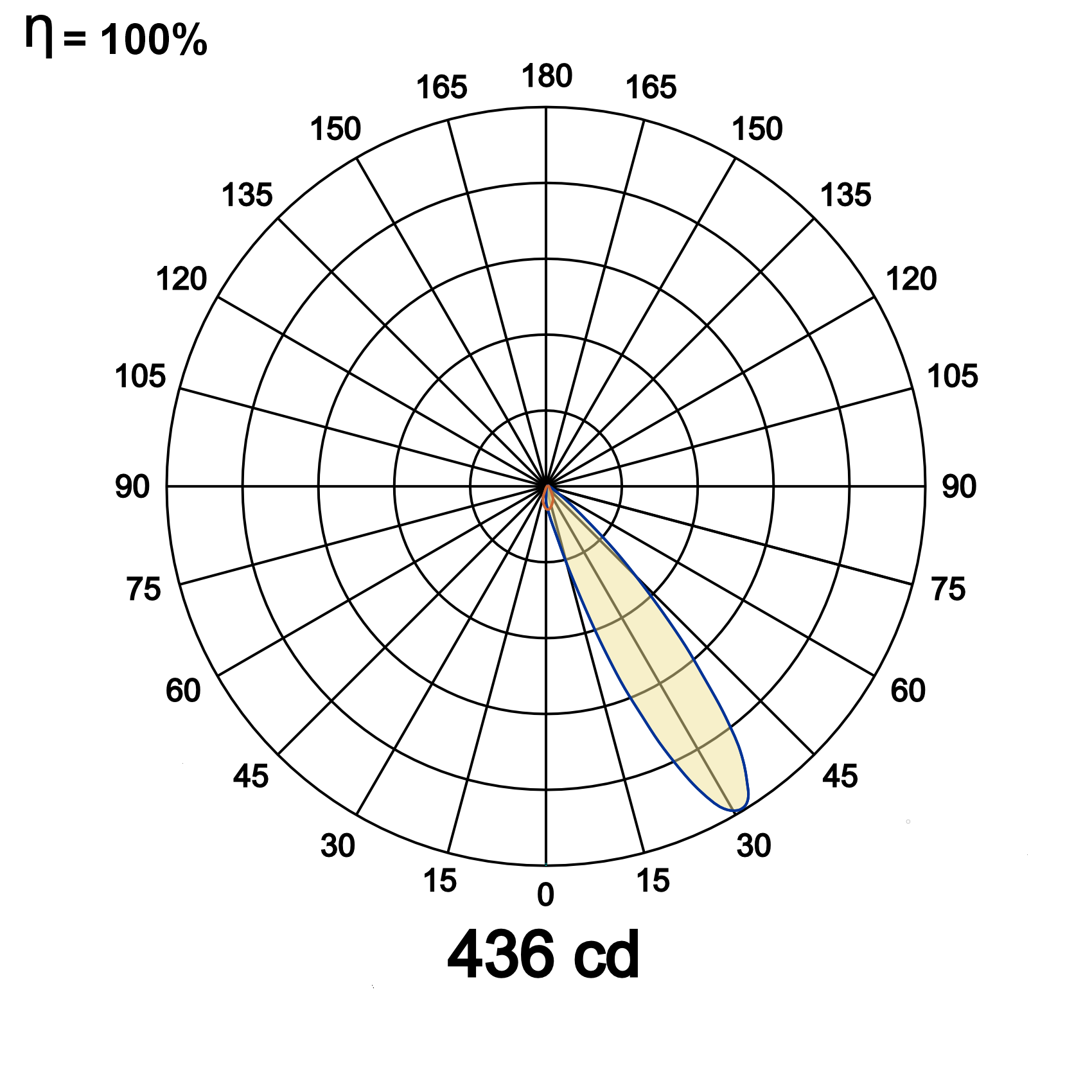

Light Distribution

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
iKapp Wash 50 15W WW27K CRI80 SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
iKapp Wash 50 15W 1566 108 2700K WW27K CRI80 White SWH Non Dimmable On/Off
1610 111 3000K WW30K CRI90 Black SBL Phase Dimmable PDIM
1711 118 4000K NW40K Custom CSM Dali Dimmable DDIM
1755 121 5700K CW57K Bluetooth Dimmable BTTM
2700K-5700K TW Casambi CBTM
Warm to Dim W2D
iKapp Wash 50 15W WW27K CRI80 SWH On/Off
