Product Reference
Environment Indoor
Installation Ceiling Recess
Construction & Materials
Housing Die Cast Aluminium
Primary Lens PMMA
Primary Reflector PC metallised
Secondary Reflector -
Body Finish White,Black,Custom
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Die cast Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Fixed
Tilt No
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Remote
LED Power Watts 12.5W
System Power Watts 14.4
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 3 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI80,CRI90
Led Type COB
LED Fitted CREE COB LED 36Vdc/350mA
Controls
Standard Switchable On/Off
Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable
.png)

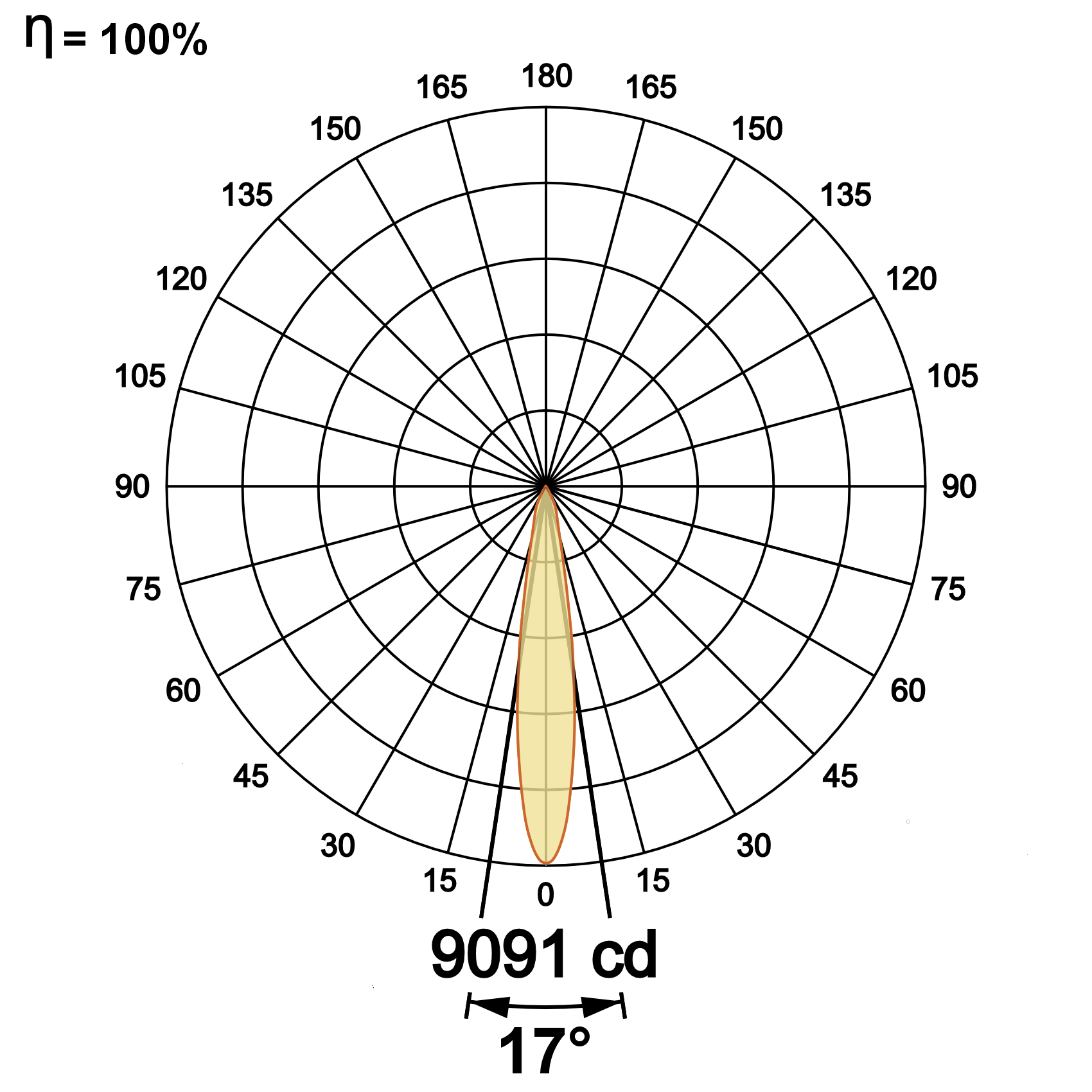

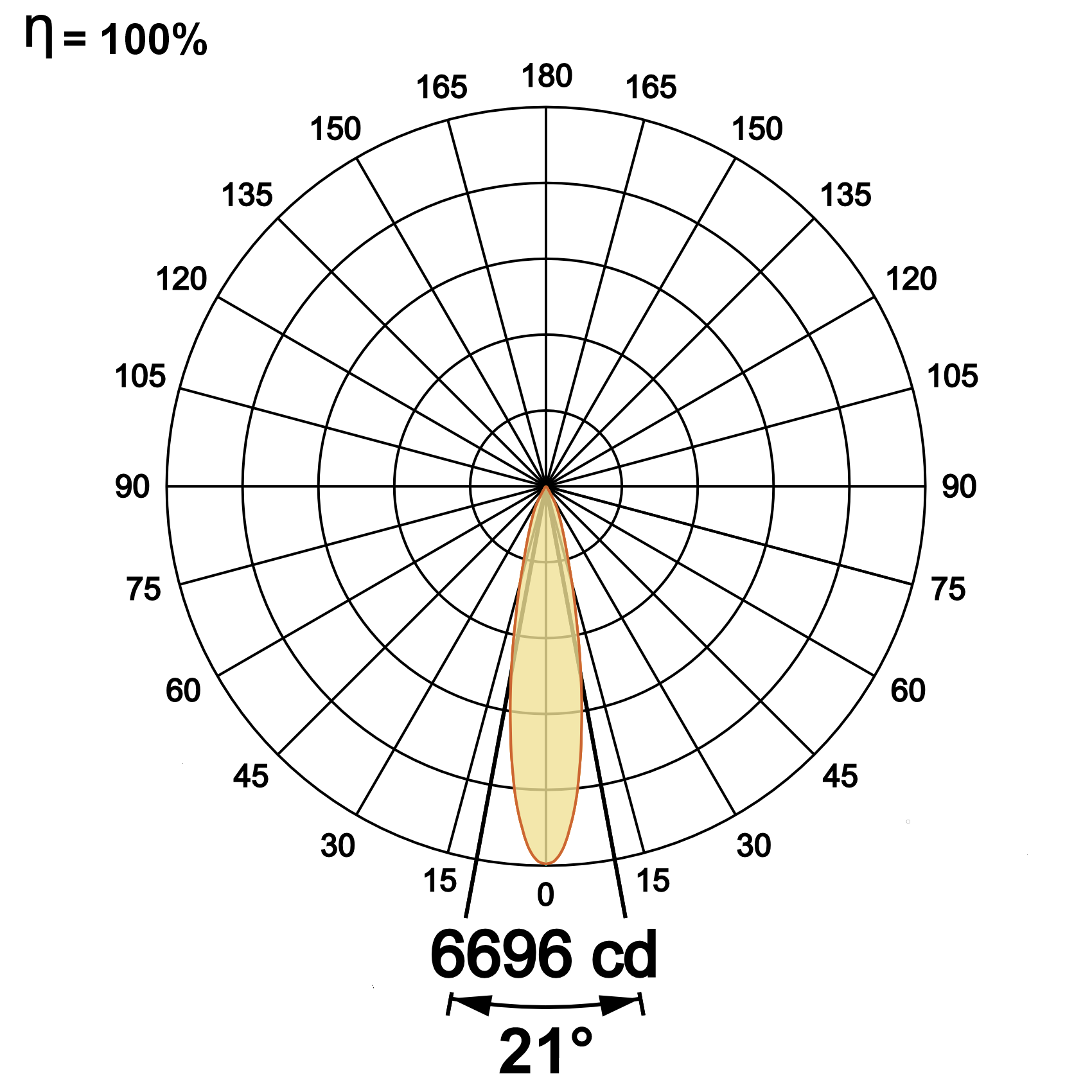

Light Distribution
Ordering Details
Code Example:
| Name | Watt | CCT | CRI | Angle | Finish | Control |
|---|---|---|---|---|---|---|
| iKapp 50 | 15W | WW27K | CRI80 | 17°(SS) | SWH | On/Off |
Select one from each column with highlighted values to create the ordering code
| NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
|---|---|---|---|---|---|---|---|---|---|---|---|
| iKapp 50 | 15W | 1382 | 96 | 2700K | WW27K | CRI80 | 17°(SS) | White | SWH | Non Dimmable | On/Off |
| 1426 | 99 | 3000K | WW30K | CRI90 | 21°(MD) | Black | SBL | Phase Dimmable | PDIM | ||
| 1512 | 105 | 4000K | NW40K | 34°(WD) | Custom | CSM | Dali Dimmable | DDIM | |||
| 1555 | 108 | 5700K | CW57K | Bluetooth Dimmable | BTTM | ||||||
| 2700K-5700K | TW | Casambi | CBTM | ||||||||
| Warm to Dim | W2D | ||||||||||
| iKapp 50 | 15W | WW27K | CRI80 | 17°(SS) | SWH | On/Off | |||||
