Product Reference
Environment Outdoor
Installation Ceiling Surface,Floor Surface,Wall Surface,Wall Surface
Construction & Materials
Housing Extruded and Die Cast Aluminium
Primary Lens PMMA,Tempered Glass Visor
Primary Reflector -
Secondary Reflector -
Body Finish Anodised Aluminium
Diffuser -
Antiglare Baffle -
Thermal Management
Heat Sink Material Aluminium
Cooling Technique Passive Cooling
Optical System
Beam Direction Adjustable
Tilt Yes
Swivel No
Electrical System
Driven with Constant Current Driver
Input Voltage/Hz 220V- 240V/50-60Hz
Control Gear Included
Mounting Integral
LED Power Watts 8.5W
System Power Watts 9.8W
Operating Voltage Vin 220-240 Vac
Power Factor p.f. > 0.95
LED Technology
Binning 2 Step MacAdam
LED Life Time @ L70/B10 >50000 hours
Colour Rendering (CRI) CRI90
Led Type SMD high power
LED Fitted -
Controls
Standard Switchable On/Off
Optional Non Dimmable

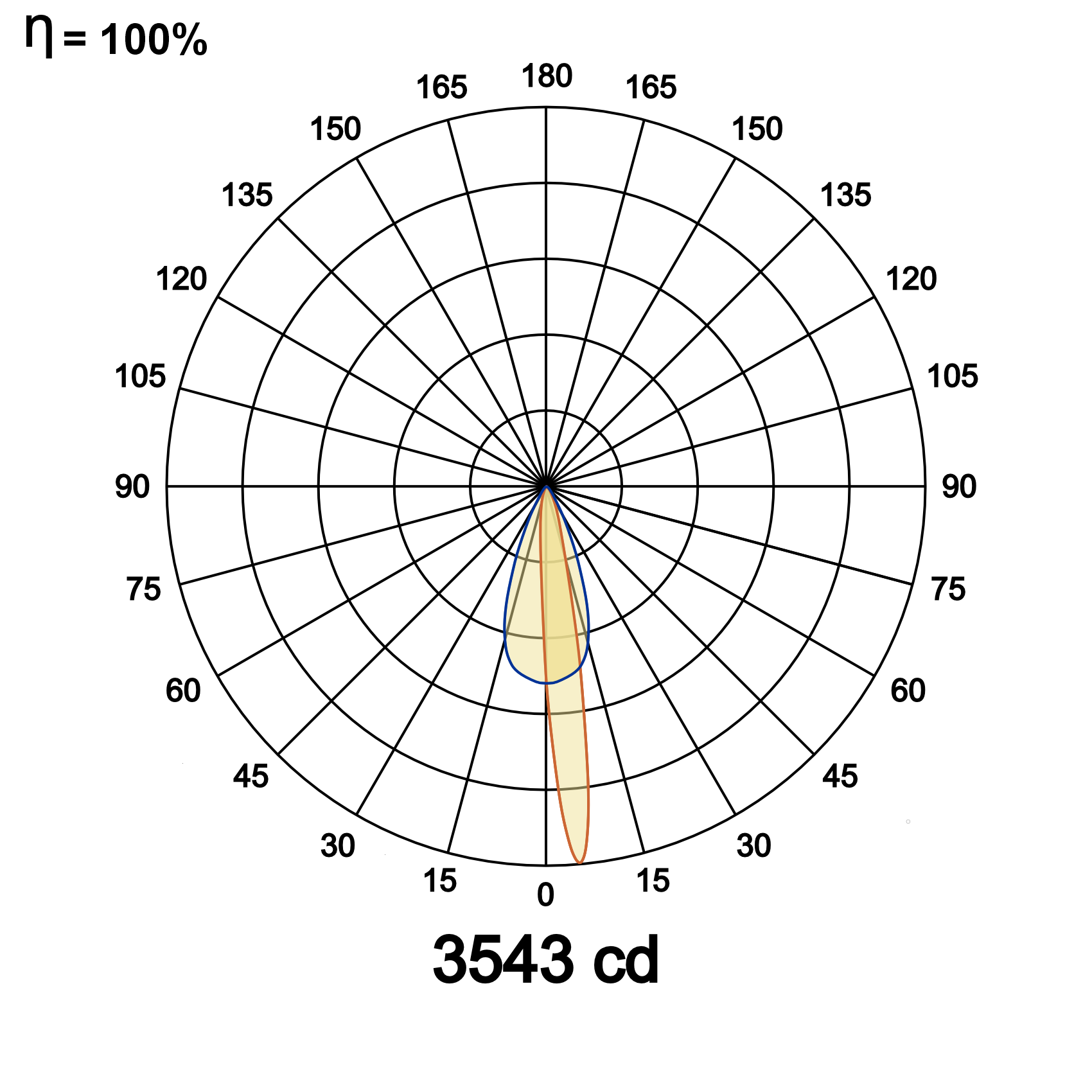

Light Distribution
Ordering Details
Code Example:
Name | Watt | CCT | CRI | Angle | Finish | Control |
---|---|---|---|---|---|---|
iGraze 30 | 10W | WW27K | CRI90 | 21°x9° REC | AL | On/Off |
Select one from each column with highlighted values to create the ordering code
NAME | WATT | LUMEN | EFFICACY | CCT | CRI | ANGLE | FINISH | CONTROL | |||
---|---|---|---|---|---|---|---|---|---|---|---|
iGraze 30 | 10W | 676 | 69 | 2700K | WW27K | CRI90 | 21°x9° REC | Anodised Aluminium | AL | Non Dimmable | On/Off |
706 | 72 | 3000K | WW30K | ||||||||
764 | 78 | 4000K | NW40K | ||||||||
794 | 81 | 5700K | CW57K | ||||||||
iGraze 30 | 10W | WW27K | CRI90 | 21°x9° REC | AL | On/Off |
