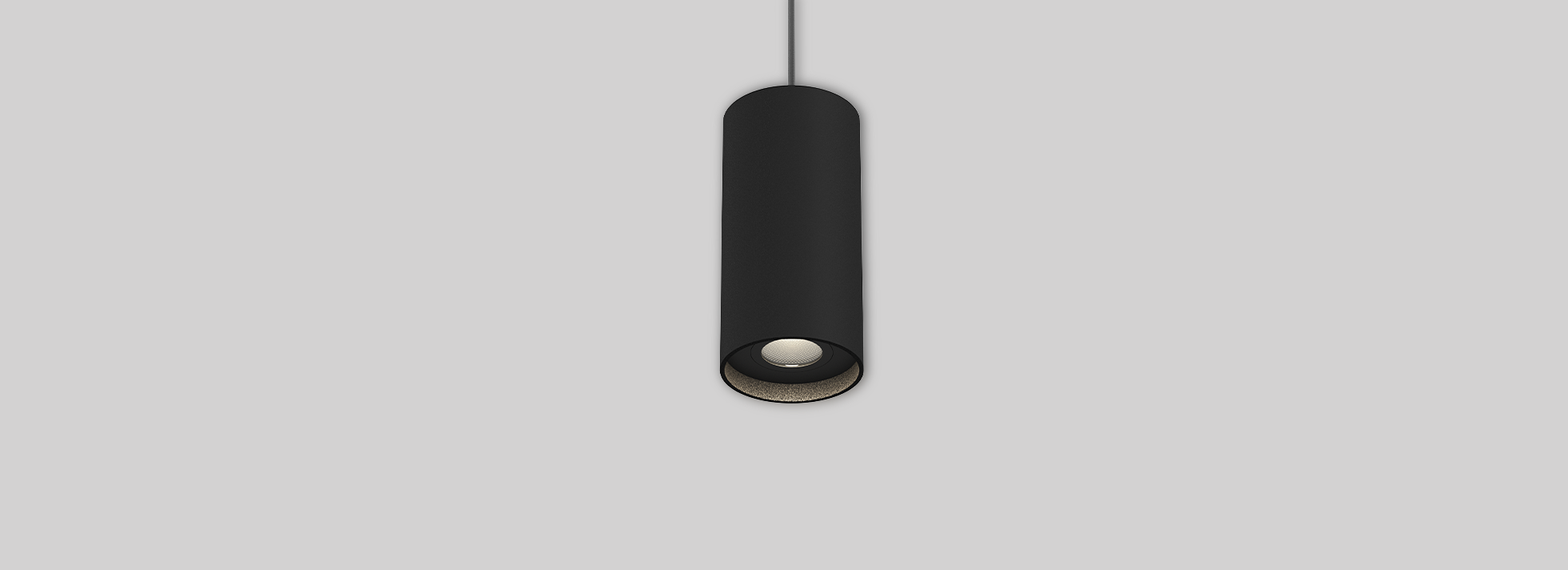

iBarrel P | 10W

Product Reference

Environment Indoor

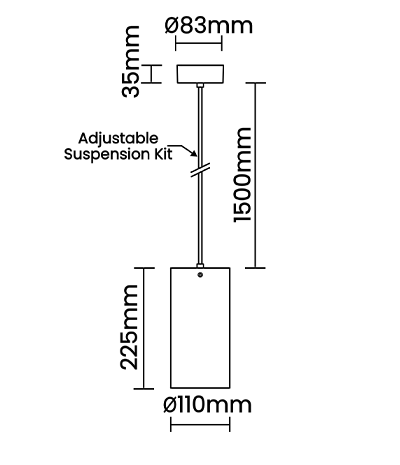

Installation Ceiling Suspended

Construction & Materials

Housing Aluminium

Primary Lens PMMA

Primary Reflector PC metallised

Secondary Reflector -

Body Finish White,Black,Custom

Diffuser -

Antiglare Baffle -

Thermal Management

Heat Sink Material Die cast Aluminium

Cooling Technique Passive Cooling

Optical System

Beam Direction Fixed

Tilt No

Swivel No

Electrical System

Driven with Constant Current Driver

Input Voltage/Hz 220V- 240V/50-60Hz

Control Gear Included

Mounting Integral

LED Power Watts 9.0W

System Power Watts 10.4W

Operating Voltage Vin 220-240 Vac

Power Factor p.f. > 0.95

LED Technology

Binning 3 Step MacAdam

LED Life Time @ L70/B10 >50000 hours

Colour Rendering (CRI) CRI80,CRI90

Led Type COB

LED Fitted CREE COB LED 36Vdc/250mA

Controls

Standard Switchable On/Off

Optional PDIM,DDIM,BTTM,CASAMBI,Non Dimmable

Ordering Details

Code Example:

Name Watt CCT CRI Angle Finish Control
iBarrel P 10W WW27K CRI80 17°(SS) SWH On/Off

Select one from each column with highlighted values to create the ordering code

NAME WATT LUMEN EFFICACY CCT CRI ANGLE FINISH CONTROL
iBarrel P 10W 957 92 2700K WW27K CRI80 17°(SS) White SWH Non Dimmable On/Off
1040 100 3000K WW30K CRI90 21°(MD) Black SBL Phase Dimmable PDIM
1102 106 4000K NW40K 35°(WD) Custom CSM Dali Dimmable DDIM
1134 109 5700K CW57K Bluetooth Dimmable BTTM
2700K-5700K TW Casambi CBTM
Warm to Dim W2D
iBarrel P 10W WW27K CRI80 17°(SS) SWH On/Off
